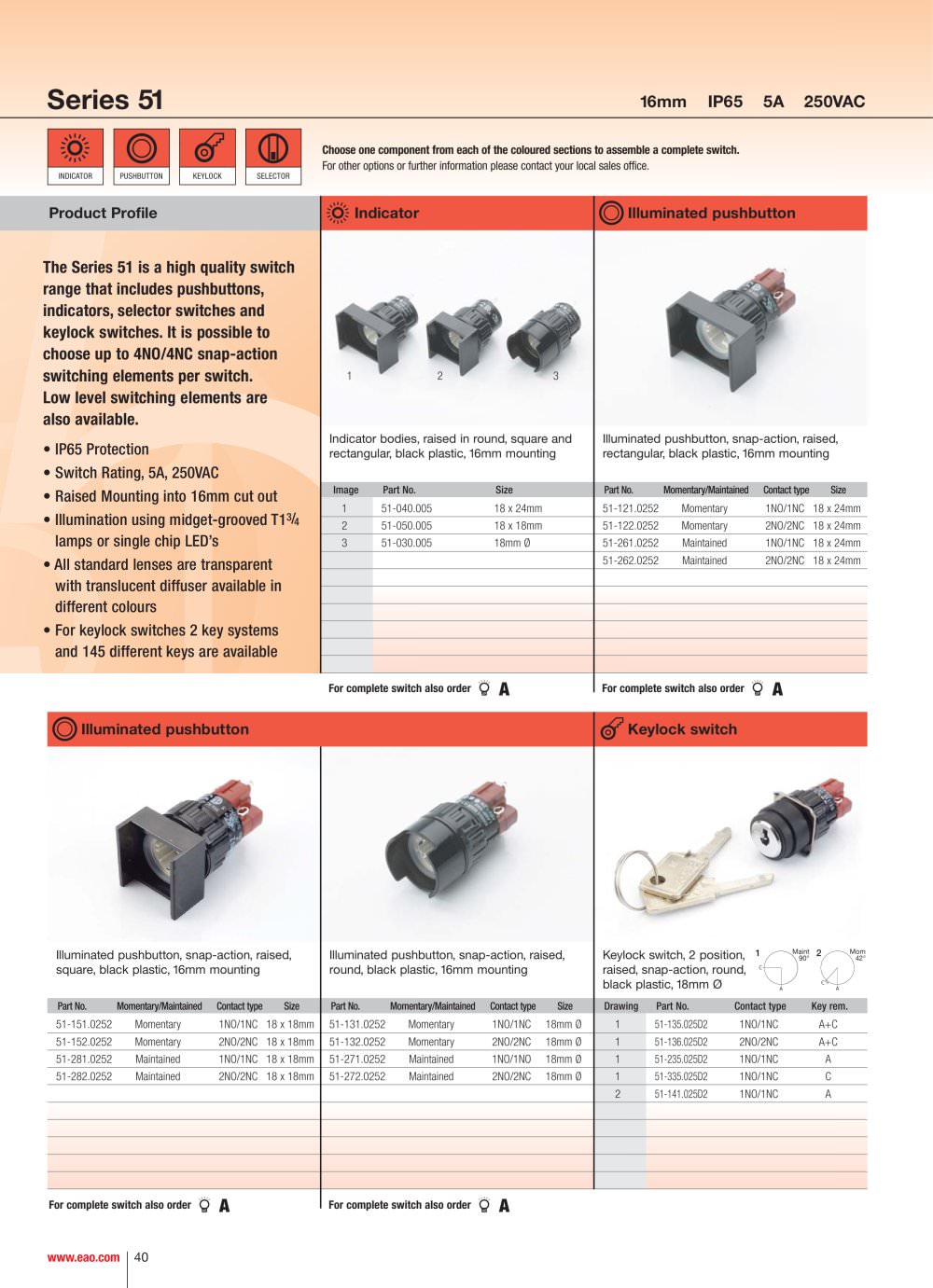

Series 51

16mm IP65 5A 250VAC

Choose one component from each of the coloured sections to assemble a complete switch.

For other options or further information please contact your local sales office.

INDICATOR

PUSHBUTTON

KEYLOCK

SELECTOR


Product Profile	CO) Indicator		(Q) Illuminated pushbutton
The Series 51 is a high quality switch range that includes pushbuttons, indicators, selector switches and keylock switches. It is possible to choose up to 4N0/4NC snap-action switching elements per switch. Low level switching elements are also available. • IP65 Protection • Switch Rating, 5A, 250VAC	Indicator bodies, raised in round, square and rectangular, black plastic, 16mm mounting		Illuminated pushbutton, snap-action, raised, rectangular, black plastic, 16mm mounting
• Raised Mounting into 16mm cut out • Illumination using midget-grooved T1³/4 lamps or single chip LED's • All standard lenses are transparent with translucent diffuser available in different colours • For keylock switches 2 key systems and 145 different keys are available	Image	Part No. Size	Part No. Momentary/Maintained Contact type Size
	1	51-040.005 18 x 24mm	51-121.0252 Momentary 1NO/1NC 18 x 24mm
	2	51-050.005 18 x 18mm	51-122.0252 Momentary 2NO/2NC 18 x 24mm
	3	51-030.005 18mm 0	51-261.0252 Maintained 1NO/1NC 18 x 24mm
			51-262.0252 Maintained 2NO/2NC 18 x 24mm






For complete switch also order 0 A			For complete switch also order Q A


(Q) Illuminated pushbutton	40 Illuminated pushbutton, snap-action, raised, round, black plastic, 16mm mounting	Keylock switch
Illuminated pushbutton, snap-action, raised, square, black plastic, 16mm mounting		Keylock switch, 2 position, 1 /-^5$ raised, snap-action, round, 4—i ) \ a ) black plastic, 18mm 0 )r T
Part No. Momentary/Maintained Contact type Size	Part No. Momentary/Maintained Contact type Size	Drawing	Part No. Contact type Key rem.
51-151.0252 Momentary 1NO/1NC 18 x 18mm	51-131.0252 Momentary 1NO/1NC 18mm 0	1	51-135.025D2 1NO/1NC A+C
51-152.0252 Momentary 2NO/2NC 18 x 18mm	51-132.0252 Momentary 2NO/2NC 18mm 0	1	51-136.025D2 2NO/2NC A+C
51-281.0252 Maintained 1NO/1NC 18 x 18mm	51-271.0252 Maintained 1NO/1NO 18mm 0	1	51-235.025D2 1NO/1NC A
51-282.0252 Maintained 2NO/2NC 18 x 18mm	51-272.0252 Maintained 2NO/2NC 18mm 0	1	51-335.025D2 1NO/1NC C
		2	51-141.025D2 1NO/1NC A





For complete switch also order Q A	For complete switch also order Q A

www.eao.com I 40
