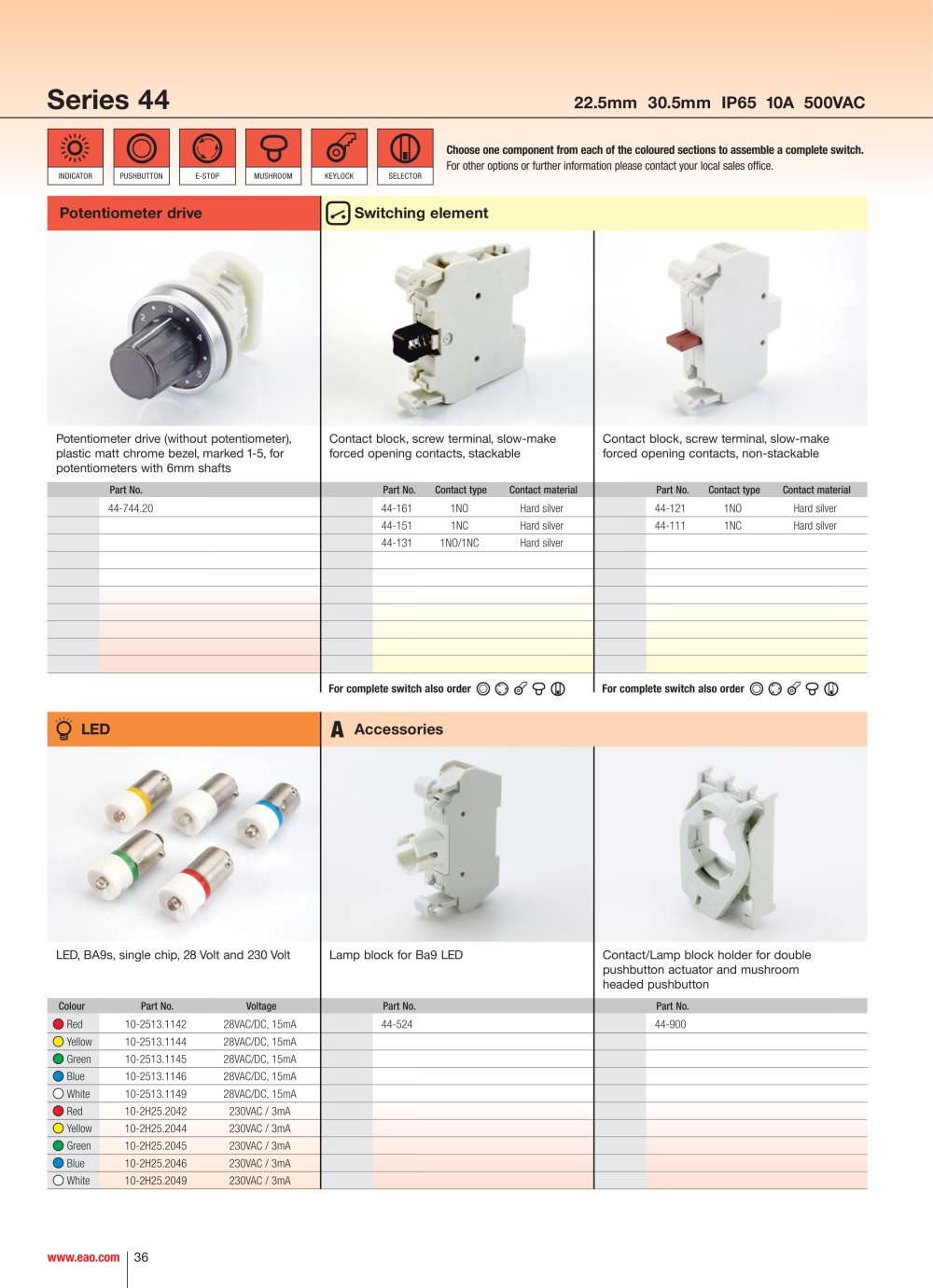

Series 44

22.5mm 30.5mm IP65 10A500VAC

Choose one component from each of the coloured sections to assemble a complete switch. For other options or further information please contact your local sales office.

INDICATOR PUSHBUTTON E-STOP MUSHROOM KEYLOCK SELECTOR

Potentiometer driveSwitching element

Potentiometer drive (without potentiometer),plastic matt chrome bezel,marked 1-5,forpotentiometers with 6mm shafts Contact block,screw terminal,slow-makeforced opening contacts,stackable Contact block,screw terminal,slow-makeforced opening contacts,non-stackable

Part No. Part No.Contact typeContact material Part No.Contact typeContact material 44-744.20 44-1611NOHard silver 44-1211NOHard silver 44-1511NCHard silver 44-1111NCHard silver 44-1311NO/1NCHard silver For complete switch also order For complete switch also order

LED

A

Accessories

LED,BA9s,single chip,28 Volt and 230 Volt Lamp block for Ba9 LED Contact/Lamp block holder for double pushbutton actuator and mushroom headed pushbutton

ColourPart No.Voltage Part No. Part No. RedYellowGreenBlue White RedYellowGreen Blue White 10-2513.114228VAC/DC,15mA 44-524 44-900 10-2513.114428VAC/DC,15mA 10-2513.114528VAC/DC,15mA 10-2513.114628VAC/DC,15mA 10-2513.114928VAC/DC,15mA 10-2H25.2042230VAC / 3mA 10-2H25.2044230VAC / 3mA 10-2H25.2045230VAC / 3mA 10-2H25.2046230VAC / 3mA 10-2H25.2049230VAC / 3mA

www.eao.com 36
