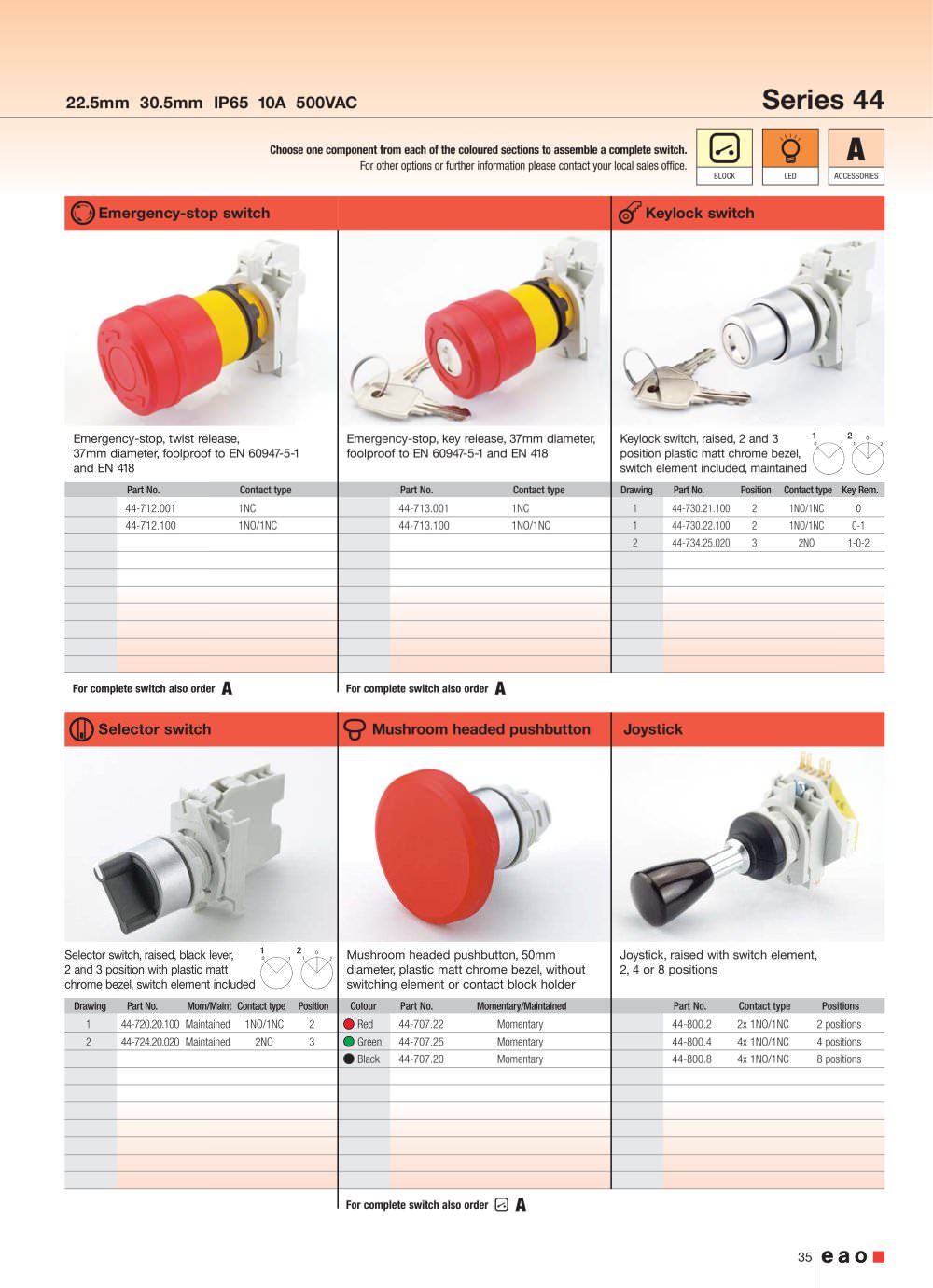

Series 44

22.5mm 30.5mm IP65 10A 500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

For other options or further information please contact your local sales office.

BLOCK

LED

ACCESSORIES


Emergency-stop switch			Emergency-stop, key release, 37mm diameter, foolproof to EN 60947-5-1 and EN 418	$ Keylock switch
! Emerg 37mm and E	jency-stop, twist rele diameter, foolproof t N 418	ase, o EN 60947-5-1		*^ t* Keylock switch, raised, 2 and 3 ^\_ ²>^-r^<₂ position plastic matt chrome bezel, i^X/t (\/) switch element included, maintained
Part No. Contact type			Part No. Contact type	Drawing	Part No. Position Contact type Key Rem.
44-712.001 1NC			44-713.001 1NC	1	44-730.21.100 2 1NO/1NC 0
44-712.100 1NO/1NC			44-713.100 1NO/1NC	1	44-730.22.100 2 1NO/1NC 0-1
				2	44-734.25.020 3 2NO 1-0-2







For complete switch also order A			For complete switch also order A


(^) Selector switch		Mushroom headed pushbutton		Joystick
0 Selector switch, raised, black lever, ^\ , ², ? ₂2 and 3 position with plastic matt [^%"^/^) ) chrome bezel, switch element included		Mushroom headed pushbutton, 50mm diameter, plastic matt chrome bezel, without switching element or contact block holder		Joystick, raised with switch element, 2, 4 or 8 positions
Drawing	Part No. Mom/Maint Contact type Position	Colour	Part No. Momentary/Maintained	Part No. Contact type Positions
1	44-720.20.100 Maintained 1NO/1NC 2	ORed	44-707.22 Momentary	44-800.2 2x 1NO/1NC 2 positions
2	44-724.20.020 Maintained 2NO 3	O Green	44-707.25 Momentary	44-800.4 4x 1NO/1NC 4 positions
		• Black	44-707.20 Momentary	44-800.8 4x 1NO/1NC 8 positions







		For complete switch also order 0 A
