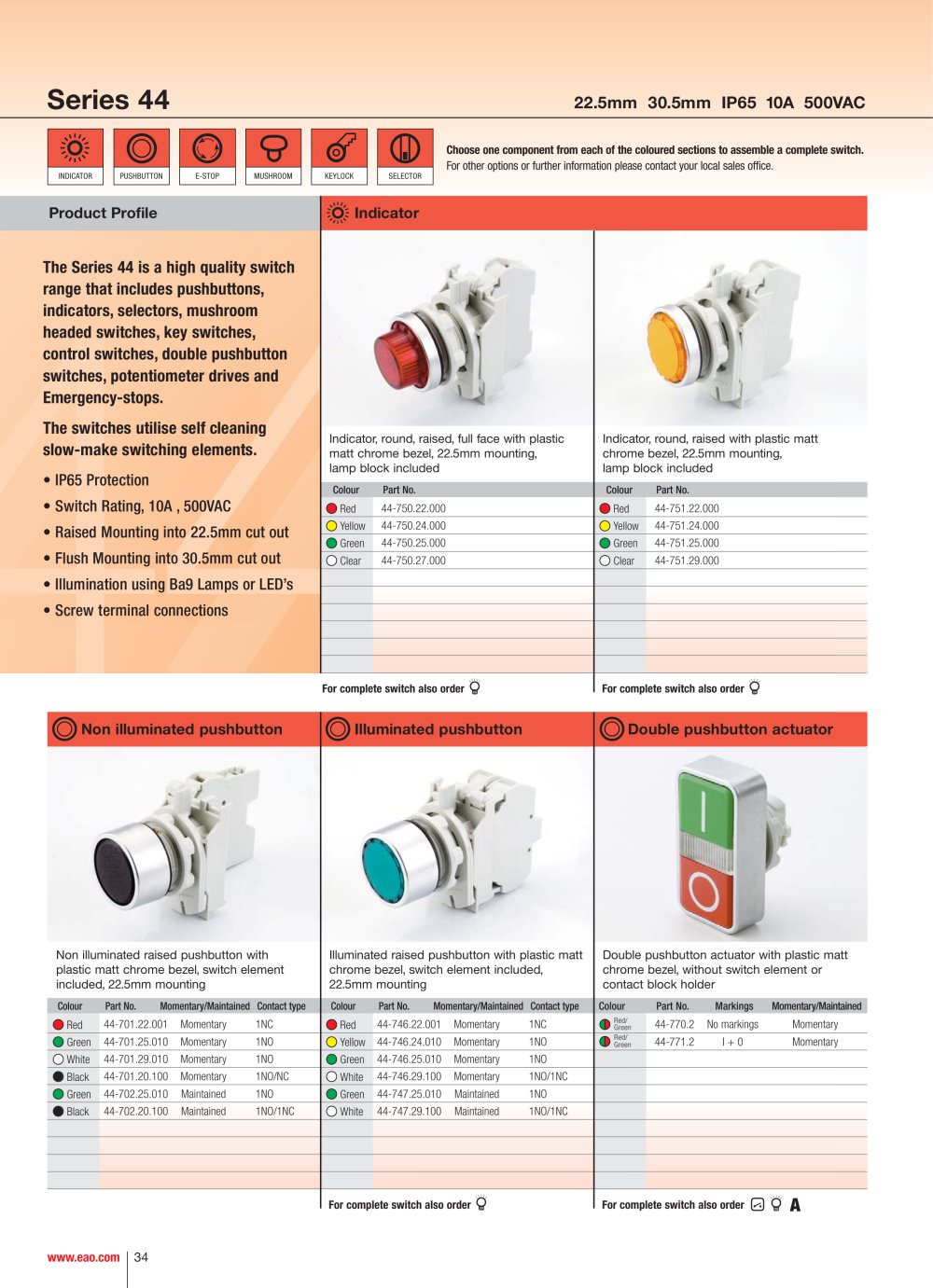

Series 44

22.5mm 30.5mm IP65 10A 500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

For other options or further information please contact your local sales office.

INDICATOR

PUSHBUTTON

E-STOP

MUSHROOM

KEYLOCK

SELECTOR


Product Profile	CO) Indicator		w Indicator, round, raised with plastic matt chrome bezel, 22.5mm mounting, lamp block included
The Series 44 is a high quality switch range that includes pushbuttons, indicators, selectors, mushroom headed switches, key switches, control switches, double pushbutton switches, potentiometer drives and Emergency-stops. The switches utilise self cleaning slow-make switching elements. • IP65 Protection	Indicator, round, raised, full face with plastic matt chrome bezel, 22.5mm mounting, lamp block included
	Colour	Part No.	Colour	Part No.
• Switch Rating, 10A , 500VAC • Raised Mounting into 22.5mm cut out • Flush Mounting into 30.5mm cut out • Illumination using Ba9 Lamps or LED's • Screw terminal connections	• Red	44-750.22.000	ORed	44-751.22.000
	O Yellow	44-750.24.000	O Yellow	44-751.24.000
	# Green	44-750.25.000	O Green	44-751.25.000
	O Clear	44-750.27.000	O Clear	44-751.29.000






For complete switch also order Q			For complete switch also order Q


(Q) Non illuminated pushbutton		(Q) Illuminated pushbutton		(Q) Double pushbutton actuator
Non illuminated raised pushbutton with plastic matt chrome bezel, switch element included, 22.5mm mounting		Illuminated raised pushbutton with plastic matt chrome bezel, switch element included, 22.5mm mounting		i Double pushbutton actuator with plastic matt chrome bezel, without switch element or contact block holder
Colour	Part No. Momentary/Maintained Contact type	Colour	Part No. Momentary/Maintained Contact type	Colour	Part No. Markings Momentary/Maintained
ORed	44-701.22.001 Momentary 1NC	ORed	44-746.22.001 Momentary 1NC	/■p. Red/ \1/ Green	44-770.2 No markings Momentary
O Green	44-701.25.010 Momentary 1NO	O Yellow	44-746.24.010 Momentary 1NO	/T\ Red/ \U Green	44-771.2 I + 0 Momentary
O White	44-701.29.010 Momentary 1NO	O Green	44-746.25.010 Momentary 1NO
• Black	44-701.20.100 Momentary 1NO/NC	O White	44-746.29.100 Momentary 1NO/1NC
O Green	44-702.25.010 Maintained 1NO	O Green	44-747.25.010 Maintained 1NO
• Black	44-702.20.100 Maintained 1NO/1NC	O White	44-747.29.100 Maintained 1NO/1NC




		For complete switch also order Q		For complete switch also order Q Q A
