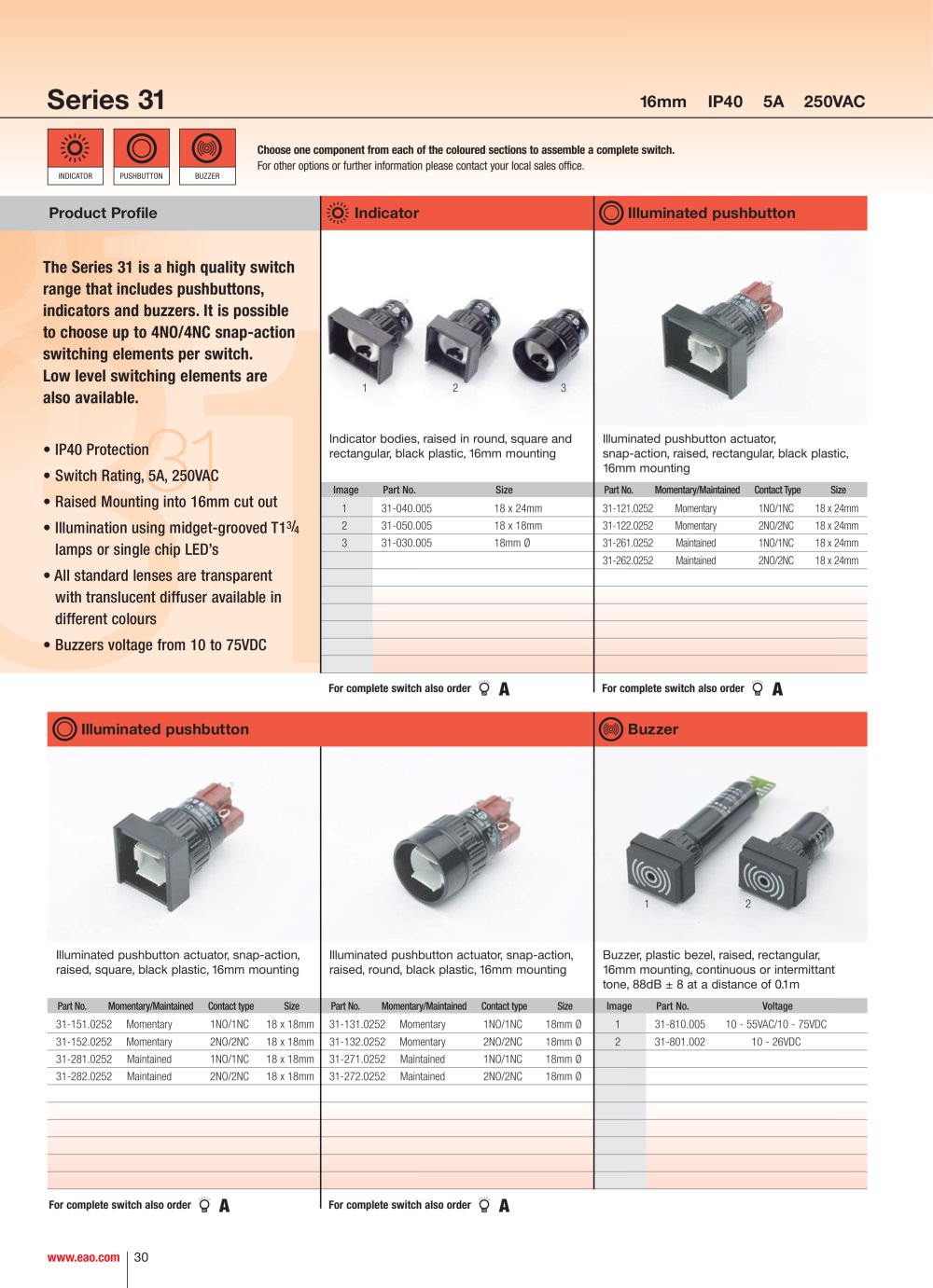

Series 31

16mm IP40 5A 250VAC

Choose one component from each of the coloured sections to assemble a complete switch.

For other options or further information please contact your local sales office.

INDICATOR

PUSHBUTTON

BUZZER


Product Profile	CO) Indicator		(Q) Illuminated pushbutton
The Series 31 is a high quality switch range that includes pushbuttons, indicators and buzzers. It is possible to choose up to 4N0/4NC snap-action switching elements per switch. Low level switching elements are also available. • IP40 Protection • Switch Rating, 5A, 250VAC	12 3 Indicator bodies, raised in round, square and rectangular, black plastic, 16mm mounting		Illuminated pushbutton actuator, snap-action, raised, rectangular, black plastic, 16mm mounting
	Image	Part No. Size	Part No. Momentary/Maintained Contact Type Size
• Raised Mounting into 16mm cut out • Illumination using midget-grooved T1³/4 lamps or single chip LED's • All standard lenses are transparent with translucent diffuser available in different colours • Buzzers voltage from 10 to 75VDC	1	31-040.005 18 x 24mm	31-121.0252 Momentary 1NO/1NC 18 x 24mm
	2	31-050.005 18 x 18mm	31-122.0252 Momentary 2NO/2NC 18 x 24mm
	3	31-030.005 18mm 0	31-261.0252 Maintained 1NO/1NC 18 x 24mm
			31-262.0252 Maintained 2NO/2NC 18 x 24mm






For complete switch also order 0 A			For complete switch also order Q A


(Q) Illuminated pushbutton	Illuminated pushbutton actuator, snap-action, raised, round, black plastic, 16mm mounting	(g) Buzzer
^^^^^^ i w Illuminated pushbutton actuator, snap-action, raised, square, black plastic, 16mm mounting		₁₂ Buzzer, plastic bezel, raised, rectangular, 16mm mounting, continuous or intermittant tone, 88dB ±8 at a distance of 01m
Part No. Momentary/Maintained Contact type Size	Part No. Momentary/Maintained Contact type Size	Image	Part No. Voltage
31-151.0252 Momentary 1NO/1NC 18 x 18mm	31-131.0252 Momentary 1NO/1NC 18mm 0	1	31-810.005 10 - 55VAC/10 - 75VDC
31-152.0252 Momentary 2NO/2NC 18 x 18mm	31-132.0252 Momentary 2NO/2NC 18mm 0	2	31-801.002 10 - 26VDC
31-281.0252 Maintained 1NO/1NC 18 x 18mm	31-271.0252 Maintained 1NO/1NC 18mm 0
31-282.0252 Maintained 2NO/2NC 18 x 18mm	31-272.0252 Maintained 2NO/2NC 18mm 0






For complete switch also order Q A	For complete switch also order Q A

www.eao.com I 30
