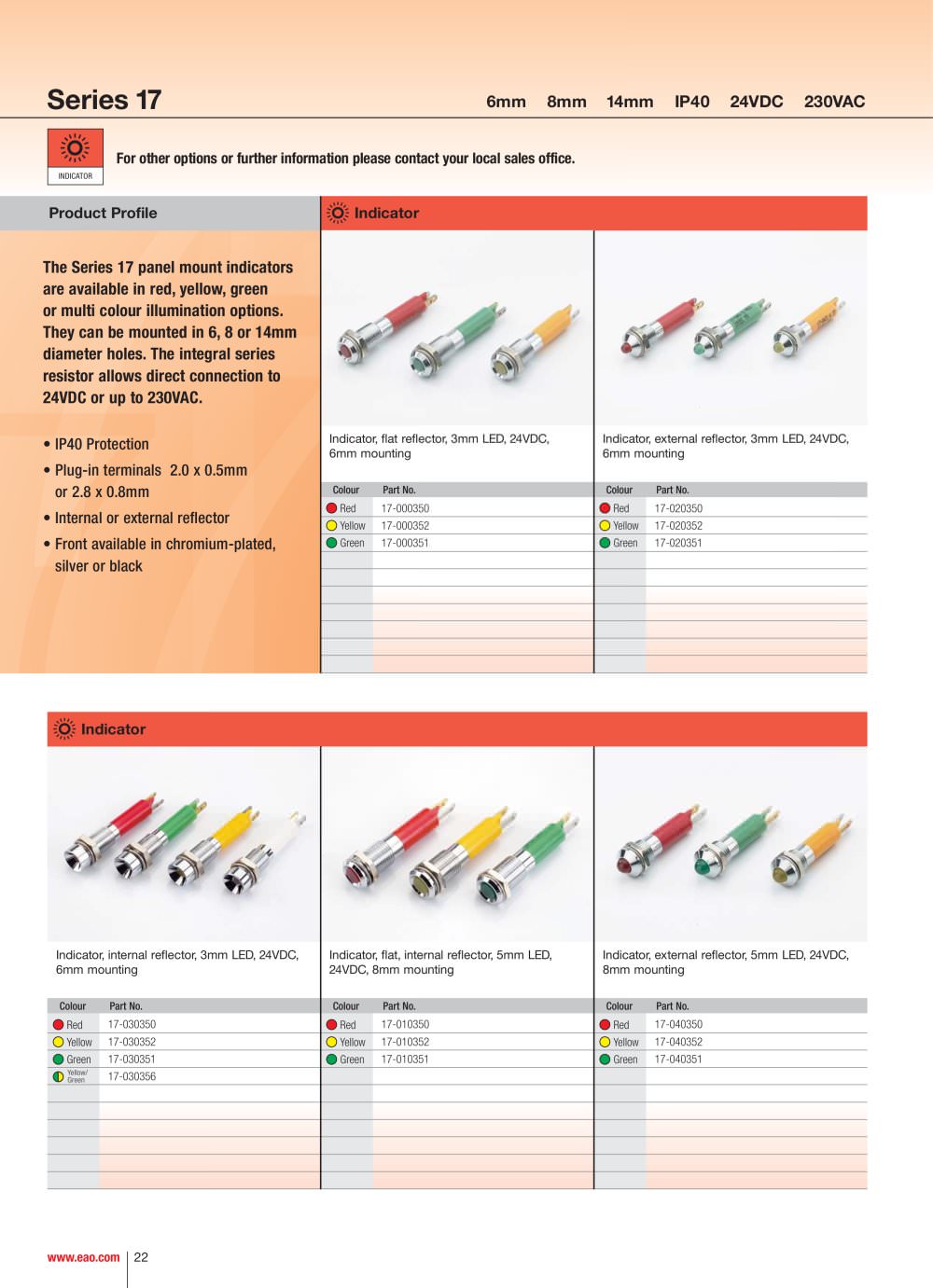

Series 17 6mm 8mm 14mm IP40 24VDC 230VAC
For other options or further information please contact your local sales office.
INDICATORProduct Profile Indicator
The Series 17 panel mount indicatorsare available in red,yellow,green or multi colour illumination options. They can be mounted in 6,8 or 14mm diameter holes.The integral series resistor allows direct connection to 24VDC or up to 230VAC.
• IP40 Protection• Plug-in terminals 2.0 x 0.5mm or 2.8 x 0.8mm• Internal or external reflector • Front available in chromium-plated,silver or black
Indicator,flat reflector,3mm LED,24VDC,6mm mounting Indicator,external reflector,3mm LED,24VDC, 6mm mounting
ColourPart No. ColourPart No. RedYellow Green 17-000350 Red Yellow Green 17-020350 17-000352 17-020352 17-000351 17-020351Indicator
Indicator,internal reflector,3mm LED,24VDC, 6mm mounting Indicator,flat,internal reflector,5mm LED, 24VDC,8mm mounting Indicator,external reflector,5mm LED,24VDC, 8mm mounting
ColourPart No. ColourPart No. ColourPart No. Red Yellow Green 17-030350 RedYellow Green 17-010350 Red Yellow Green 17-040350 17-030352 17-010352 17-040352 17-030351 17-010351 17-040351Yellow/Green 17-030356
