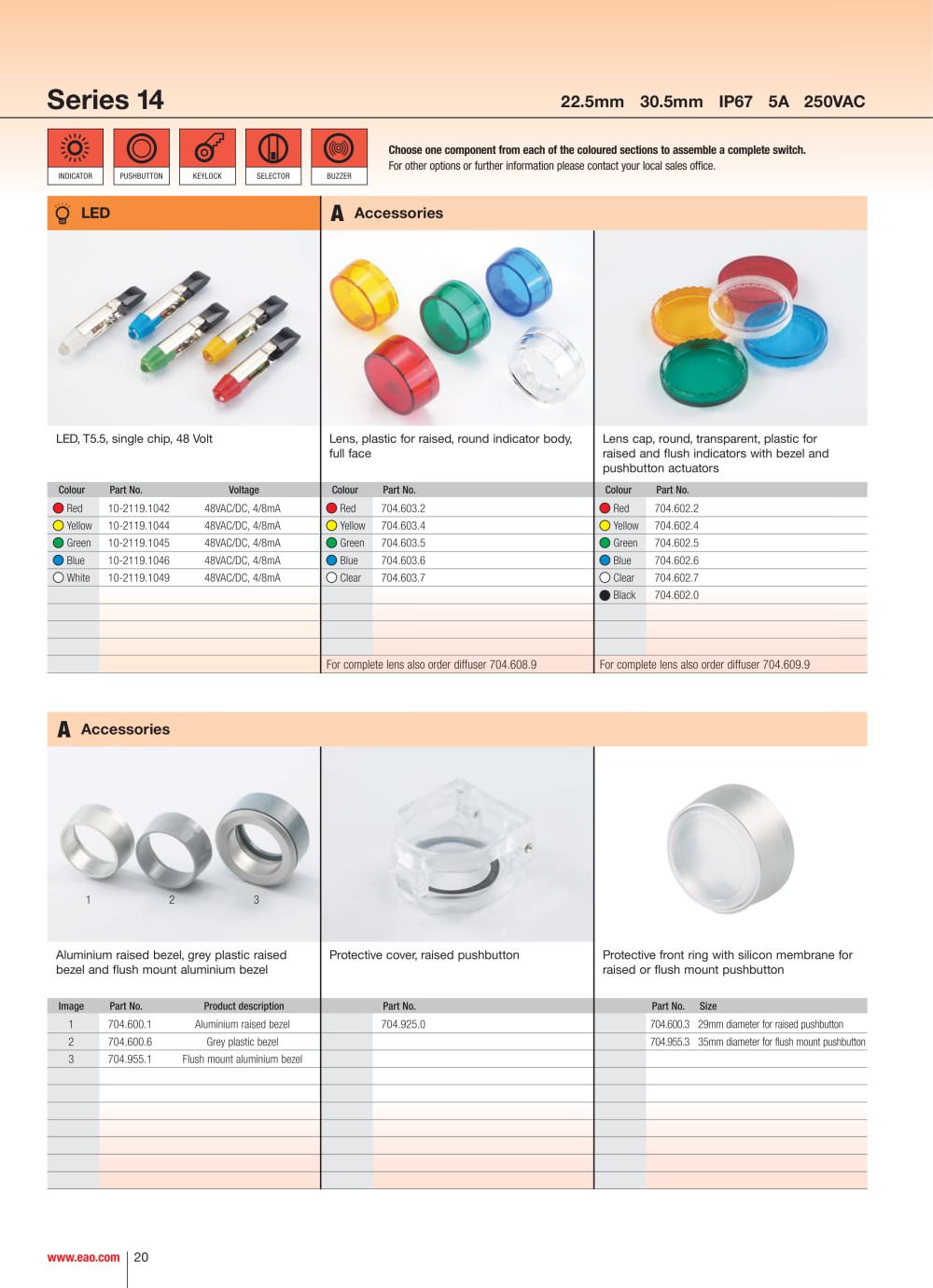

Series 14

22.5mm 30.5mm IP67 5A250VAC

Choose one component from each of the coloured sections to assemble a complete switch. For other options or further information please contact your local sales office.

INDICATOR PUSHBUTTON KEYLOCK SELECTOR BUZZER

LED

A

Accessories

LED,T5.5,single chip,48 Volt Lens,plastic for raised,round indicator body,full face Lens cap,round,transparent,plastic for raised and flush indicators with bezel and pushbutton actuators

ColourPart No.Voltage ColourPart No. ColourPart No. RedYellow GreenBlueWhite 10-2119.104248VAC/DC,4/8mA Red Yellow GreenBlueClear 704.603.2 Red Yellow GreenBlueClear Black 704.602.2 10-2119.104448VAC/DC,4/8mA 704.603.4 704.602.4 10-2119.104548VAC/DC,4/8mA 704.603.5 704.602.5 10-2119.104648VAC/DC,4/8mA 704.603.6 704.602.6 10-2119.104948VAC/DC,4/8mA 704.603.7 704.602.7 704.602.0

For complete lens also order diffuser 704.608.9For complete lens also order diffuser 704.609.9

A

Accessories

231

Aluminium raised bezel,grey plastic raised bezel and flush mount aluminium bezel Protective cover,raised pushbutton Protective front ring with silicon membrane forraised or flush mount pushbutton

ImagePart No.Product description Part No. Part No.Size 1704.600.1Aluminium raised bezel 704.925.0 704.600.329mm diameter for raised pushbutton 2704.600.6Grey plastic bezel 704.955.335mm diameter for flush mount pushbutton 3704.955.1Flush mount aluminium bezel

www.eao.com 20
