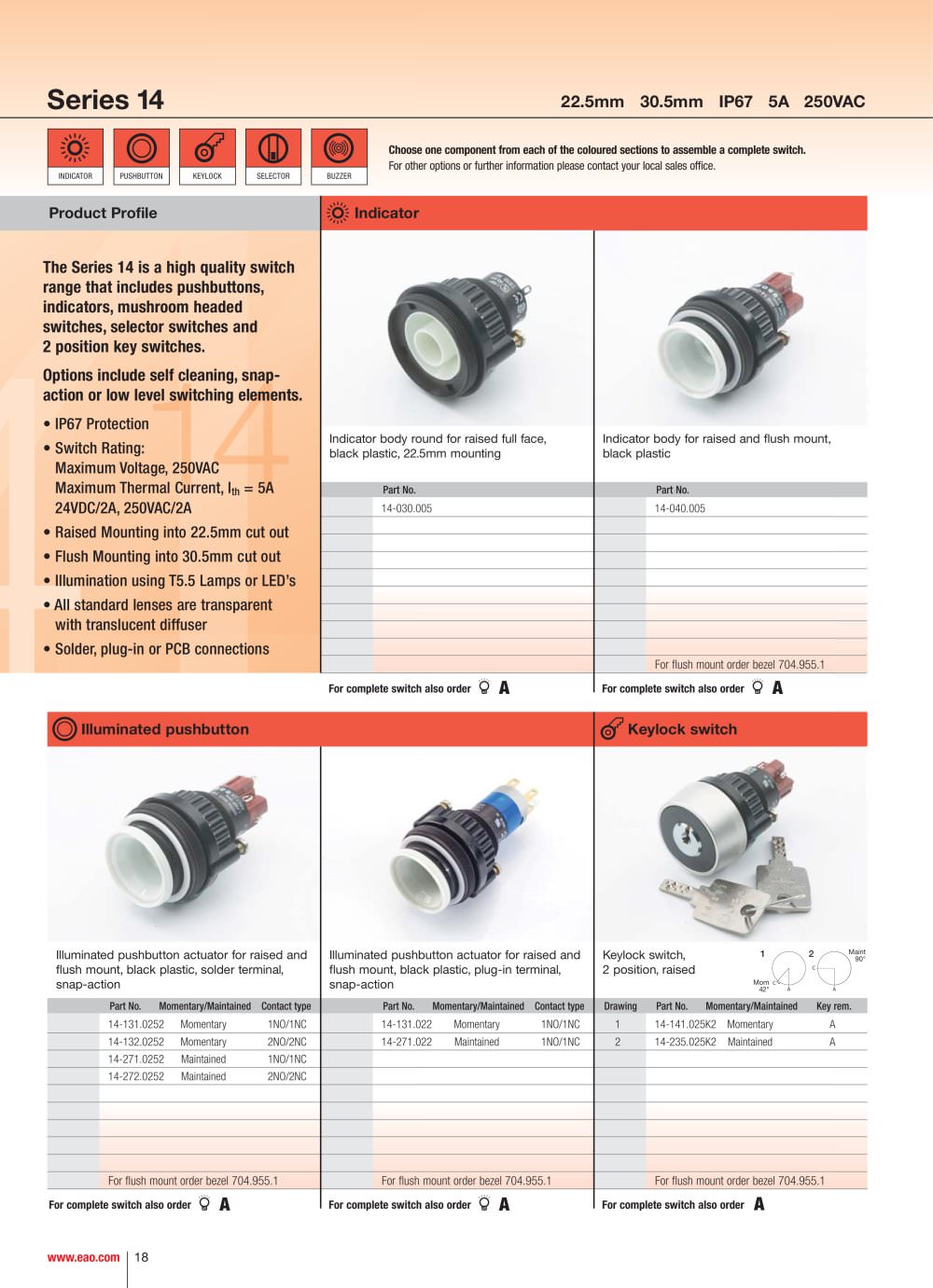

Series 14

22.5mm 30.5mm IP67 5A 250VAC

Choose one component from each of the coloured sections to assemble a complete switch.

For other options or further information please contact your local sales office.

INDICATOR

PUSHBUTTON

KEYLOCK

SELECTOR

BUZZER


Product Profile	CO) Indicator	Indicator body for raised and flush mount, black plastic
The Series 14 is a high quality switch range that includes pushbuttons, indicators, mushroom headed switches, selector switches and 2 position key switches. Options include self cleaning, snap-action or low level switching elements. • IP67 Protection • Switch Rating: Maximum Voltage, 250VAC	Indicator body round for raised full face, black plastic, 22.5mm mounting	Indicator body for raised and flush mount, black plastic
Maximum Thermal Current, I_№ = 5A	Part No.	Part No.
24VDC/2A, 250VAC/2A • Raised Mounting into 22.5mm cut out • Flush Mounting into 30.5mm cut out • Illumination using T5.5 Lamps or LED's • All standard lenses are transparent with translucent diffuser • Solder, plug-in or PCB connections	14-030.005	14-040.005








		For flush mount order bezel 704.955.1
For complete switch also order Q A		For complete switch also order Q A


(Q) Illuminated pushbutton		Keylock switch
Illuminated pushbutton actuator for raised and flush mount, black plastic, solder terminal, snap-action	Illuminated pushbutton actuator for raised and flush mount, black plastic, plug-in terminal, snap-action	Keylock switch, 1 ^~\2 /-"X^c? ² ^{position,raised} Mom I4JMJ
Part No. Momentary/Maintained Contact type	Part No. Momentary/Maintained Contact type	Drawing	Part No. Momentary/Maintained Key rem.
14-131.0252 Momentary 1NO/1NC	14-131.022 Momentary 1NO/1NC	1	14-141.025K2 Momentary A
14-132.0252 Momentary 2NO/2NC	14-271.022 Maintained 1NO/1NC	2	14-235.025K2 Maintained A
14-271.0252 Maintained 1NO/1NC
14-272.0252 Maintained 2NO/2NC





For flush mount order bezel 704.955.1	For flush mount order bezel 704.955.1		For flush mount order bezel 704.955.1
For complete switch also order Q A	For complete switch also order Q A	For complete switch also order A
