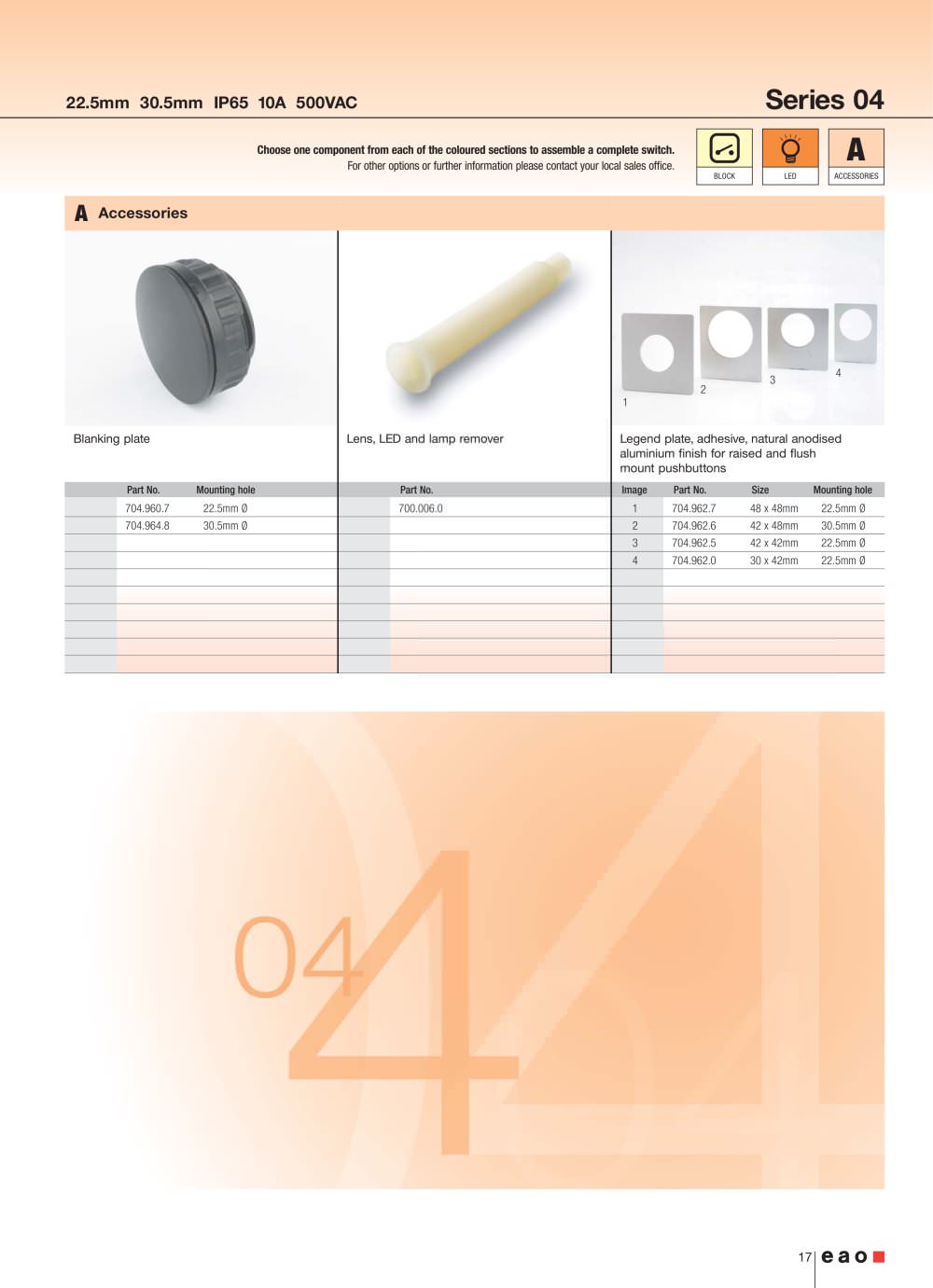

22.5mm 30.5mm IP65 10A500VAC

Condensed Catalogue - Complete Catalogue - 9307 Series 04

Choose one component from each of the coloured sections to assemble a complete switch. For other options or further information please contact your local sales office.
BLOCK LED ACCESSORIES

A

A

Accessories

1234

Blanking plate Lens,LED and lamp remover Legend plate,adhesive,natural anodised aluminium finish for raised and flush mount pushbuttons

Part No.Mounting hole Part No. ImagePart No.SizeMounting hole 704.960.722.5mm Ø 700.006.0 1704.962.748 x 48mm22.5mm Ø 704.964.830.5mm Ø 2704.962.642 x 48mm30.5mm Ø 3704.962.542 x 42mm22.5mm Ø 4704.962.030 x 42mm 22.5mm Ø

17
