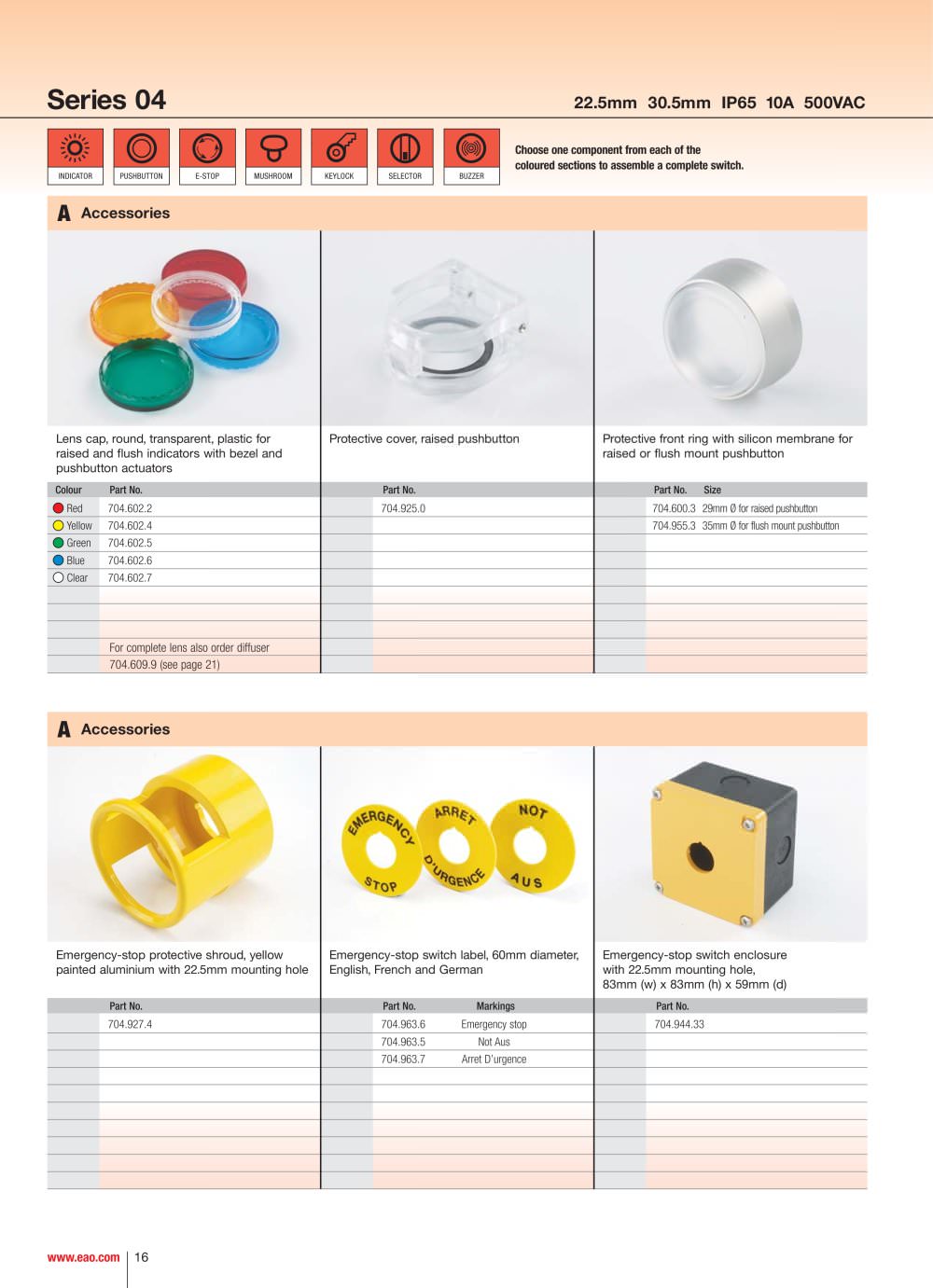

Series 04

22.5mm 30.5mm IP65 10A500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

INDICATOR PUSHBUTTON E-STOP MUSHROOM KEYLOCK SELECTOR BUZZER

A A

Accessories

Lens cap,round,transparent,plastic for raised and flush indicators with bezel and pushbutton actuators Protective cover,raised pushbutton Protective front ring with silicon membrane forraised or flush mount pushbutton

ColourPart No. Part No. Part No.Size RedYellow GreenBlueClear 704.602.2 704.925.0 704.600.3 29mm Ø for raised pushbutton 704.602.4 704.955.3 35mm Ø for flush mount pushbutton 704.602.5 704.602.6 704.602.7

For complete lens also order diffuser704.609.9 (see page 21)

Accessories

Emergency-stop protective shroud,yellow painted aluminium with 22.5mm mounting hole Emergency-stop switch label,60mm diameter,English,French and German Emergency-stop switch enclosure with 22.5mm mounting hole, 83mm (w) x 83mm (h) x 59mm (d)

Part No. Part No.Markings Part No. 704.927.4 704.963.6Emergency stop 704.944.33 704.963.5Not Aus 704.963.7Arret D’urgence

www.eao.com 16
