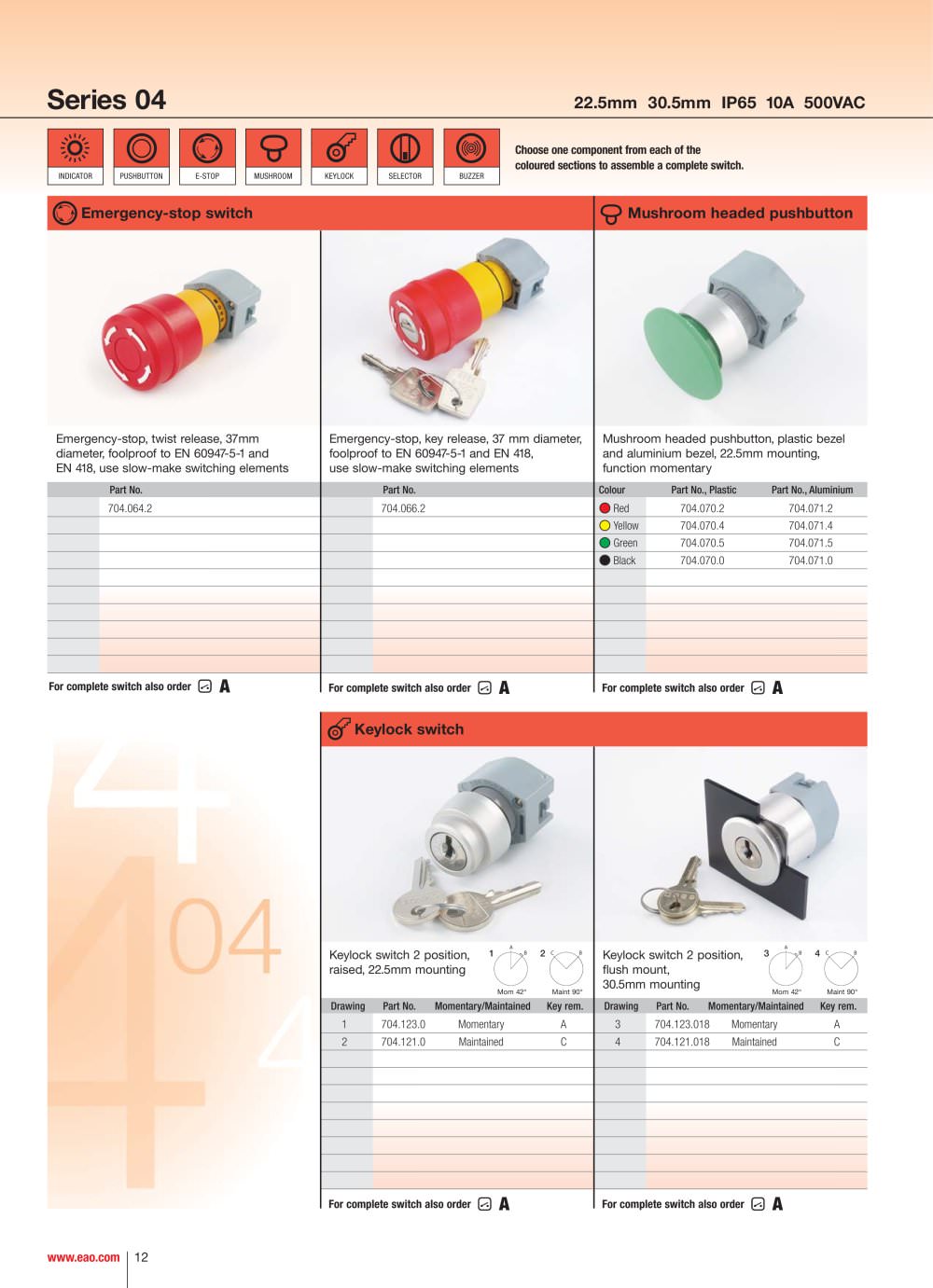

Series 04

22.5mm 30.5mm IP65 10A500VAC

Choose one component from each of the coloured sections to assemble a complete switch.

INDICATOR PUSHBUTTON E-STOP MUSHROOM KEYLOCK SELECTOR BUZZER

Emergency-stop switch Mushroom headed pushbutton

Emergency-stop,twist release,37mm diameter,foolproof to EN 60947-5-1and EN 418,use slow-make switching elements Emergency-stop,key release,37 mm diameter, foolproof to EN 60947-5-1and EN 418, use slow-make switching elements Mushroom headed pushbutton,plastic bezel and aluminium bezel,22.5mm mounting, function momentary

Part No. Part No. ColourPart No.,PlasticPart No.,Aluminium 704.064.2 704.066.2 RedYellow GreenBlack 704.070.2704.071.2 704.070.4704.071.4 704.070.5704.071.5 704.070.0704.071.0 For complete switch also order

A

For complete switch also order

A

For complete switch also order

A

Keylock switch

Keylock switch 2 position,raised,22.5mm mounting

BA 21 BC

Keylock switch 2 position, flush mount, 30.5mm mounting

BA 43 BC Mom 42° Maint 90° Mom 42° Maint 90° DrawingPart No.Momentary/MaintainedKey rem. DrawingPart No.Momentary/MaintainedKey rem. 1704.123.0MomentaryA 3704.123.018MomentaryA 2704.121.0MaintainedC 4704.121.018MaintainedC For complete switch also order

A

For complete switch also order

A
