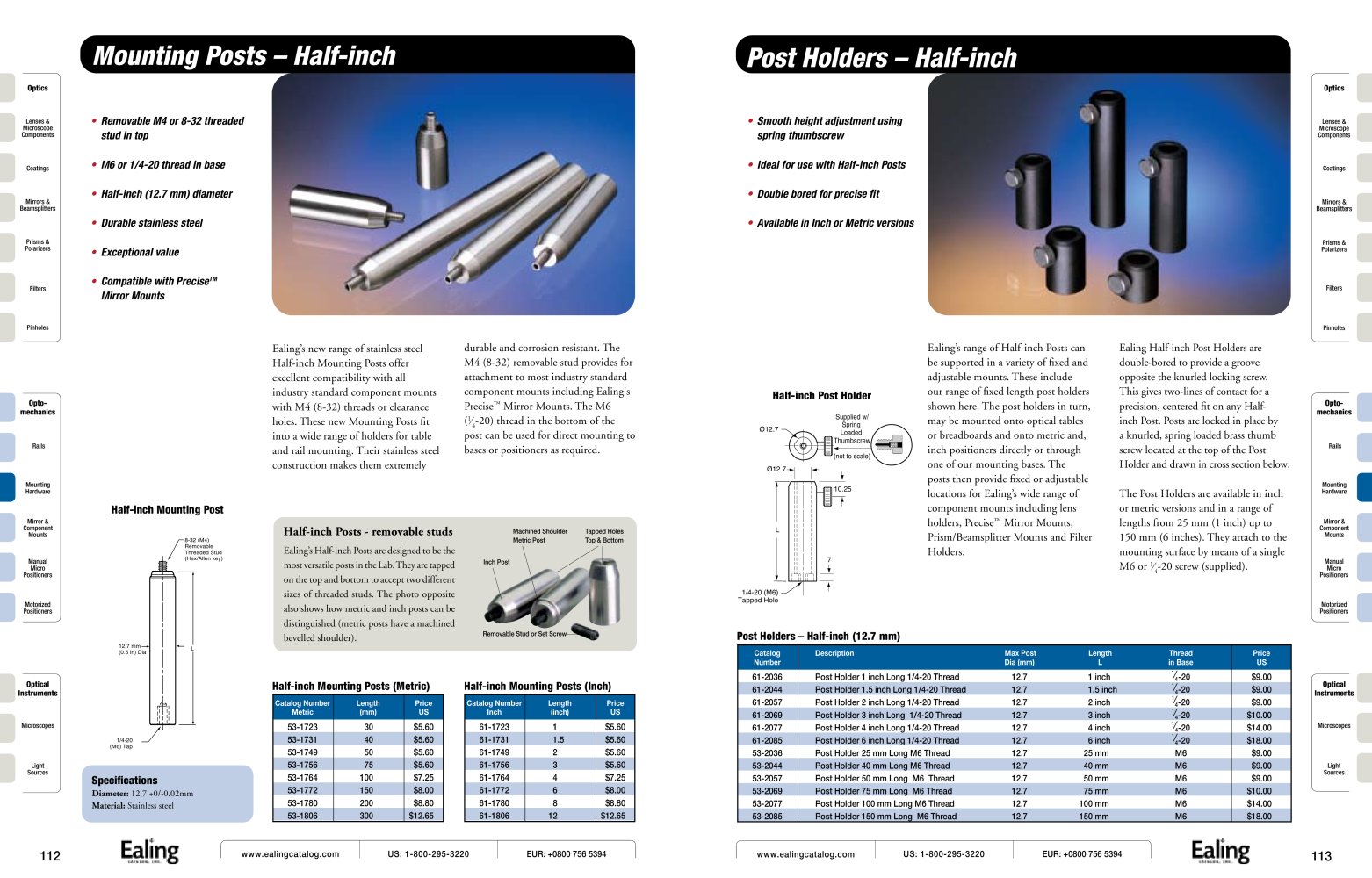

Mounting Posts - Half-inch

.Post Holders - Half-inch

Optics

• Smooth height adjustment using spring thumbscrew

• Ideal for use with Half-inch Posts

• Double bored for precise fit

• Available in Inch or Metric versions

Removable M4 or 8-32 threaded stud in top

Lenses & Microscope Components

• M6 or 1/4-20 thread in base

• Hall-inch (12.7 mm) diameter

• Durable stainless steel

Exceptional value

Compatible with Precise^TMMirror Mounts

Coatings

Mirrors & Beamsplitters

Prisms & Polarizers

Filters

Pinholes

durable and corrosion resistant. The M4 (8-32) removable stud provides for attachment to most industry standard component mounts including Ealing's Precise™ Mirror Mounts. The M6 (/^-20) thread in the bottom of the post can be used for direct mounting to bases or positioners as required.

Ealing's range of Half-inch Posts can be supported in a variety of fixed and adjustable mounts. These include our range of fixed length post holders shown here. The post holders in turn, may be mounted onto optical tables or breadboards and onto metric and, inch positioners directly or through one of our mounting bases. The posts then provide fixed or adjustable locations for Ealing's wide range of component mounts including lens holders, Precise™ Mirror Mounts, Prism/Beamsplitter Mounts and Filter Holders.

Ealing Half-inch Post Holders are double-bored to provide a groove opposite the knurled locking screw. This gives two-lines of contact for a precision, centered fit on any Half-inch Post. Posts are locked in place by a knurled, spring loaded brass thumb screw located at the top of the Post Holder and drawn in cross section below.

The Post Holders are available in inch or metric versions and in a range of lengths from 25 mm (1 inch) up to 150 mm (6 inches). They attach to the mounting surface by means of a single M6 or /^-20 screw (supplied).

Ealing's new range of stainless steel Half-inch Mounting Posts offer excellent compatibility with all industry standard component mounts with M4 (8-32) threads or clearance holes. These new Mounting Posts fit into a wide range of holders for table and rail mounting. Their stainless steel construction makes them extremely

Half-inch Post Holder

Opto-mechanics

Supplied w/ Spring Loaded 1 Thumbscrew/

012.7

Rails

(not to scale) '

012.7

Mounting Hardware

_<H 10.2!

Half-inch Mounting Post

Mirror & Component Mounts

Half-inch Posts - removable studs

Ealing's Half-inch Posts are designed to be the most versatile posts in the Lab. They are tapped on the top and bottom to accept two different sizes of threaded studs. The photo opposite

also shows how metric and inch posts can be distinguished (metric posts have a machined bevelled shoulder).

Machined Shoulder Tapped Holes Metric Post Top & Bottom

-8-32 (M4) Removable Threaded Stud (Hex/Allen key)

Manual Micro Positioners

1/4-20 (M6) -Tapped Hole

Motorized Positioners


Post Holders	- Half-inch (12.7 mm)
		Dia (mm)	^LenL^gth
61-2036	Post Holder 1 inch Long 1/4-20 Thread	12.7	1 inch		$9.00
61-2044	Post Holder 1.5 inch Long 1/4-20 Thread	12.7	1.5 inch	¹4-20	$9.00
61-2057	Post Holder 2 inch Long 1/4-20 Thread	12.7	2 inch	V20	$9.00
61-2069	Post Holder 3 inch Long 1/4-20 Thread	12.7	3 inch	¹4-20	$10.00
61-2077	Post Holder 4 inch Long 1/4-20 Thread	12.7	4 inch	¹4-20	$14.00
61-2085	Post Holder 6 inch Long 1/4-20 Thread	12.7	6 inch	¹4-20	$18.00
53-2036	Post Holder 25 mm Long M6 Thread	12.7	25 mm	M6	$9.00
53-2044	Post Holder 40 mm Long M6 Thread	12.7	40 mm	M6	$9.00
53-2057	Post Holder 50 mm Long M6 Thread	12.7	50 mm	M6	$9.00
53-2069	Post Holder 75 mm Long M6 Thread	12.7	75 mm	M6	$10.00
53-2077	Post Holder 100 mm Long M6 Thread	12.7	100 mm	M6	$14.00
53-2085	Post Holder 150 mm Long M6 Thread	12.7	150 mm	M6	$18.00

Removable Stud or Set Screw

12.7 mm —< (0.5 in) Dia

Optical Instruments

Half-inch Mounting Posts (Metric)

Half-inch Mounting Posts (Inch)


			Catalog Number	Length

53-1723	30	$5.60	61-1723	1	$5.60
53-1731	40	$5.60	61-1731	1.5	$5.60
53-1749	50	$5.60	61-1749	2	$5.60
53-1756	75	$5.60	61-1756	3	$5.60
53-1764	100	$7.25	61-1764	4	$7.25
53-1772	150	$8.00	61-1772	6	$8.00
53-1780	200	$8.80	61-1780	8	$8.80
53-1806	300	$12.65	61-1806	12	$12.65

Microscopes

1/4-20 (M6) Tap

Light Sources

Specifications

Diameter: 12.7 +0/-0.02mm Material: Stainless steel
