HMA121 Hootronic Siren - E2S - #1

Text version of the page

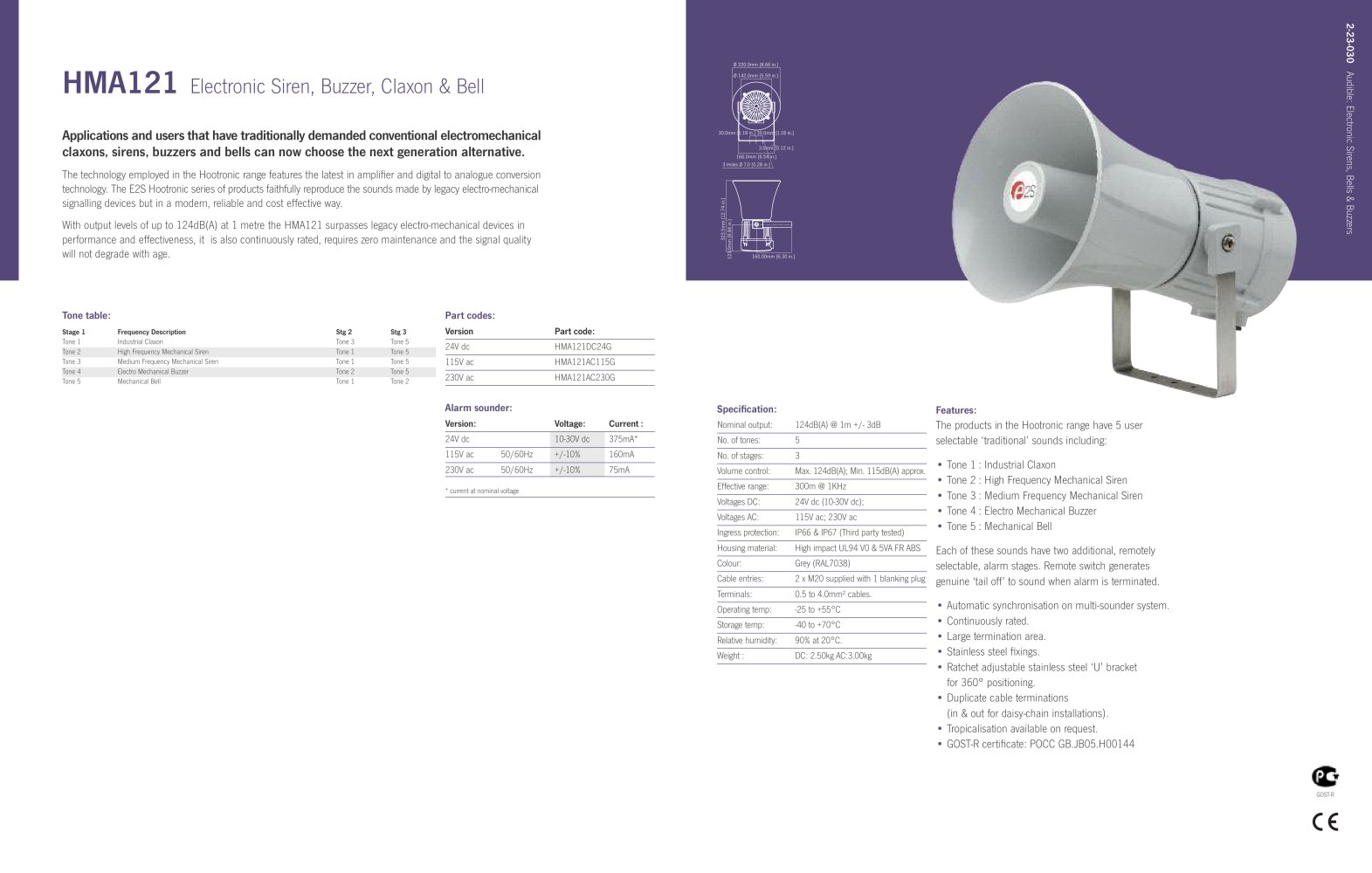

E2S Datasheet 2.7.3 v10a Features: The products in the Hootronic range have 5 user selectable ‘traditional’ sounds including: • Tone 1 : Industrial Hooter • Tone 2 : High Frequency Mechanical Siren • Tone 3 : Medium Frequency Mechanical Siren • Tone 4 : Electro Mechanical Buzzer • Tone 5 : Mechanical Bell Each of these sounds have two additional, remotely selectable, alarm stages. Remote switch generates genuine ‘tail off’ to sound when alarm is terminated. • Automatic synchronisation on multi-sounder system. • Continuously rated. • Large termination area. • Stainless steel fixings. • Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning. • Duplicate cable terminations (in & out for daisy-chain installations). • Tropicalisation available on request. • GOST-R certificate: POCC GB.JB05.B02205 Part codes: Version Part code: 24V dc HMA121DC24G 115V ac HMA121AC115G 230V ac HMA121AC230G GOST-R HMA121 Electronic Siren, Buzzer, Hooter & Bell Applications and users that have traditionally demanded conventional electromechanical hooters, sirens, buzzers and bells can now choose the next generation alternative. The technology employed in the Hootronic range features the latest in amplifier and digital to analogue conversion technology. The E2S Hootronic series of products faithfully reproduce the sounds made by legacy electro-mechanical signalling devices but in a modern, reliable and cost effective way. With output levels of up to 124dB(A) at 1 metre the HMA121 surpasses legacy electro-mechanical devices in performance and effectiveness, it is also continuously rated, requires zero maintenance and the signal quality will not degrade with age. HMCA112-05 - Hootronic HMA121 combined with Xenon strobe beacon.
