E2S Datasheet 3.1.2 v10a
With a choice of 45 standard warning tones including
many of the standard international signals the A141 can
offer up to 4 different stages of
alarm.
A “Hootronic” version of the A141 is also available which
replicates the traditional signaling sounds of bells,
buzzers,
sirens and hooters. By re-playing digital
recordings of these products, the Hootronic produces the
exact sound but without the reliability and rating problems
of electro-mechanical devices.
E2S has considerable experience in this field and is able
to offer full pre and post installation support including
assistance with
siren selection.
Features:
Using four 100W drivers, the A141 produces a powerful
sound with an output in excess of 140 dB and is ideal
for warning over distances of between 400m and 700m.
The A141 has a lightweight, compact housing designed
for easy mounting and is protected to IP65 making it
suitable for installation in all locations.
Optional extras include:
• Custom Tones
• Battery Back Up (giving up to 30 minutes of
alarm)
• Radio Control
Part codes:
Voltage: Range: Part code: Current:
24V dc 18-30V dc A141DC24G 13.2A
115V ac 90-264V ac A141AC230G 4.20A
230V ac 90-264V ac A141AC230G 1.95A
Other voltages available on request.
The A141 is the latest in a new generation of high output electronic
sounders from E2S which are ideal for wide area and disaster
warning applications such as COMAH (Seveso II) Alarm, Toxic Gas
Release, Fire, Security, Flood Warning, Tsunami Alert and Civil
Defence requiring sound coverage up to 750m.

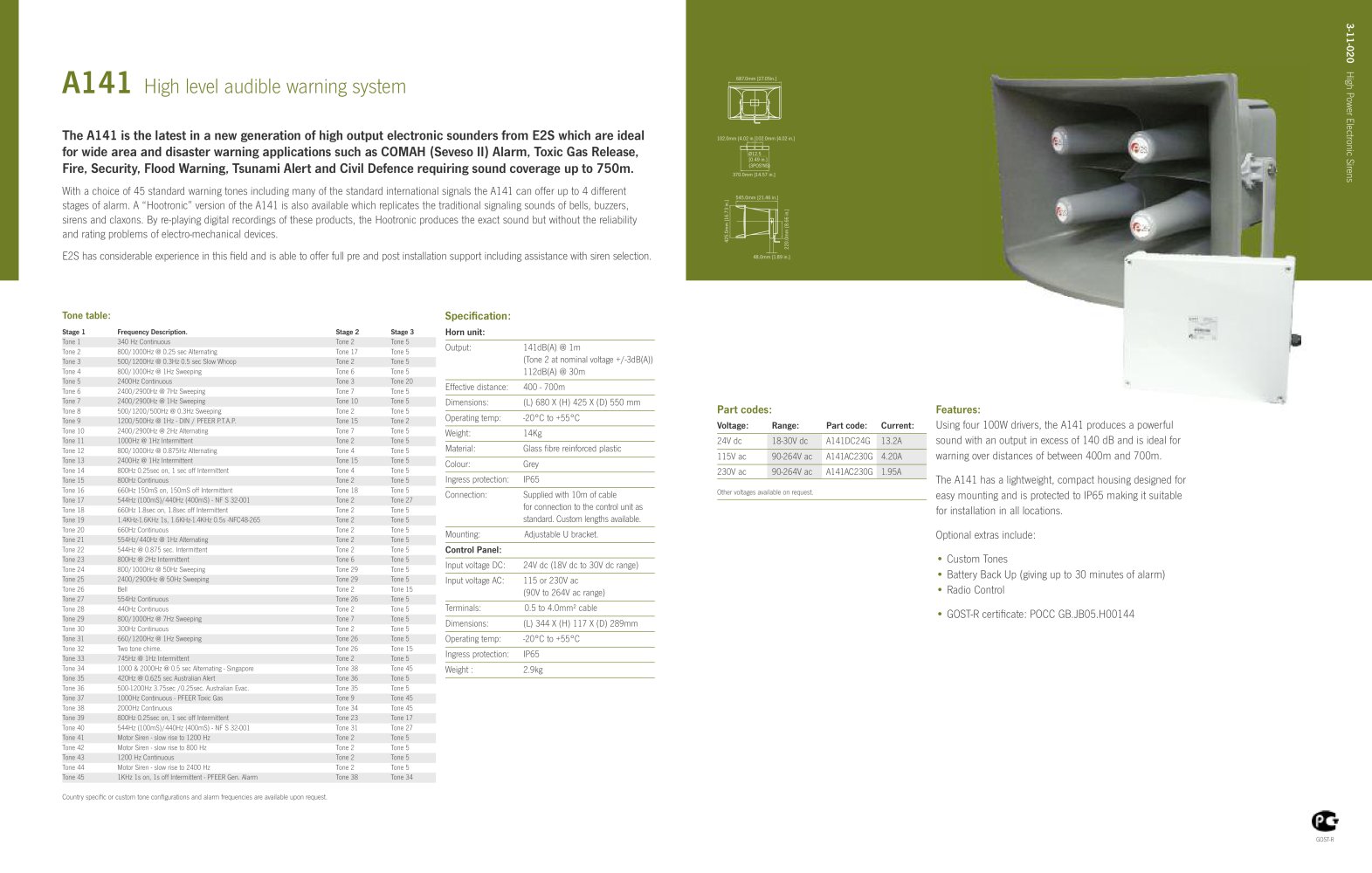

A141 High level audible warning system
