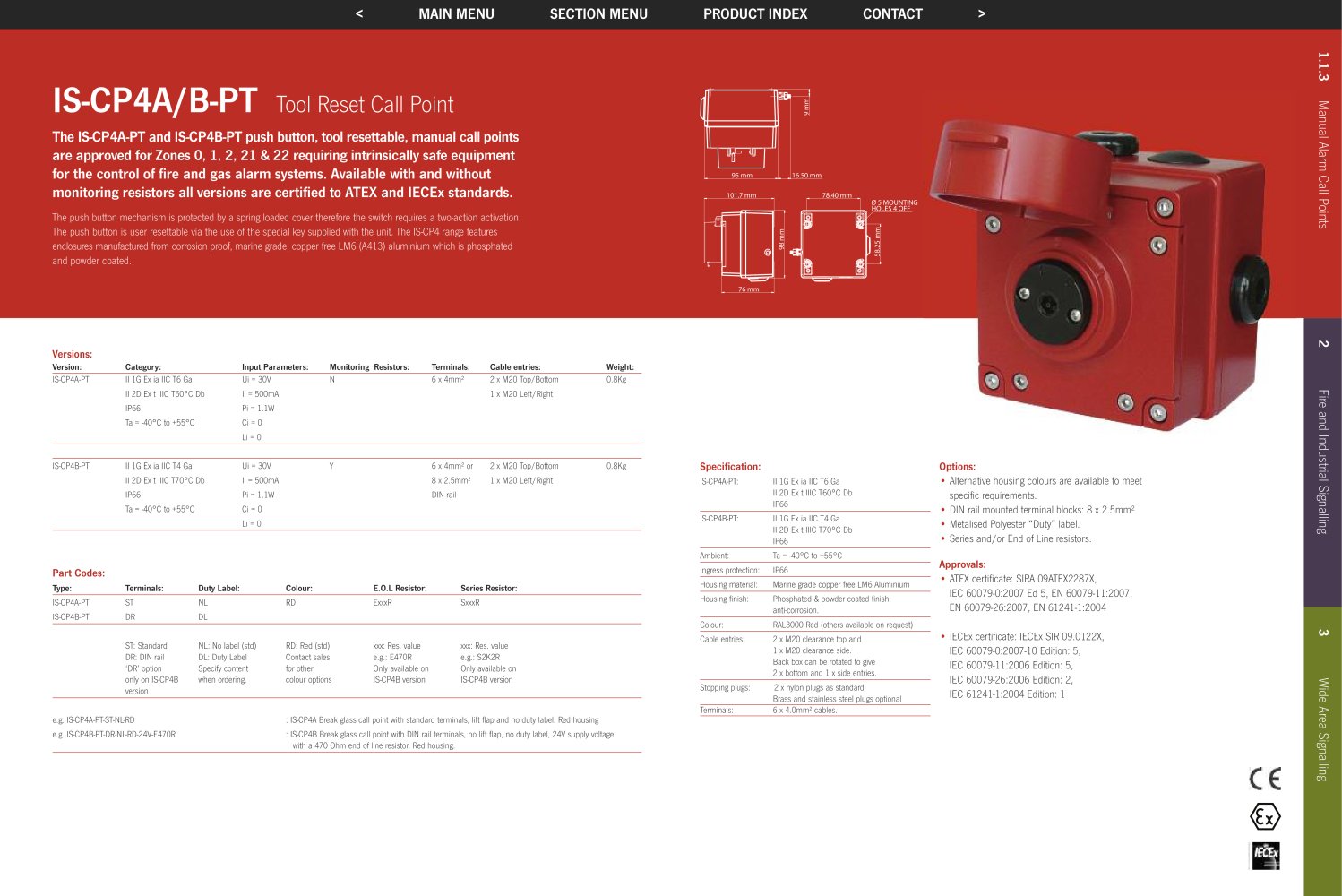

2 Fire and Industrial Signalling 3 1.1.3 Manual Alarm Call Points Wide Area Signalling Options: • Alternative housing colours are available to meet specific requirements. • DIN rail mounted terminal blocks: 8 x 2.5mm² • Metalised Polyester “Duty” label. • Series and/or End of Line resistors. Approvals: • ATEX certificate: SIRA 09ATEX2287X, IEC 60079-0:2007 Ed 5, EN 60079-11:2007, EN 60079-26:2007, EN 61241-1:2004 • IECEx certificate: IECEx SIR 09.0122X, IEC 60079-0:2007-10 Edition: 5, IEC 60079-11:2006 Edition: 5, IEC 60079-26:2006 Edition: 2, IEC 61241-1:2004 Edition: 1 IS-CP4A/B-PT Tool Reset Call Point The IS-CP4A-PT and IS-CP4B-PT push button, tool resettable, manual call points are approved for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards. The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The push button is user resettable via the use of the special key supplied with the unit. The IS-CP4 range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated. Specification: IS-CP4A-PT: II 1G Ex ia IIC T6 Ga II 2D Ex t IIIC T60°C Db IP66 IS-CP4B-PT: II 1G Ex ia IIC T4 Ga II 2D Ex t IIIC T70°C Db IP66 Ambient: Ta = -40°C to +55°C Ingress protection: IP66 Housing material: Marine grade copper free LM6 Aluminium Housing finish: Phosphated & powder coated finish: anti-corrosion. Colour: RAL3000 Red (others available on request) Cable entries: 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries. Stopping plugs: 2 x nylon plugs as standard Brass and stainless steel plugs optional Terminals: 6 x 4.0mm² cables. Versions: Version: Category: Input Parameters: Monitoring Resistors: Terminals: Cable entries: Weight: IS-CP4A-PT II 1G Ex ia IIC T6 Ga Ui = 30V N 6 x 4mm² 2 x M20 Top/Bottom 0.8Kg II 2D Ex t IIIC T60°C Db Ii = 500mA 1 x M20 Left/Right IP66 Pi = 1.1W Ta = -40°C to +55°C Ci = 0 Li = 0 IS-CP4B-PT II 1G Ex ia IIC T4 Ga Ui = 30V Y 6 x 4mm² or 2 x M20 Top/Bottom 0.8Kg II 2D Ex t IIIC T70°C Db Ii = 500mA 8 x 2.5mm² 1 x M20 Left/Right IP66 Pi = 1.1W DIN rail Ta = -40°C to +55°C Ci = 0 Li = 0 Part Codes: Type: Terminals: Duty Label: Colour: E.O.L Resistor: Series Resistor: IS-CP4A-PT ST NL RD ExxxR SxxxR IS-CP4B-PT DR DL ST: Standard NL: No label (std) RD: Red (std) xxx: Res. value xxx: Res. value DR: DIN rail DL: Duty Label Contact sales e.g.: E470R e.g.: S2K2R ‘DR’ option Specify content for other Only available on Only available on only on IS-CP4B when ordering. colour options IS-CP4B version IS-CP4B version version e.g. IS-CP4A-PT-ST-NL-RD : IS-CP4A Break glass call point with standard terminals, lift flap and no duty label. Red housing e.g. IS-CP4B-PT-DR-NL-RD-24V-E470R : IS-CP4B Break glass call point with DIN rail terminals, no lift flap, no duty label, 24V supply voltage with a 470 Ohm end of line resistor. Red housing. 95 mm 16.50 mm 9 mm 76 mm 98 mm 101.7 mm 78.40 mm 58.25 mm Ø 5 MOUNTING HOLES 4 OFF
