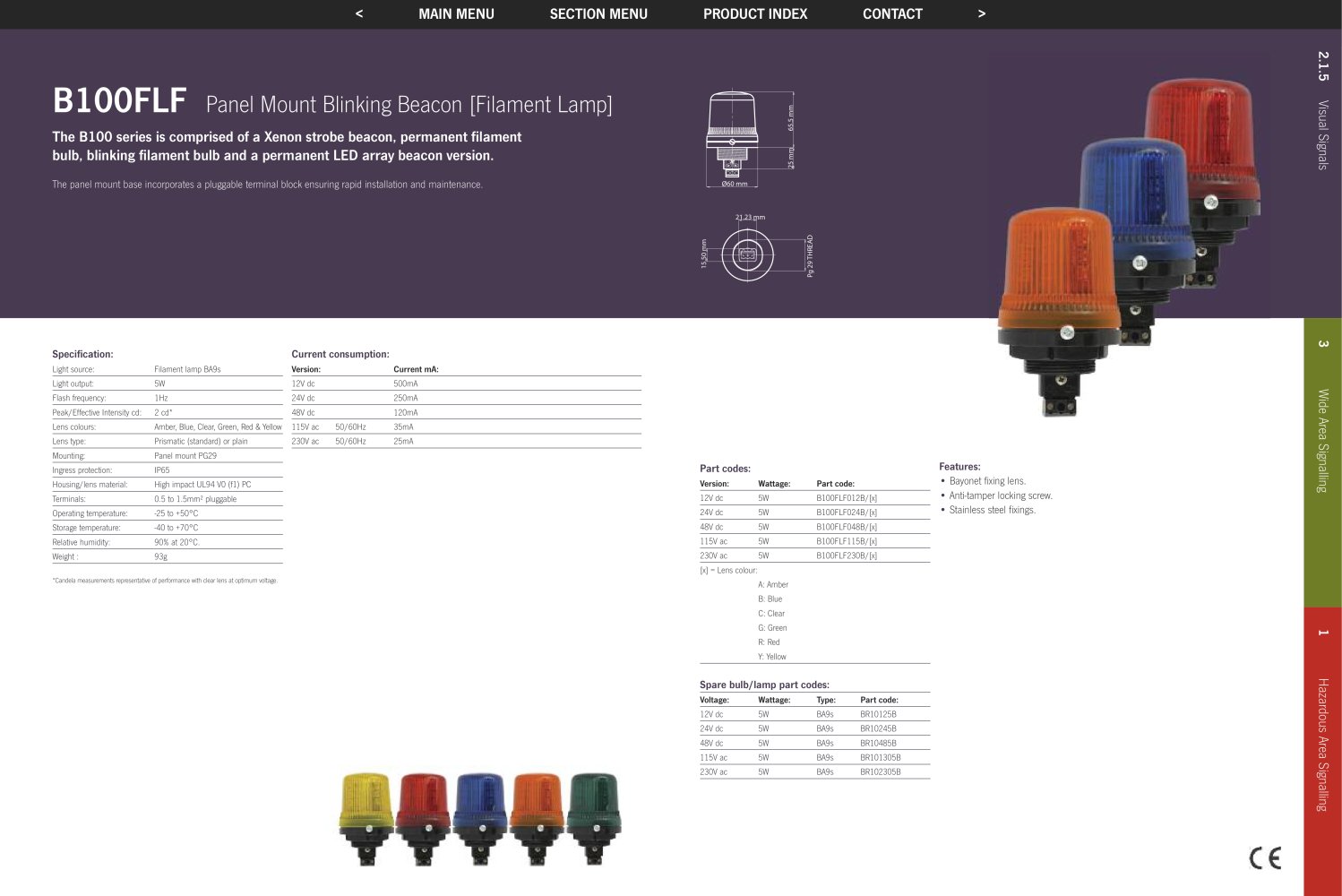

Part codes: Version: Wattage: Part code: 12V dc 5W B100FLF012B/[x] 24V dc 5W B100FLF024B/[x] 48V dc 5W B100FLF048B/[x] 115V ac 5W B100FLF115B/[x] 230V ac 5W B100FLF230B/[x] [x] = Lens colour: A: Amber B: Blue C: Clear G: Green R: Red Y: Yellow Spare bulb/lamp part codes: Voltage: Wattage: Type: Part code: 12V dc 5W BA9s BR10125B 24V dc 5W BA9s BR10245B 48V dc 5W BA9s BR10485B 115V ac 5W BA9s BR101305B 230V ac 5W BA9s BR102305B Features: • Bayonet fixing lens. • Anti-tamper locking screw. • Stainless steel fixings. B100FLF Panel Mount Blinking Beacon [Filament Lamp] The B100 series is comprised of a Xenon strobe beacon, permanent filament bulb, blinking filament bulb and a permanent LED array beacon version. The panel mount base incorporates a pluggable terminal block ensuring rapid installation and maintenance. Current consumption: Version: Current mA: 12V dc 500mA 24V dc 250mA 48V dc 120mA 115V ac 50/60Hz 35mA 230V ac 50/60Hz 25mA Specification: Light source: Filament lamp BA9s Light output: 5W Flash frequency: 1Hz Peak/Effective Intensity cd: 2 cd* Lens colours: Amber, Blue, Clear, Green, Red & Yellow Lens type: Prismatic (standard) or plain Mounting: Panel mount PG29 Ingress protection: IP65 Housing/lens material: High impact UL94 V0 (f1) PC Terminals: 0.5 to 1.5mm² pluggable Operating temperature: -25 to +50°C Storage temperature: -40 to +70°C Relative humidity: 90% at 20°C. Weight : 93g *Candela measurements representative of performance with clear lens at optimum voltage. Pg 29 THREAD 15.50 mm 21.23 mm 65.5 mm Ø60 mm 25 mm 2.1.5 Visual Signals Hazardous 3 Wide Area Signalling 1 Area Signalling
