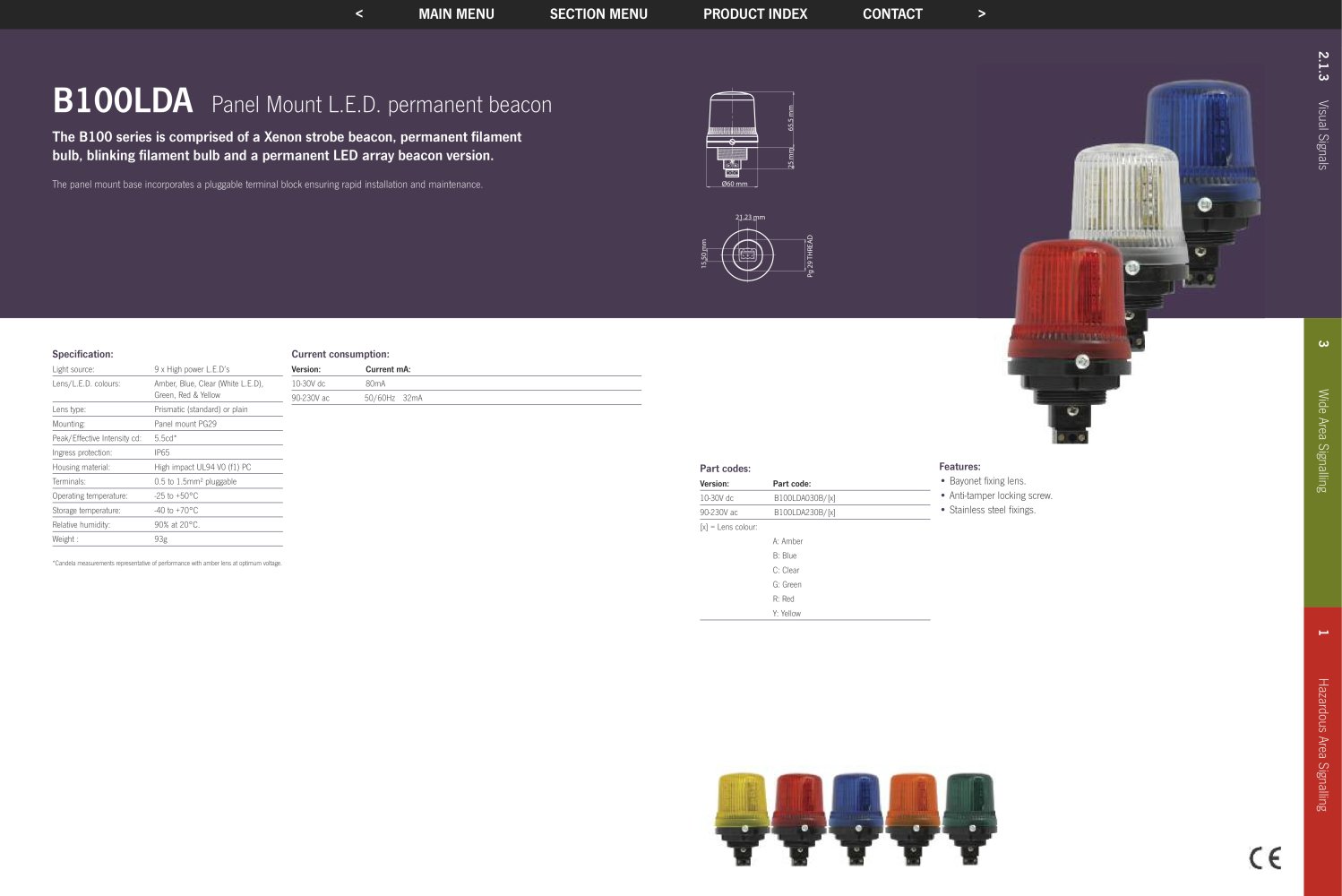

Part codes: Version: Part code: 10-30V dc B100LDA030B/[x] 90-230V ac B100LDA230B/[x] [x] = Lens colour: A: Amber B: Blue C: Clear G: Green R: Red Y: Yellow Features: • Bayonet fixing lens. • Anti-tamper locking screw. • Stainless steel fixings. B100LDA Panel Mount L.E.D. permanent beacon The B100 series is comprised of a Xenon strobe beacon, permanent filament bulb, blinking filament bulb and a permanent LED array beacon version. The panel mount base incorporates a pluggable terminal block ensuring rapid installation and maintenance. Current consumption: Version: Current mA: 10-30V dc 80mA 90-230V ac 50/60Hz 32mA Specification: Light source: 9 x High power L.E.D’s Lens/L.E.D. colours: Amber, Blue, Clear (White L.E.D), Green, Red & Yellow Lens type: Prismatic (standard) or plain Mounting: Panel mount PG29 Peak/Effective Intensity cd: 5.5cd* Ingress protection: IP65 Housing material: High impact UL94 V0 (f1) PC Terminals: 0.5 to 1.5mm² pluggable Operating temperature: -25 to +50°C Storage temperature: -40 to +70°C Relative humidity: 90% at 20°C. Weight : 93g *Candela measurements representative of performance with amber lens at optimum voltage. Pg 29 THREAD 15.50 mm 21.23 mm 65.5 mm Ø60 mm 25 mm 2.1.3 Visual Signals Hazardous 3 Wide Area Signalling 1 Area Signalling
