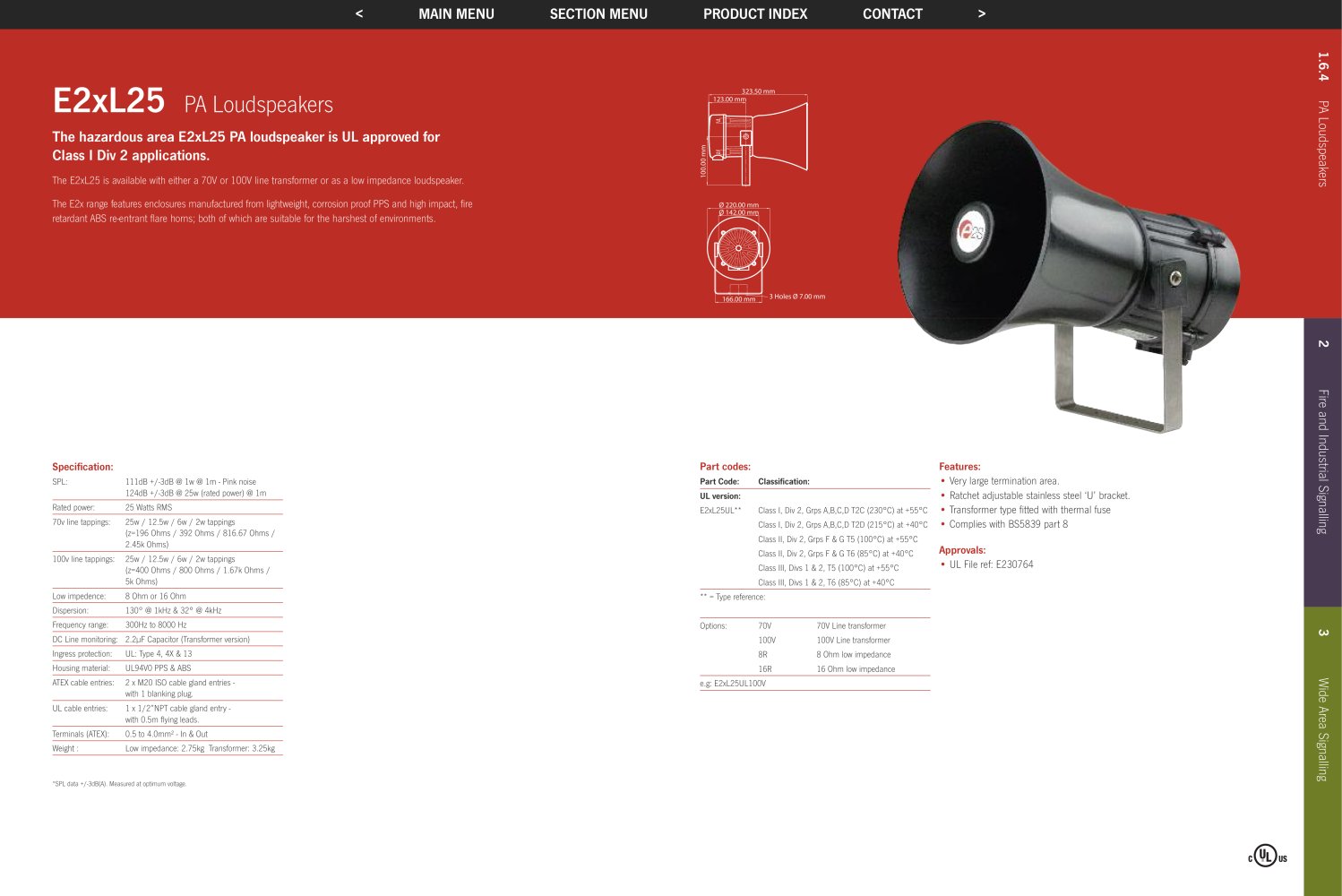

1.6.4 PA Loudspeakers 2 Fire and Industrial Signalling 3 Wide Area Signalling Part codes: Part Code: Classification: UL version: E2xL25UL** Class I, Div 2, Grps A,B,C,D T2C (230°C) at +55°C Class I, Div 2, Grps A,B,C,D T2D (215°C) at +40°C Class II, Div 2, Grps F & G T5 (100°C) at +55°C Class II, Div 2, Grps F & G T6 (85°C) at +40°C Class III, Divs 1 & 2, T5 (100°C) at +55°C Class III, Divs 1 & 2, T6 (85°C) at +40°C ** = Type reference: Options: 70V 70V Line transformer 100V 100V Line transformer 8R 8 Ohm low impedance 16R 16 Ohm low impedance e.g: E2xL25UL100V Features: • Very large termination area. • Ratchet adjustable stainless steel ‘U’ bracket. • Transformer type fitted with thermal fuse • Complies with BS5839 part 8 Approvals: • UL File ref: E230764 E2xL25 PA Loudspeakers The hazardous area E2xL25 PA loudspeaker is UL approved for Class I Div 2 applications. The E2xL25 is available with either a 70V or 100V line transformer or as a low impedance loudspeaker. The E2x range features enclosures manufactured from lightweight, corrosion proof PPS and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments. Specification: SPL: 111dB +/-3dB @ 1w @ 1m - Pink noise 124dB +/-3dB @ 25w (rated power) @ 1m Rated power: 25 Watts RMS 70v line tappings: 25w / 12.5w / 6w / 2w tappings (z=196 Ohms / 392 Ohms / 816.67 Ohms / 2.45k Ohms) 100v line tappings: 25w / 12.5w / 6w / 2w tappings (z=400 Ohms / 800 Ohms / 1.67k Ohms / 5k Ohms) Low impedence: 8 Ohm or 16 Ohm Dispersion: 130° @ 1kHz & 32° @ 4kHz Frequency range: 300Hz to 8000 Hz DC Line monitoring: 2.2ìF Capacitor (Transformer version) Ingress protection: UL: Type 4, 4X & 13 Housing material: UL94V0 PPS & ABS ATEX cable entries: 2 x M20 ISO cable gland entries - with 1 blanking plug. UL cable entries: 1 x 1/2”NPT cable gland entry - with 0.5m flying leads. Terminals (ATEX): 0.5 to 4.0mm² - In & Out Weight : Low impedance: 2.75kg Transformer: 3.25kg Ø 142.00 mm Ø 220.00 mm 166.00 mm 3 Holes Ø 7.00 mm 323.50 mm 100.00 mm 123.00 mm *SPL data +/-3dB(A). Measured at optimum voltage.
