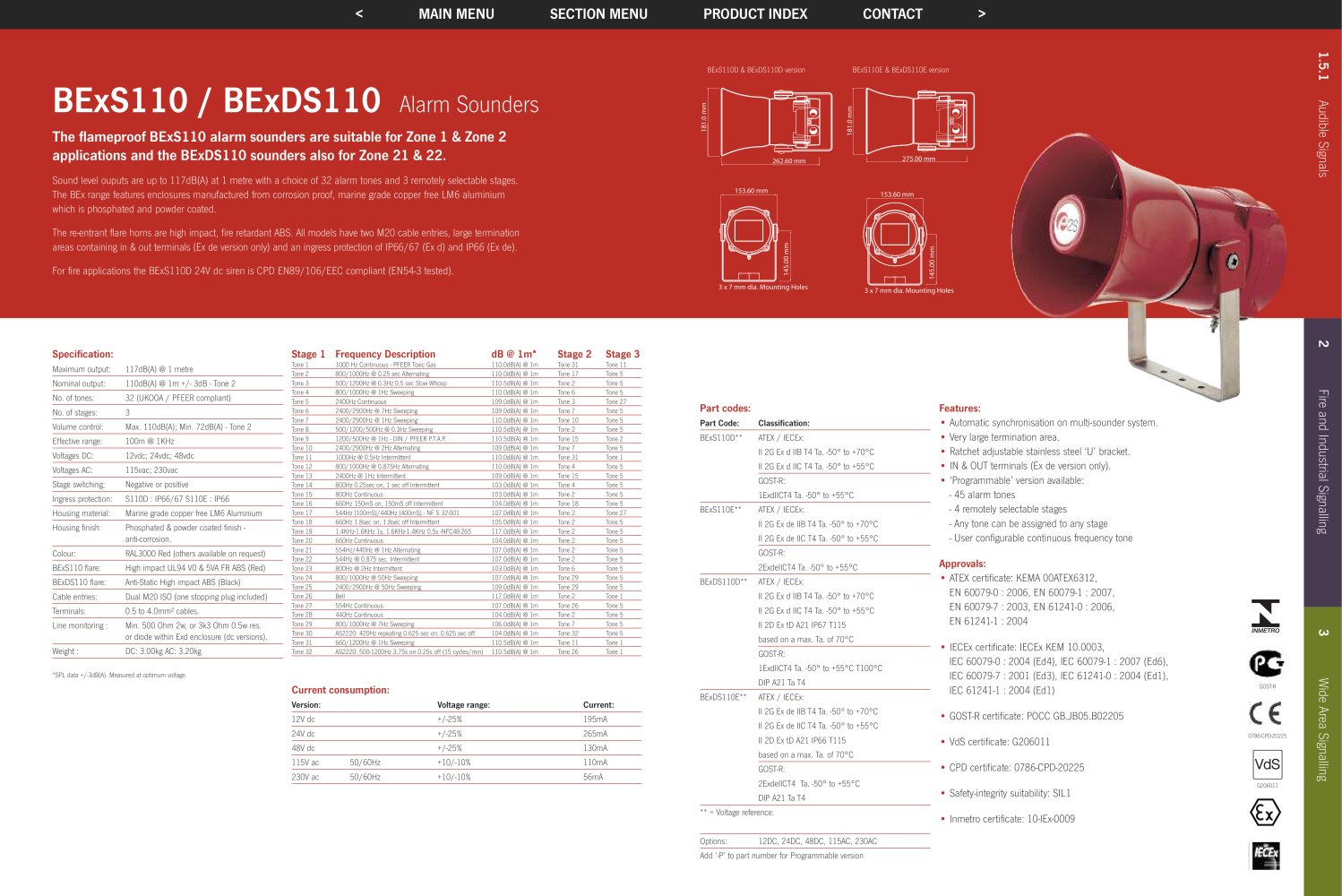

1.5.1 Audible Signals 2 Fire and Industrial Signalling 3 Wide Area Signalling 0786-CPD-20225 GOST-R G206011 Part codes: Part Code: Classification: BExS110D** ATEX / IECEx: II 2G Ex d IIB T4 Ta. -50° to +70°C II 2G Ex d IIC T4 Ta. -50° to +55°C GOST-R: 1ExdIICT4 Ta. -50° to +55°C BExS110E** ATEX / IECEx: II 2G Ex de IIB T4 Ta. -50° to +70°C II 2G Ex de IIC T4 Ta. -50° to +55°C GOST-R: 2ExdeIICT4 Ta. -50° to +55°C BExDS110D** ATEX / IECEx: II 2G Ex d IIB T4 Ta. -50° to +70°C II 2G Ex d IIC T4 Ta. -50° to +55°C II 2D Ex tD A21 IP67 T115 based on a max. Ta. of 70°C GOST-R: 1ExdIICT4 Ta. -50° to +55°C T100°C DIP A21 Ta T4 BExDS110E** ATEX / IECEx: II 2G Ex de IIB T4 Ta. -50° to +70°C II 2G Ex de IIC T4 Ta. -50° to +55°C II 2D Ex tD A21 IP66 T115 based on a max. Ta. of 70°C GOST-R: 2ExdeIICT4 Ta. -50° to +55°C DIP A21 Ta T4 ** = Voltage reference: Options: 12DC, 24DC, 48DC, 115AC, 230AC Add ‘-P’ to part number for Programmable version Features: • Automatic synchronisation on multi-sounder system. • Very large termination area. • Ratchet adjustable stainless steel ‘U’ bracket. • IN & OUT terminals (Ex de version only). • ‘Programmable’ version available: - 45 alarm tones - 4 remotely selectable stages - Any tone can be assigned to any stage - User configurable continuous frequency tone Approvals: • ATEX certificate: KEMA 00ATEX6312, EN 60079-0 : 2006, EN 60079-1 : 2007, EN 60079-7 : 2003, EN 61241-0 : 2006, EN 61241-1 : 2004 • IECEx certificate: IECEx KEM 10.0003, IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6), IEC 60079-7 : 2001 (Ed3), IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1) • GOST-R certificate: POCC GB.JB05.B02205 • VdS certificate: G206011 • CPD certificate: 0786-CPD-20225 • Safety-integrity suitability: SIL1 • Inmetro certificate: 10-IEx-0009 BExS110 / BExDS110 Alarm Sounders The flameproof BExS110 alarm sounders are suitable for Zone 1 & Zone 2 applications and the BExDS110 sounders also for Zone 21 & 22. Sound level ouputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. The re-entrant flare horns are high impact, fire retardant ABS. All models have two M20 cable entries, large termination areas containing in & out terminals (Ex de version only) and an ingress protection of IP66/67 (Ex d) and IP66 (Ex de). For fire applications the BExS110D 24V dc siren is CPD EN89/106/EEC compliant (EN54-3 tested). Stage 1 Frequency Description dB @ 1m* Stage 2 Stage 3 Tone 1 1000 Hz Continuous - PFEER Toxic Gas 110.0dB(A) @ 1m Tone 31 Tone 11 Tone 2 800/1000Hz @ 0.25 sec Alternating 110.0dB(A) @ 1m Tone 17 Tone 5 Tone 3 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop 110.5dB(A) @ 1m Tone 2 Tone 5 Tone 4 800/1000Hz @ 1Hz Sweeping 110.0dB(A) @ 1m Tone 6 Tone 5 Tone 5 2400Hz Continuous 109.0dB(A) @ 1m Tone 3 Tone 27 Tone 6 2400/2900Hz @ 7Hz Sweeping 109.0dB(A) @ 1m Tone 7 Tone 5 Tone 7 2400/2900Hz @ 1Hz Sweeping 110.0dB(A) @ 1m Tone 10 Tone 5 Tone 8 500/1200/500Hz @ 0.3Hz Sweeping 110.5dB(A) @ 1m Tone 2 Tone 5 Tone 9 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. 110.5dB(A) @ 1m Tone 15 Tone 2 Tone 10 2400/2900Hz @ 2Hz Alternating 109.0dB(A) @ 1m Tone 7 Tone 5 Tone 11 1000Hz @ 0.5Hz Intermittent 110.0dB(A) @ 1m Tone 31 Tone 1 Tone 12 800/1000Hz @ 0.875Hz Alternating 110.0dB(A) @ 1m Tone 4 Tone 5 Tone 13 2400Hz @ 1Hz Intermittent 109.0dB(A) @ 1m Tone 15 Tone 5 Tone 14 800Hz 0.25sec on, 1 sec off Intermittent 103.0dB(A) @ 1m Tone 4 Tone 5 Tone 15 800Hz Continuous 103.0dB(A) @ 1m Tone 2 Tone 5 Tone 16 660Hz 150mS on, 150mS off Intermittent 104.0dB(A) @ 1m Tone 18 Tone 5 Tone 17 544Hz (100mS)/440Hz (400mS) - NF S 32-001 107.0dB(A) @ 1m Tone 2 Tone 27 Tone 18 660Hz 1.8sec on, 1.8sec off Intermittent 105.0dB(A) @ 1m Tone 2 Tone 5 Tone 19 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 117.0dB(A) @ 1m Tone 2 Tone 5 Tone 20 660Hz Continuous 104.0dB(A) @ 1m Tone 2 Tone 5 Tone 21 554Hz/440Hz @ 1Hz Alternating 107.0dB(A) @ 1m Tone 2 Tone 5 Tone 22 544Hz @ 0.875 sec. Intermittent 107.0dB(A) @ 1m Tone 2 Tone 5 Tone 23 800Hz @ 2Hz Intermittent 103.0dB(A) @ 1m Tone 6 Tone 5 Tone 24 800/1000Hz @ 50Hz Sweeping 107.0dB(A) @ 1m Tone 29 Tone 5 Tone 25 2400/2900Hz @ 50Hz Sweeping 109.0dB(A) @ 1m Tone 29 Tone 5 Tone 26 Bell 117.0dB(A) @ 1m Tone 2 Tone 1 Tone 27 554Hz Continuous 107.0dB(A) @ 1m Tone 26 Tone 5 Tone 28 440Hz Continuous 104.0dB(A) @ 1m Tone 2 Tone 5 Tone 29 800/1000Hz @ 7Hz Sweeping 106.0dB(A) @ 1m Tone 7 Tone 5 Tone 30 AS2220: 420Hz repeating 0.625 sec on, 0.625 sec off. 104.0dB(A) @ 1m Tone 32 Tone 5 Tone 31 660/1200Hz @ 1Hz Sweeping 110.5dB(A) @ 1m Tone 11 Tone 1 Tone 32 AS2220: 500-1200Hz 3.75s on 0.25s off (15 cycles/min) 110.5dB(A) @ 1m Tone 26 Tone 1 Specification: Maximum output: 117dB(A) @ 1 metre Nominal output: 110dB(A) @ 1m +/- 3dB - Tone 2 No. of tones: 32 (UKOOA / PFEER compliant) No. of stages: 3 Volume control: Max. 110dB(A); Min. 72dB(A) - Tone 2 Effective range: 100m @ 1KHz Voltages DC: 12vdc; 24vdc; 48vdc Voltages AC: 115vac; 230vac Stage switching: Negative or positive Ingress protection: S110D : IP66/67 S110E : IP66 Housing material: Marine grade copper free LM6 Aluminium Housing finish: Phosphated & powder coated finish - anti-corrosion. Colour: RAL3000 Red (others available on request) BExS110 flare: High impact UL94 V0 & 5VA FR ABS (Red) BExDS110 flare: Anti-Static High impact ABS (Black) Cable entries: Dual M20 ISO (one stopping plug included) Terminals: 0.5 to 4.0mm² cables. Line monitoring : Min. 500 Ohm 2w, or 3k3 Ohm 0.5w res. or diode within Exd enclosure (dc versions). Weight : DC: 3.00kg AC: 3.20kg Current consumption: Version: Voltage range: Current: 12V dc +/-25% 195mA 24V dc +/-25% 265mA 48V dc +/-25% 130mA 115V ac 50/60Hz +10/-10% 110mA 230V ac 50/60Hz +10/-10% 56mA 3 x 7 mm dia. Mounting Holes 153.60 mm 145.00 mm 262.60 mm 181.0 mm 3 x 7 mm dia. Mounting Holes 153.60 mm 145.00 mm 275.00 mm 181.0 mm BExS110D & BExDS110D version BExS110E & BExDS110E version *SPL data +/-3dB(A). Measured at optimum voltage.
