E2S complete product catalogue (v10a) - E2S - #19

Text version of the page

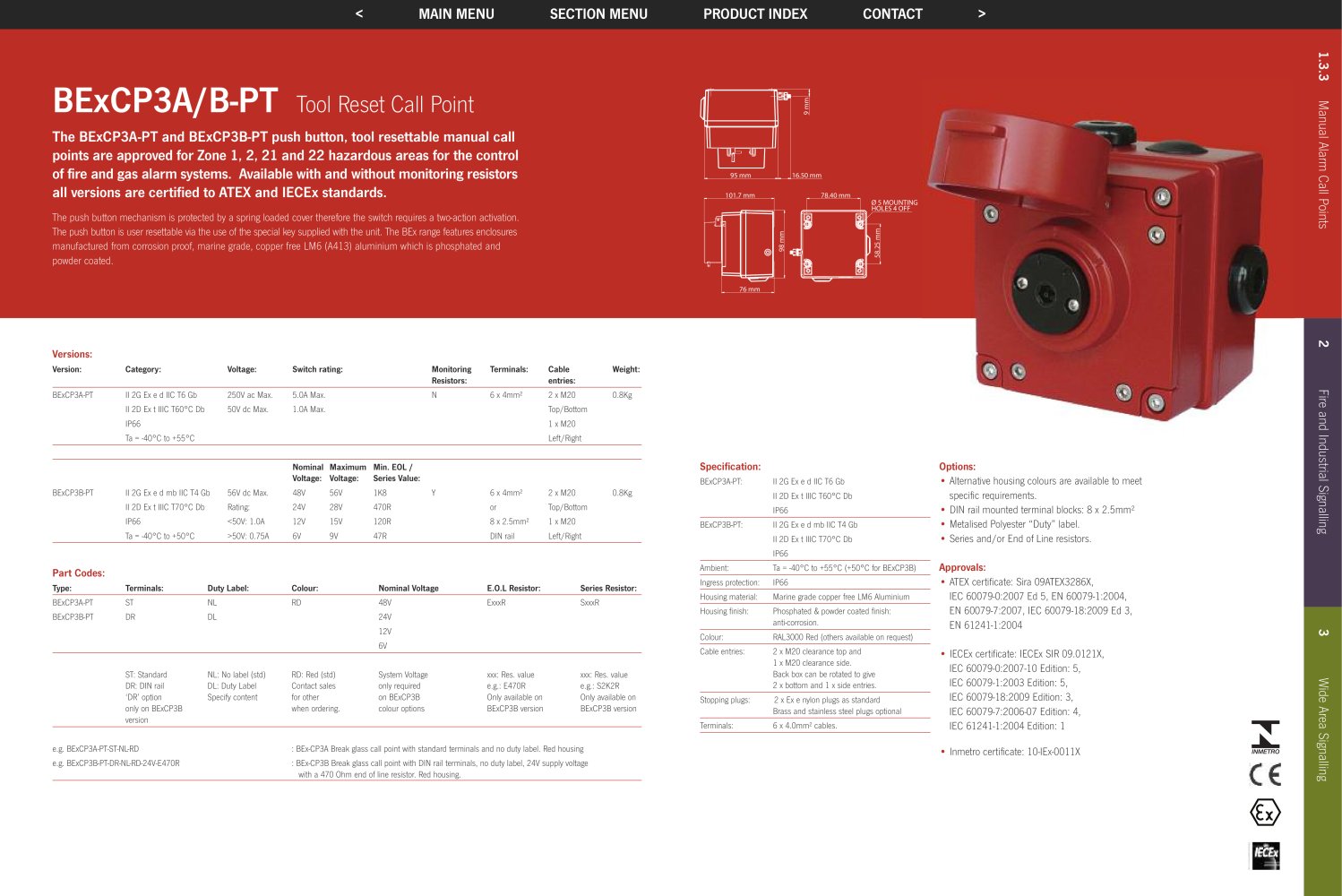

1.3.3 Manual Alarm Call Points 2 Fire and Industrial Signalling 3 Wide Area Signalling Options: • Alternative housing colours are available to meet specific requirements. • DIN rail mounted terminal blocks: 8 x 2.5mm² • Metalised Polyester “Duty” label. • Series and/or End of Line resistors. Approvals: • ATEX certificate: Sira 09ATEX3286X, IEC 60079-0:2007 Ed 5, EN 60079-1:2004, EN 60079-7:2007, IEC 60079-18:2009 Ed 3, EN 61241-1:2004 • IECEx certificate: IECEx SIR 09.0121X, IEC 60079-0:2007-10 Edition: 5, IEC 60079-1:2003 Edition: 5, IEC 60079-18:2009 Edition: 3, IEC 60079-7:2006-07 Edition: 4, IEC 61241-1:2004 Edition: 1 • Inmetro certificate: 10-IEx-0011X BExCP3A/B-PT Tool Reset Call Point The BExCP3A-PT and BExCP3B-PT push button, tool resettable manual call points are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards. The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The push button is user resettable via the use of the special key supplied with the unit. The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated. Specification: BExCP3A-PT: II 2G Ex e d IIC T6 Gb II 2D Ex t IIIC T60°C Db IP66 BExCP3B-PT: II 2G Ex e d mb IIC T4 Gb II 2D Ex t IIIC T70°C Db IP66 Ambient: Ta = -40°C to +55°C (+50°C for BExCP3B) Ingress protection: IP66 Housing material: Marine grade copper free LM6 Aluminium Housing finish: Phosphated & powder coated finish: anti-corrosion. Colour: RAL3000 Red (others available on request) Cable entries: 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries. Stopping plugs: 2 x Ex e nylon plugs as standard Brass and stainless steel plugs optional Terminals: 6 x 4.0mm² cables. Versions: Version: Category: Voltage: Switch rating: Monitoring Terminals: Cable Weight: Resistors: entries: BExCP3A-PT II 2G Ex e d IIC T6 Gb 250V ac Max. 5.0A Max. N 6 x 4mm² 2 x M20 0.8Kg II 2D Ex t IIIC T60°C Db 50V dc Max. 1.0A Max. Top/Bottom IP66 1 x M20 Ta = -40°C to +55°C Left/Right Nominal Maximum Min. EOL / Voltage: Voltage: Series Value: BExCP3B-PT II 2G Ex e d mb IIC T4 Gb 56V dc Max. 48V 56V 1K8 Y 6 x 4mm² 2 x M20 0.8Kg II 2D Ex t IIIC T70°C Db Rating: 24V 28V 470R or Top/Bottom IP66 <50V: 1.0A 12V 15V 120R 8 x 2.5mm² 1 x M20 Ta = -40°C to +50°C >50V: 0.75A 6V 9V 47R DIN rail Left/Right Part Codes: Type: Terminals: Duty Label: Colour: Nominal Voltage E.O.L Resistor: Series Resistor: BExCP3A-PT ST NL RD 48V ExxxR SxxxR BExCP3B-PT DR DL 24V 12V 6V ST: Standard NL: No label (std) RD: Red (std) System Voltage xxx: Res. value xxx: Res. value DR: DIN rail DL: Duty Label Contact sales only required e.g.: E470R e.g.: S2K2R ‘DR’ option Specify content for other on BExCP3B Only available on Only available on only on BExCP3B when ordering. colour options BExCP3B version BExCP3B version version e.g. BExCP3A-PT-ST-NL-RD : BEx-CP3A Break glass call point with standard terminals and no duty label. Red housing e.g. BExCP3B-PT-DR-NL-RD-24V-E470R : BEx-CP3B Break glass call point with DIN rail terminals, no duty label, 24V supply voltage with a 470 Ohm end of line resistor. Red housing. 95 mm 16.50 mm 9 mm 76 mm 98 mm 101.7 mm 78.40 mm 58.25 mm Ø 5 MOUNTING HOLES 4 OFF
