Features:
The products in the Hootronic range have 5 user
selectable ‘traditional’ sounds including:
• Tone 1 : Industrial Hooter
• Tone 2 : High Frequency Mechanical Siren
• Tone 3 : Medium Frequency Mechanical Siren
• Tone 4 : Electro Mechanical Buzzer
• Tone 5 : Mechanical Bell
Each of these sounds have two additional, remotely
selectable, alarm stages.
Remote switch generates genuine ‘tail off’ to sound
when alarm is terminated.
• Automatic synchronisation on multi-sounder system.
• Continuously rated.
• Stainless steel fixings.
• Unit can be mounted using external lugs or internal
BESA compatible fixing positions.
• Duplicate cable terminations
(in & out for daisy-chain installations).
• Tropicalisation available on request.

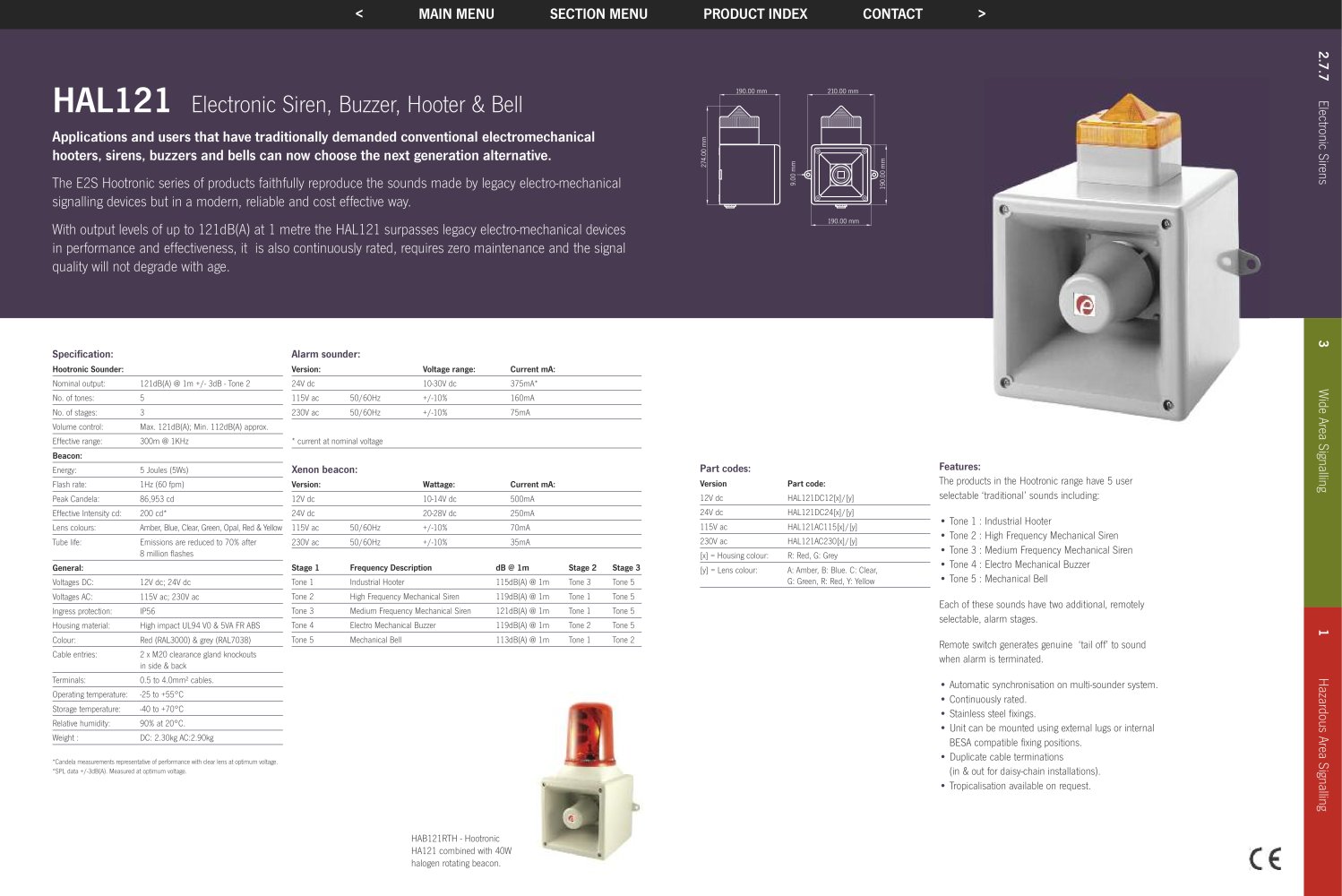

HAL121 Electronic Siren, Buzzer, Hooter & Bell
Applications and users that have traditionally demanded conventional electromechanical
hooters, sirens,
buzzers and bells can now choose the next generation alternative.
The E2S Hootronic series of products faithfully reproduce the sounds made by legacy electro-mechanical
signalling devices but in a modern, reliable and cost effective way.
With output levels of up to 121dB(A) at 1 metre the HAL121 surpasses legacy electro-mechanical devices
in performance and effectiveness, it is also continuously rated, requires zero maintenance and the signal
quality will not degrade with age.
Specification:
Hootronic Sounder:
Nominal output: 121dB(A) @ 1m +/- 3dB - Tone 2
No. of tones: 5
No. of stages: 3
Volume control: Max. 121dB(A); Min. 112dB(A) approx.
Effective range: 300m @ 1KHz
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 86,953 cd
Effective Intensity cd: 200 cd*
Lens colours: Amber, Blue, Clear, Green, Opal, Red & Yellow
Tube life: Emissions are reduced to 70% after
8 million flashes
General:
Voltages DC: 12V dc; 24V dc
Voltages AC: 115V ac; 230V ac
Ingress protection: IP56
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000) & grey (RAL7038)
Cable entries: 2 x M20 clearance gland knockouts
in side & back
Terminals: 0.5 to 4.0mm˛ cables.
Operating temperature: -25 to +55°C
Storage temperature: -40 to +70°C
Relative humidity: 90% at 20°C.
Weight : DC: 2.30kg AC:2.90kg
Alarm sounder:
Version: Voltage range: Current mA:
24V dc 10-30V dc 375mA*
115V ac 50/60Hz +/-10% 160mA
230V ac 50/60Hz +/-10% 75mA
* current at nominal voltage
Xenon
beacon:
Version: Wattage: Current mA:
12V dc 10-14V dc 500mA
24V dc 20-28V dc 250mA
115V ac 50/60Hz +/-10% 70mA
230V ac 50/60Hz +/-10% 35mA
Stage 1 Frequency Description dB @ 1m Stage 2 Stage 3
Tone 1 Industrial Hooter 115dB(A) @ 1m Tone 3 Tone 5
Tone 2 High Frequency Mechanical Siren 119dB(A) @ 1m Tone 1 Tone 5
Tone 3 Medium Frequency Mechanical Siren 121dB(A) @ 1m Tone 1 Tone 5
Tone 4 Electro Mechanical Buzzer 119dB(A) @ 1m Tone 2 Tone 5
Tone 5 Mechanical Bell 113dB(A) @ 1m Tone 1 Tone 2
Part codes:
Version Part code:
12V dc HAL121DC12[x]/[y]
24V dc HAL121DC24[x]/[y]
115V ac HAL121AC115[x]/[y]
230V ac HAL121AC230[x]/[y]
[x] = Housing colour: R: Red, G: Grey
[y] = Lens colour: A: Amber, B: Blue. C: Clear,
G: Green, R: Red, Y: Yellow
HAB121RTH - Hootronic
HA121 combined with 40W
halogen rotating
beacon.
*Candela measurements representative of performance with clear lens at optimum voltage.
*SPL data +/-3dB(A). Measured at optimum voltage.
274.00 mm
190.00 mm
190.00 mm
190.00 mm
9.00 mm
210.00 mm
