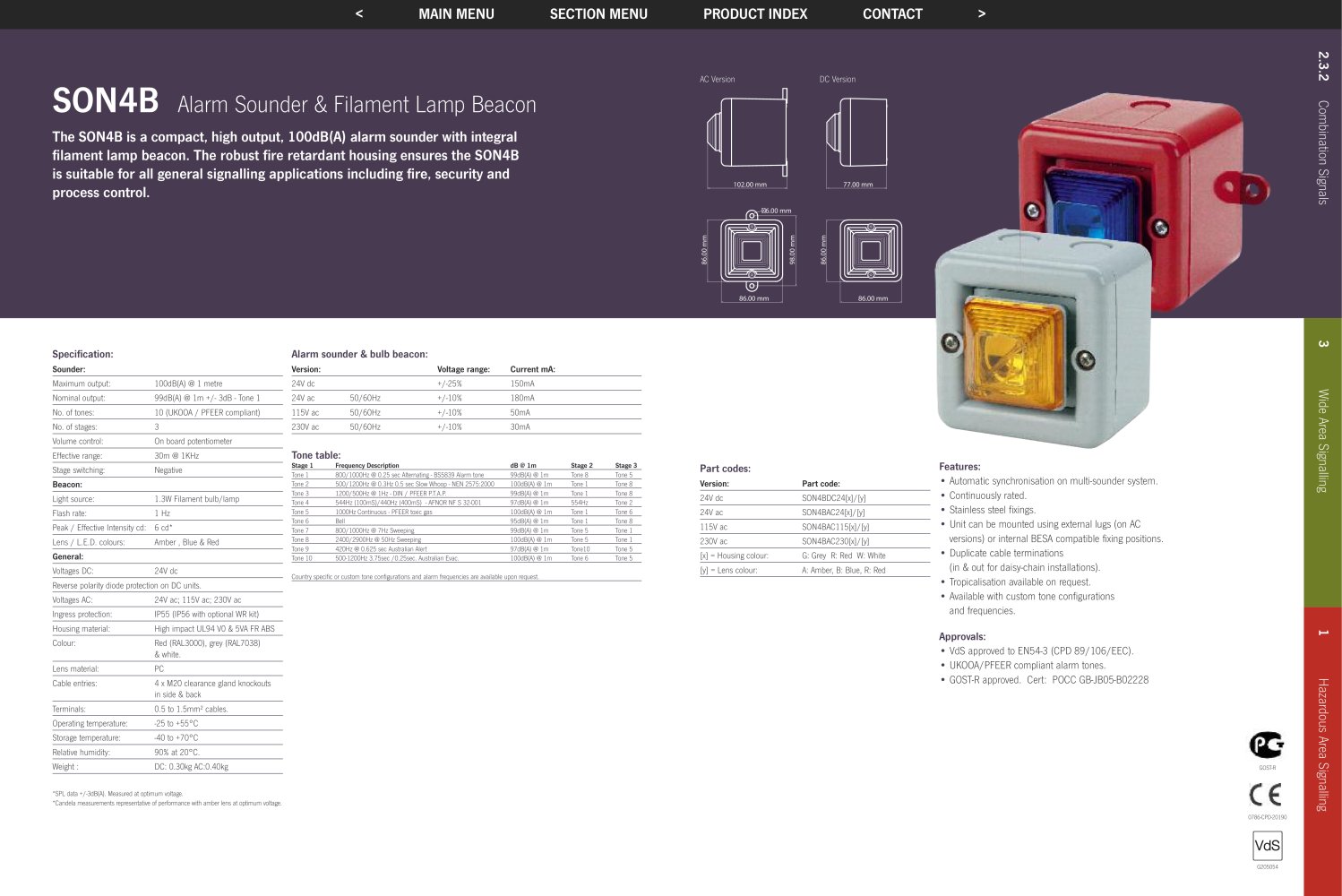

0786-CPD-20190 GOST-R G205054 SON4B Alarm Sounder & Filament Lamp Beacon The SON4B is a compact, high output, 100dB(A) alarm sounder with integral filament lamp beacon. The robust fire retardant housing ensures the SON4B is suitable for all general signalling applications including fire, security and process control. Specification: Sounder: Maximum output: 100dB(A) @ 1 metre Nominal output: 99dB(A) @ 1m +/- 3dB - Tone 1 No. of tones: 10 (UKOOA / PFEER compliant) No. of stages: 3 Volume control: On board potentiometer Effective range: 30m @ 1KHz Stage switching: Negative Beacon: Light source: 1.3W Filament bulb/lamp Flash rate: 1 Hz Peak / Effective Intensity cd: 6 cd* Lens / L.E.D. colours: Amber , Blue & Red General: Voltages DC: 24V dc Reverse polarity diode protection on DC units. Voltages AC: 24V ac; 115V ac; 230V ac Ingress protection: IP55 (IP56 with optional WR kit) Housing material: High impact UL94 V0 & 5VA FR ABS Colour: Red (RAL3000), grey (RAL7038) & white. Lens material: PC Cable entries: 4 x M20 clearance gland knockouts in side & back Terminals: 0.5 to 1.5mm² cables. Operating temperature: -25 to +55°C Storage temperature: -40 to +70°C Relative humidity: 90% at 20°C. Weight : DC: 0.30kg AC:0.40kg Alarm sounder & bulb beacon: Version: Voltage range: Current mA: 24V dc +/-25% 150mA 24V ac 50/60Hz +/-10% 180mA 115V ac 50/60Hz +/-10% 50mA 230V ac 50/60Hz +/-10% 30mA Tone table: Stage 1 Frequency Description dB @ 1m Stage 2 Stage 3 Tone 1 800/1000Hz @ 0.25 sec Alternating - BS5839 Alarm tone 99dB(A) @ 1m Tone 8 Tone 5 Tone 2 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop - NEN 2575:2000 100dB(A) @ 1m Tone 1 Tone 8 Tone 3 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. 99dB(A) @ 1m Tone 1 Tone 8 Tone 4 544Hz (100mS)/440Hz (400mS) - AFNOR NF S 32-001 97dB(A) @ 1m 554Hz Tone 2 Tone 5 1000Hz Continuous - PFEER toxic gas 100dB(A) @ 1m Tone 1 Tone 6 Tone 6 Bell 95dB(A) @ 1m Tone 1 Tone 8 Tone 7 800/1000Hz @ 7Hz Sweeping 99dB(A) @ 1m Tone 5 Tone 1 Tone 8 2400/2900Hz @ 50Hz Sweeping 100dB(A) @ 1m Tone 5 Tone 1 Tone 9 420Hz @ 0.625 sec Australian Alert 97dB(A) @ 1m Tone10 Tone 5 Tone 10 500-1200Hz 3.75sec /0.25sec. Australian Evac. 100dB(A) @ 1m Tone 6 Tone 5 Country specific or custom tone configurations and alarm frequencies are available upon request. Part codes: Version: Part code: 24V dc SON4BDC24[x]/[y] 24V ac SON4BAC24[x]/[y] 115V ac SON4BAC115[x]/[y] 230V ac SON4BAC230[x]/[y] [x] = Housing colour: G: Grey R: Red W: White [y] = Lens colour: A: Amber, B: Blue, R: Red 6.00 mm 98.00 mm 86.00 mm 86.00 mm 102.00 mm 86.00 mm 86.00 mm 77.00 mm AC Version DC Version *SPL data +/-3dB(A). Measured at optimum voltage. *Candela measurements representative of performance with amber lens at optimum voltage. 2.3.2 Combination Signals Hazardous 3 Wide Area Signalling 1 Area Signalling Features: • Automatic synchronisation on multi-sounder system. • Continuously rated. • Stainless steel fixings. • Unit can be mounted using external lugs (on AC versions) or internal BESA compatible fixing positions. • Duplicate cable terminations (in & out for daisy-chain installations). • Tropicalisation available on request. • Available with custom tone configurations and frequencies. Approvals: • VdS approved to EN54-3 (CPD 89/106/EEC). • UKOOA/PFEER compliant alarm tones. • GOST-R approved. Cert: POCC GB-JB05-B02228
