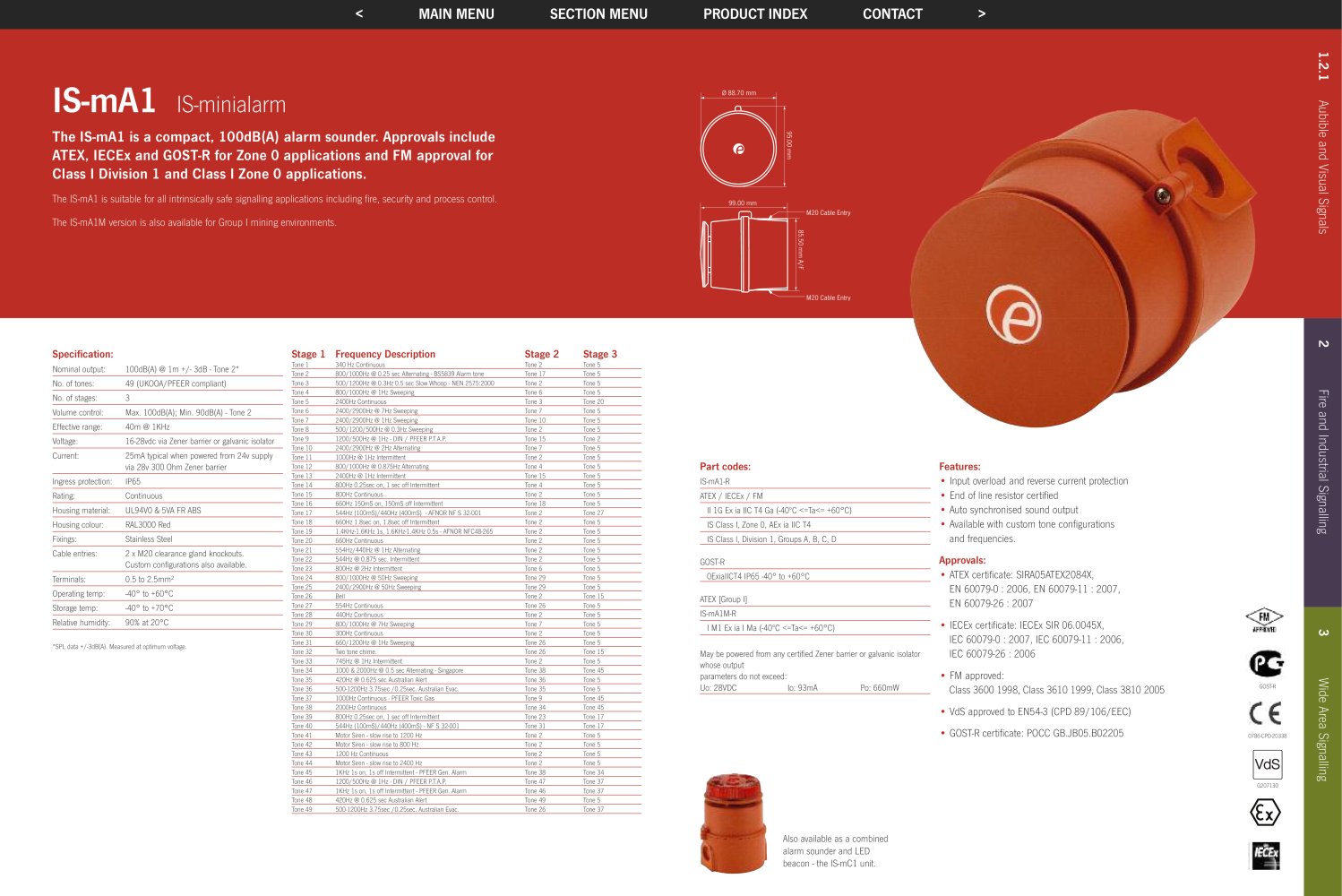

Part codes: IS-mA1-R ATEX / IECEx / FM II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C) IS Class I, Zone 0, AEx ia IIC T4 IS Class l, Division 1, Groups A, B, C, D GOST-R 0ExiaIICT4 IP65 -40° to +60°C ATEX [Group I] IS-mA1M-R I M1 Ex ia I Ma (-40ºC <=Ta<= +60°C) May be powered from any certified Zener barrier or galvanic isolator whose output parameters do not exceed: Uo: 28VDC Io: 93mA Po: 660mW Features: • Input overload and reverse current protection • End of line resistor certified • Auto synchronised sound output • Available with custom tone configurations and frequencies. Approvals: • ATEX certificate: SIRA05ATEX2084X, EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-26 : 2007 • IECEx certificate: IECEx SIR 06.0045X, IEC 60079-0 : 2007, IEC 60079-11 : 2006, IEC 60079-26 : 2006 • FM approved: Class 3600 1998, Class 3610 1999, Class 3810 2005 • VdS approved to EN54-3 (CPD 89/106/EEC) • GOST-R certificate: POCC GB.JB05.B02205 Ø 88.70 mm 95.00 mm 85.50 mm A/F 99.00 mm M20 Cable Entry M20 Cable Entry Also available as a combined alarm sounder and LED beacon - the IS-mC1 unit. IS-mA1 IS-minialarm The IS-mA1 is a compact, 100dB(A) alarm sounder. Approvals include ATEX, IECEx and GOST-R for Zone 0 applications and FM approval for Class I Division 1 and Class I Zone 0 applications. The IS-mA1 is suitable for all intrinsically safe signalling applications including fire, security and process control. The IS-mA1M version is also available for Group I mining environments. Stage 1 Frequency Description Stage 2 Stage 3 Tone 1 340 Hz Continuous Tone 2 Tone 5 Tone 2 800/1000Hz @ 0.25 sec Alternating - BS5839 Alarm tone Tone 17 Tone 5 Tone 3 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop - NEN 2575:2000 Tone 2 Tone 5 Tone 4 800/1000Hz @ 1Hz Sweeping Tone 6 Tone 5 Tone 5 2400Hz Continuous Tone 3 Tone 20 Tone 6 2400/2900Hz @ 7Hz Sweeping Tone 7 Tone 5 Tone 7 2400/2900Hz @ 1Hz Sweeping Tone 10 Tone 5 Tone 8 500/1200/500Hz @ 0.3Hz Sweeping Tone 2 Tone 5 Tone 9 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. Tone 15 Tone 2 Tone 10 2400/2900Hz @ 2Hz Alternating Tone 7 Tone 5 Tone 11 1000Hz @ 1Hz Intermittent Tone 2 Tone 5 Tone 12 800/1000Hz @ 0.875Hz Alternating Tone 4 Tone 5 Tone 13 2400Hz @ 1Hz Intermittent Tone 15 Tone 5 Tone 14 800Hz 0.25sec on, 1 sec off Intermittent Tone 4 Tone 5 Tone 15 800Hz Continuous Tone 2 Tone 5 Tone 16 660Hz 150mS on, 150mS off Intermittent Tone 18 Tone 5 Tone 17 544Hz (100mS)/440Hz (400mS) - AFNOR NF S 32-001 Tone 2 Tone 27 Tone 18 660Hz 1.8sec on, 1.8sec off Intermittent Tone 2 Tone 5 Tone 19 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s - AFNOR NFC48-265 Tone 2 Tone 5 Tone 20 660Hz Continuous Tone 2 Tone 5 Tone 21 554Hz/440Hz @ 1Hz Alternating Tone 2 Tone 5 Tone 22 544Hz @ 0.875 sec. Intermittent Tone 2 Tone 5 Tone 23 800Hz @ 2Hz Intermittent Tone 6 Tone 5 Tone 24 800/1000Hz @ 50Hz Sweeping Tone 29 Tone 5 Tone 25 2400/2900Hz @ 50Hz Sweeping Tone 29 Tone 5 Tone 26 Bell Tone 2 Tone 15 Tone 27 554Hz Continuous Tone 26 Tone 5 Tone 28 440Hz Continuous Tone 2 Tone 5 Tone 29 800/1000Hz @ 7Hz Sweeping Tone 7 Tone 5 Tone 30 300Hz Continuous Tone 2 Tone 5 Tone 31 660/1200Hz @ 1Hz Sweeping Tone 26 Tone 5 Tone 32 Two tone chime. Tone 26 Tone 15 Tone 33 745Hz @ 1Hz Intermittent Tone 2 Tone 5 Tone 34 1000 & 2000Hz @ 0.5 sec Alternating - Singapore Tone 38 Tone 45 Tone 35 420Hz @ 0.625 sec Australian Alert Tone 36 Tone 5 Tone 36 500-1200Hz 3.75sec /0.25sec. Australian Evac. Tone 35 Tone 5 Tone 37 1000Hz Continuous - PFEER Toxic Gas Tone 9 Tone 45 Tone 38 2000Hz Continuous Tone 34 Tone 45 Tone 39 800Hz 0.25sec on, 1 sec off Intermittent Tone 23 Tone 17 Tone 40 544Hz (100mS)/440Hz (400mS) - NF S 32-001 Tone 31 Tone 17 Tone 41 Motor Siren - slow rise to 1200 Hz Tone 2 Tone 5 Tone 42 Motor Siren - slow rise to 800 Hz Tone 2 Tone 5 Tone 43 1200 Hz Continuous Tone 2 Tone 5 Tone 44 Motor Siren - slow rise to 2400 Hz Tone 2 Tone 5 Tone 45 1KHz 1s on, 1s off Intermittent - PFEER Gen. Alarm Tone 38 Tone 34 Tone 46 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. Tone 47 Tone 37 Tone 47 1KHz 1s on, 1s off Intermittent - PFEER Gen. Alarm Tone 46 Tone 37 Tone 48 420Hz @ 0.625 sec Australian Alert Tone 49 Tone 5 Tone 49 500-1200Hz 3.75sec /0.25sec. Australian Evac. Tone 26 Tone 37 Specification: Nominal output: 100dB(A) @ 1m +/- 3dB - Tone 2* No. of tones: 49 (UKOOA/PFEER compliant) No. of stages: 3 Volume control: Max. 100dB(A); Min. 90dB(A) - Tone 2 Effective range: 40m @ 1KHz Voltage: 16-28vdc via Zener barrier or galvanic isolator Current: 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier Ingress protection: IP65 Rating: Continuous Housing material: UL94V0 & 5VA FR ABS Housing colour: RAL3000 Red Fixings: Stainless Steel Cable entries: 2 x M20 clearance gland knockouts. Custom configurations also available. Terminals: 0.5 to 2.5mm² Operating temp: -40° to +60°C Storage temp: -40° to +70°C Relative humidity: 90% at 20°C *SPL data +/-3dB(A). Measured at optimum voltage. 1.2.1 Aubible and Visual Signals 2 Fire and Industrial Signalling 3 Wide Area Signalling G207130 GOST-R 0786-CPD-20338
