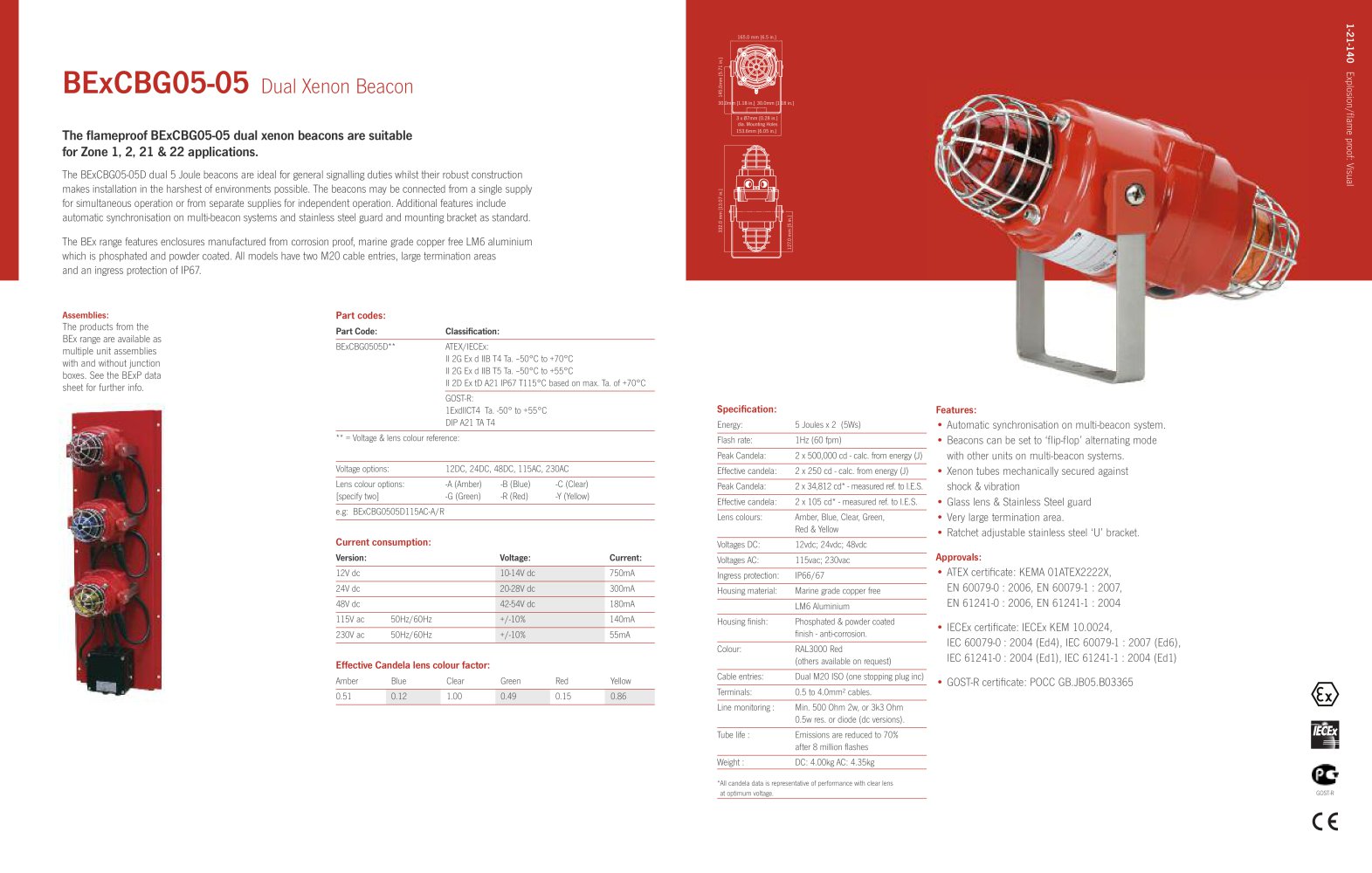

E2S Datasheet 1.4.6 v10a Features: • Automatic synchronisation on multi-beacon system. • Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems. • Xenon tubes mechanically secured against shock & vibration • Glass lens & Stainless Steel guard • Very large termination area. • Ratchet adjustable stainless steel ‘U’ bracket. Approvals: • ATEX certificate: KEMA 01ATEX2222X, EN 60079-0 : 2006, EN 60079-1 : 2007, EN 61241-0 : 2006, EN 61241-1 : 2004 • IECEx certificate: IECEx KEM 10.0024, IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6), IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1) • GOST-R certificate: POCC GB.JB05.B02205 • Inmetro certificate: 10-IEx-0010 Part codes: Part Code: Classification: BExCBG0505D** ATEX/IECEx: II 2G Ex d IIB T4 Ta. –50°C to +70°C II 2G Ex d IIB T5 Ta. –50°C to +55°C II 2D Ex tD A21 IP67 T115°C based on max. Ta. of +70°C GOST-R: 1ExdIICT4 Ta. -50° to +55°C DIP A21 TA T4 ** = Voltage & lens colour reference: Voltage options: 12DC, 24DC, 48DC, 115AC, 230AC Lens colour options: -A (Amber) [specify two] -B (Blue) -C (Clear) -G (Green) -R (Red) -Y (Yellow) e.g: BExCBG0505D115AC-A/R GOST-R BExCBG05-05 Dual Xenon Beacon The flameproof BExCBG05-05 dual xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. The BExCBG05-05D dual 5 Joule beacons are ideal for general signalling duties whilst their robust construction makes installation in the harshest of environments possible. The beacons may be connected from a single supply for simultaneous operation or from seperate supplies for independent operation. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard. The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. All models have two M20 cable entries, large termination areas and an ingress protection of IP67.
