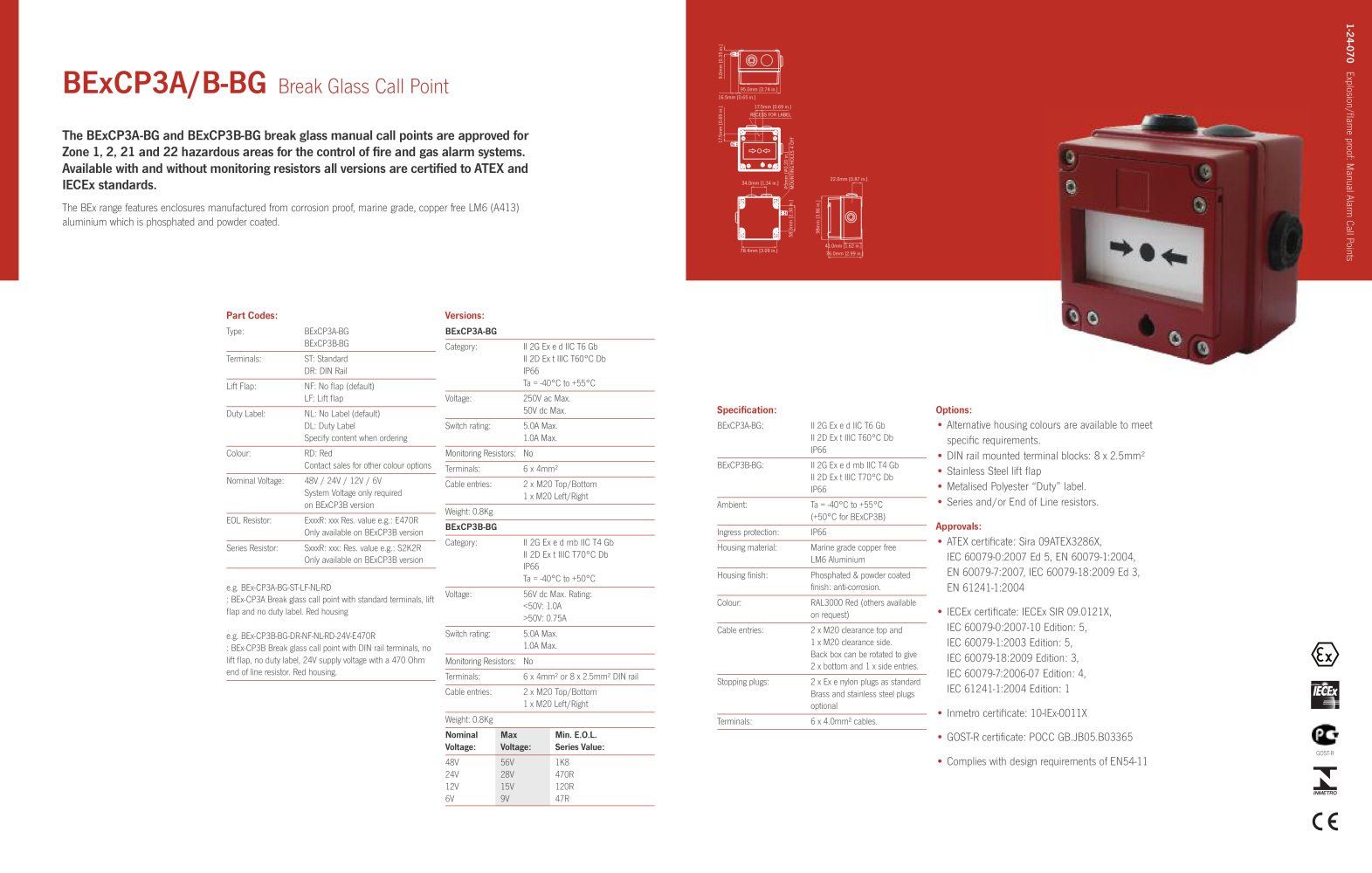

E2S Datasheet 1.3.1 v10a BExCP3A/B-BG Break Glass Call Point The BExCP3A-BG and BExCP3B-BG break glass manual call points are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards. The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated. Options: • Alternative housing colours are available to meet specific requirements. • DIN rail mounted terminal blocks: 8 x 2.5mm² • Stainless Steel lift flap • Metalised Polyester “Duty” label. • Series and/or End of Line resistors. Approvals: • ATEX certificate: Sira 09ATEX3286X, IEC 60079-0:2007 Ed 5, EN 60079-1:2004, EN 60079-7:2007, IEC 60079-18:2009 Ed 3, EN 61241-1:2004 • IECEx certificate: IECEx SIR 09.0121X, IEC 60079-0:2007-10 Edition: 5, IEC 60079-1:2003 Edition: 5, IEC 60079-18:2009 Edition: 3, IEC 60079-7:2006-07 Edition: 4, IEC 61241-1:2004 Edition: 1 • Inmetro certificate: 10-IEx-0011X Specification: BExCP3A-BG: II 2G Ex e d IIC T6 Gb II 2D Ex t IIIC T60°C Db IP66 BExCP3B-BG: II 2G Ex e d mb IIC T4 Gb II 2D Ex t IIIC T70°C Db IP66 Ambient: Ta = -40°C to +55°C (+50°C for BExCP3B) Ingress protection: IP66 Housing material: Marine grade copper free LM6 Aluminium Housing finish: Phosphated & powder coated finish: anti-corrosion. Colour: RAL3000 Red (others available on request) Cable entries: 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries. Stopping plugs: 2 x Ex e nylon plugs as standard Brass and stainless steel plugs optional Terminals: 6 x 4.0mm² cables.
