BExBG05 Xenon Beacon for Zone 1&2, 21&22 - E2S - #1

Text version of the page

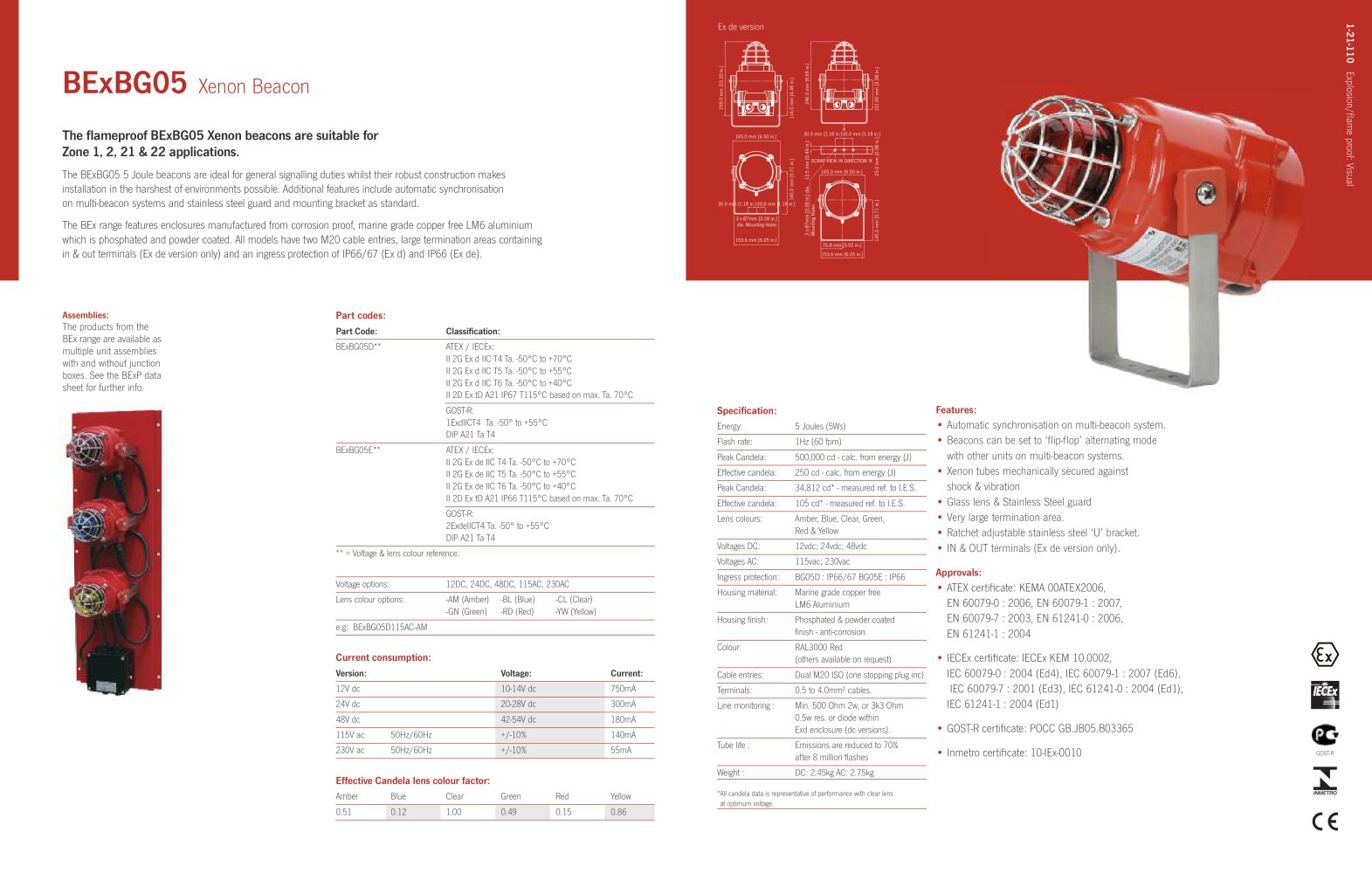

E2S Datasheet 1.4.3 v10a BExBG05 Xenon Beacon The flameproof BExBG05 Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. The BExBG05 5 Joule beacons are ideal for general signalling duties whilst their robust construction makes installation in the harshest of environments possible. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard. The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. All models have two M20 cable entries, large termination areas containing in & out terminals (Ex de version only) and an ingress protection of IP66/67 (Ex d) and IP66 (Ex de). Features: • Automatic synchronisation on multi-beacon system. • Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems. • Xenon tubes mechanically secured against shock & vibration • Glass lens & Stainless Steel guard • Very large termination area. • Ratchet adjustable stainless steel ‘U’ bracket. • IN & OUT terminals (Ex de version only). Approvals: • ATEX certificate: KEMA 00ATEX2006, EN 60079-0 : 2006, EN 60079-1 : 2007, EN 60079-7 : 2003, EN 61241-0 : 2006, EN 61241-1 : 2004 • IECEx certificate: IECEx KEM 10.0002, IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6), IEC 60079-7 : 2001 (Ed3), IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1) • GOST-R certificate: POCC GB.JB05.B02205 • Inmetro certificate: 10-IEx-0010 GOST-R
