A100 'AlertAlarm' Sounder - E2S - #1

Text version of the page

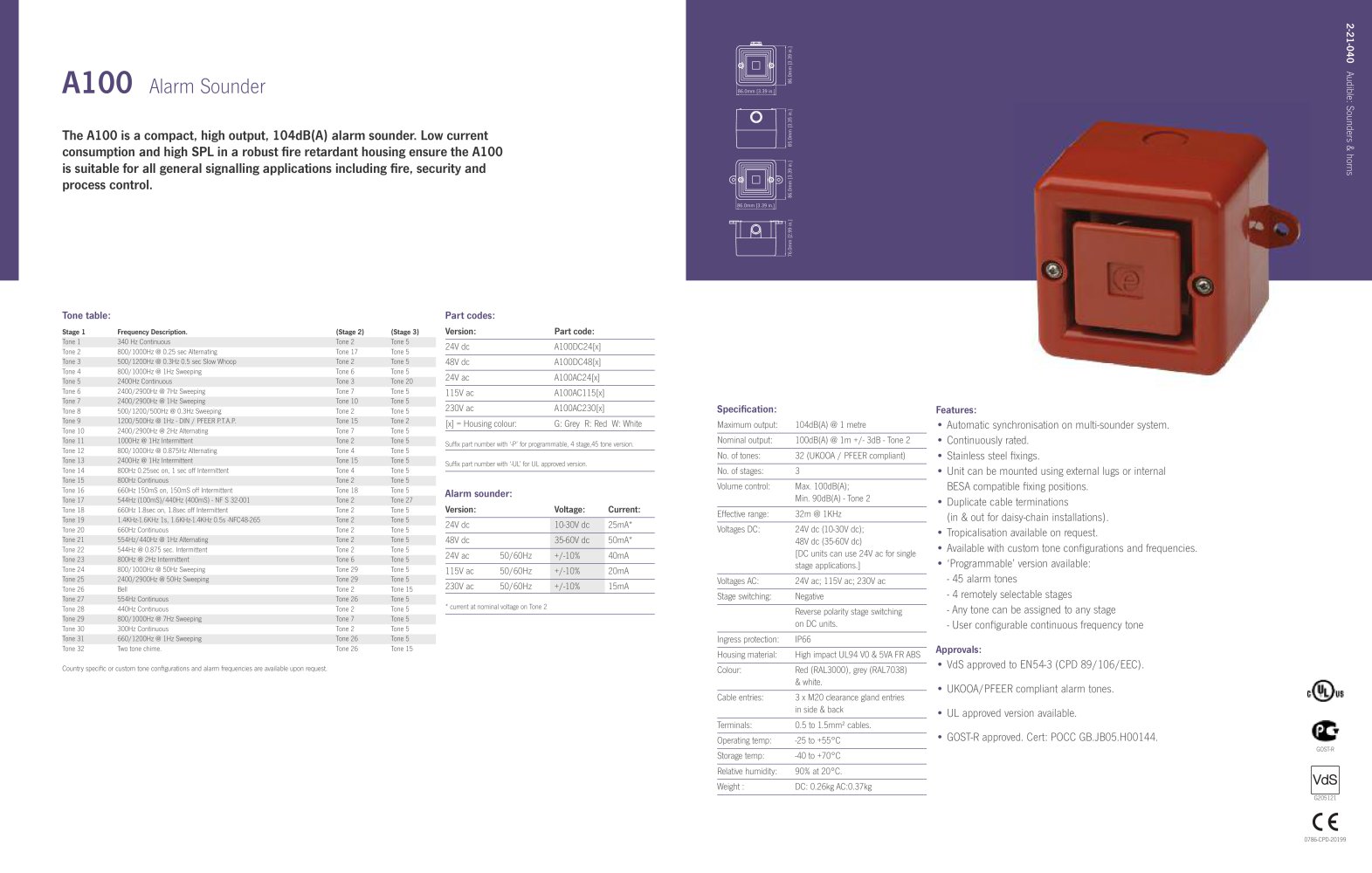

E2S Datasheet 2.2.7 v10a G205121 GOST-R 0786-CPD-20199 Features: • Automatic synchronisation on multi-sounder system. • Continuously rated. • Stainless steel fixings. • Unit can be mounted using external lugs or internal BESA compatible fixing positions. • Duplicate cable terminations (in & out for daisy-chain installations). • Tropicalisation available on request. • Available with custom tone configurations and frequencies. • ‘Programmable’ version available: - 45 alarm tones - 4 remotely selectable stages - Any tone can be assigned to any stage - User configurable continuous frequency tone Approvals: • VdS approved to EN54-3 (CPD 89/106/EEC). • UKOOA/PFEER compliant alarm tones. • UL approved version available. • GOST-R approved. Cert: POCC GB-JB05-B02228 Part codes: Version: Part code: 24V dc A100DC24[x] 48V dc A100DC48[x] 24V ac A100AC24[x] 115V ac A100AC115[x] 230V ac A100AC230[x] [x] = Housing colour: G: Grey R: Red W: White Suffix part number with ‘-P’ for programmable, 4 stage, 45 tone version. Suffix part number with ‘-UL’ for UL approved version. A100 Alarm Sounder The A100 is a compact, high output, 104dB(A) alarm sounder. Low current consumption and high SPL in a robust fire retardant housing ensure the A100 is suitable for all general signalling applications including fire, security and process control. Available as a combination unit with Xenon, LED or filament bulb beacon - see the AL100 from the AlertAlight range.
