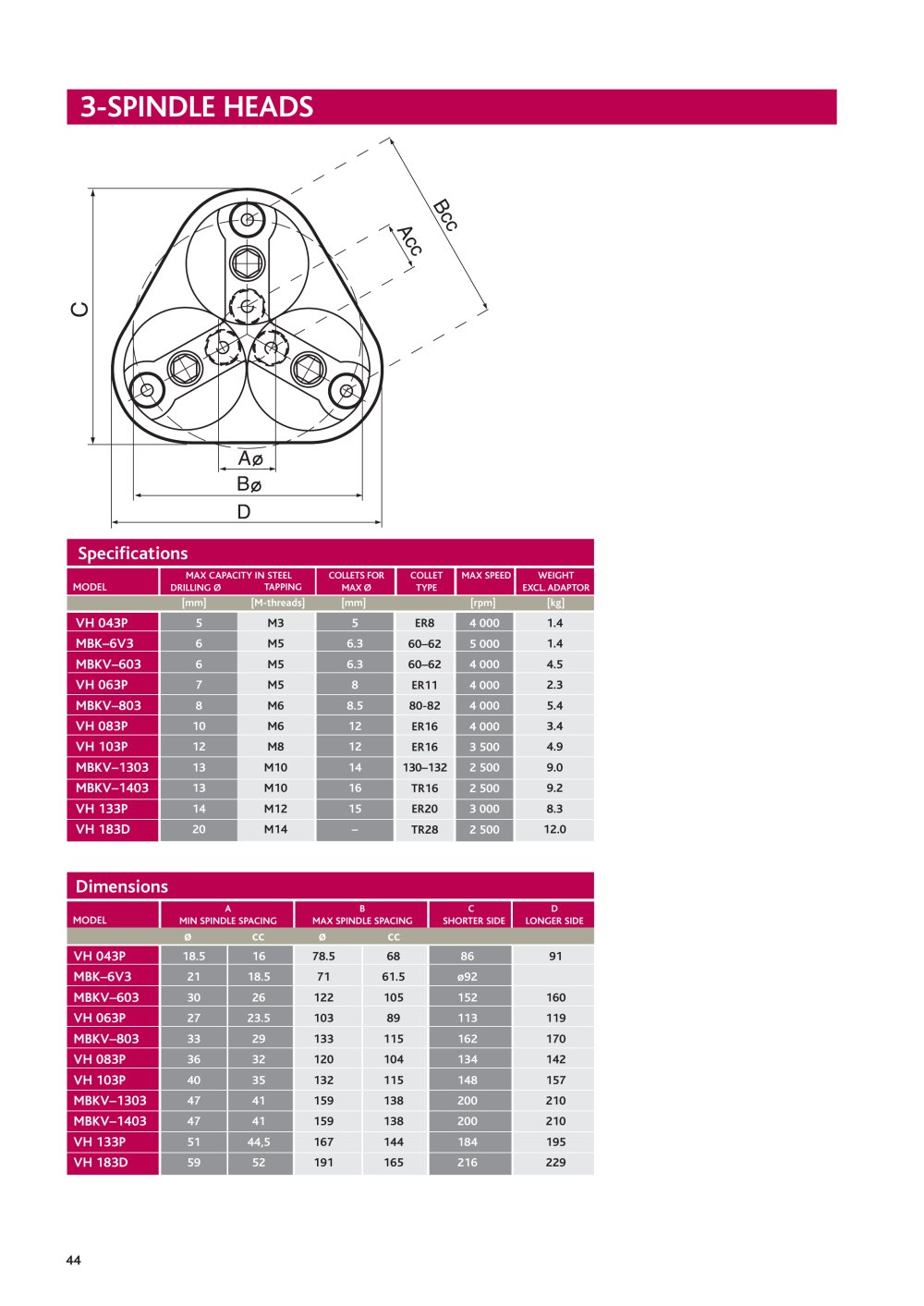

3-SPINDLE HEADS

A0 B0 D

Specifications


	MODEL	MAX CAPACITY IN STEEL DRILLING 0 TAPPING		COLLETS FOR MAX 0	COLLET TYPE	MAX SPEED	WEIGHT EXCL.ADAPTOR
		[mm]	[M-threads]	[mm]		[rpm]	[kg]
	VH 043P	5	M3	5	ER8	4 000	1.4
	MBK-6V3	6	M5	6.3	60-62	5 000	1.4
	MBKV-603	6	M5	6.3	60-62	4 000	4.5
	VH 063P	7	M5	8	ER11	4 000	2.3
	MBKV-803	8	M6	8.5	80-82	4 000	5.4
	VH 083P	10	M6	12	ER16	4 000	3.4
	VH 103P	12	M8	12	ER16	3 500	4.9
	MBKV-1303	13	M10	14	130-132	2 500	9.0
	MBKV-1403	13	M10	16	TR16	2 500	9.2

	VH 133P		M12	15	ER20	3 000	8.3
	VH 183D	20	M14		TR28	2 500	12.0

Dimensions

A BCD

MODEL MIN SPINDLE SPACING MAX SPINDLE SPACING SHORTER SIDE LONGER SIDE


	VH 043P	18.5	16	78.5	68	86	91
	MBK-6V3	21	18.5	71	61.5	092
	MBKV-603	30	26	122	105	152	160
	VH 063P	27	23.5	103	89	113	119
	MBKV-803	33	29	133	115	162	170
	VH 083P	36	32	120	104	134	142
	VH 103P	40	35	132	115	148	157
	MBKV-1303	47	41	159	138	200	210
	MBKV-1403	47	41	159	138	200	210
	VH 133P	51	44,5	167	144	184	195
	VH 183D	59	52	191	165	216	229

44
