High Performance Thermal-Magnetic Circuit Breakers 410/520/530
4Pages

{{requestButtons}}

Catalog excerpts

High Performance Thermal-Magnetic Circuit Breakers 410/520/530 - 1

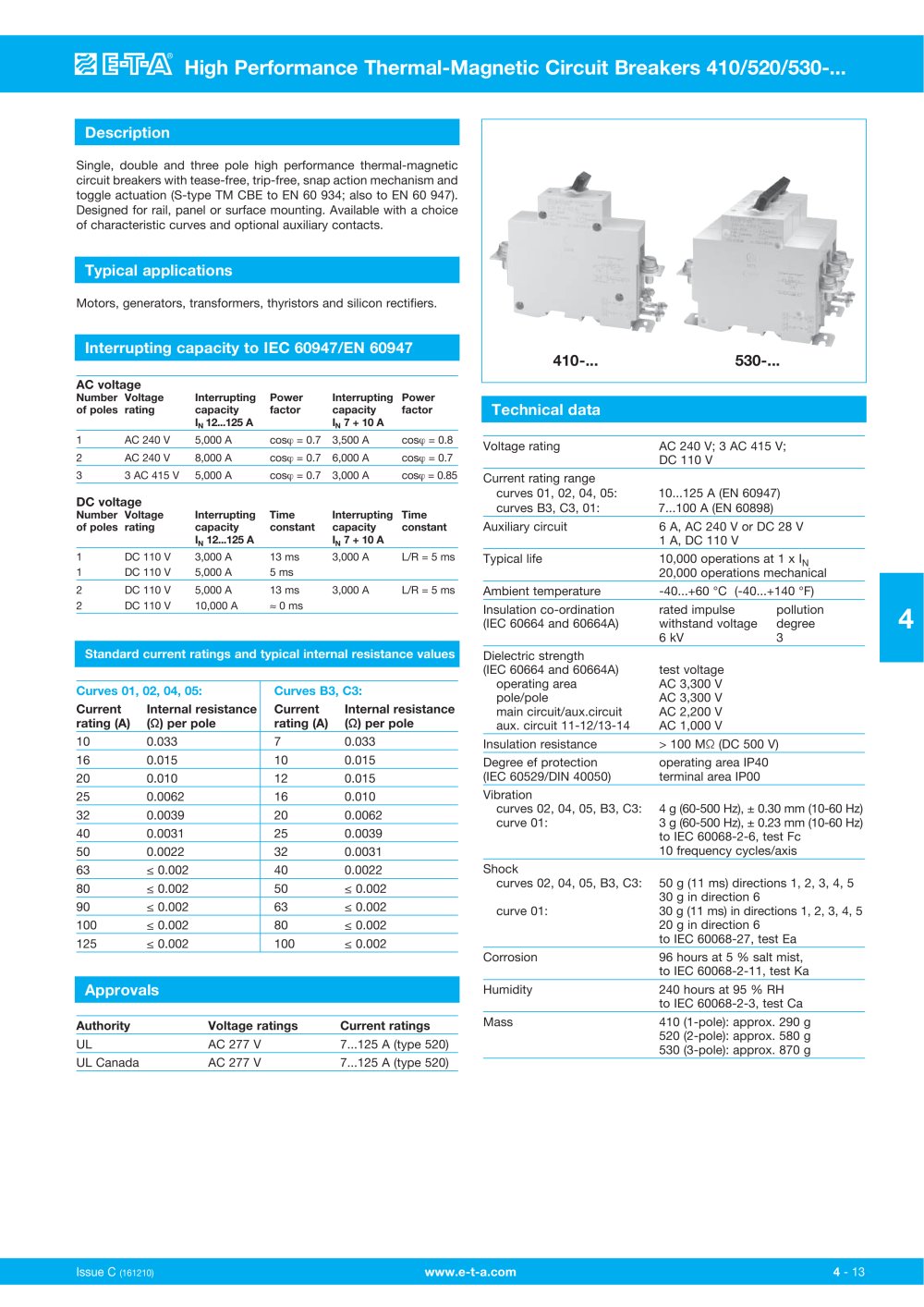

High Performance Thermal-Magnetic Circuit Breakers 410/520/530-... Issue C (161210) www.e-t-a.com 4 - 13 4 Curves 01, 02, 04, 05: Curves B3, C3: Current Internal resistance Current Internal resistance rating (A) (Ù) per pole rating (A) (Ù) per pole 10 0.033 7 0.033 16 0.015 10 0.015 20 0.010 12 0.015 25 0.0062 16 0.010 32 0.0039 20 0.0062 40 0.0031 25 0.0039 50 0.0022 32 0.0031 63 0.002 40 0.0022 80 0.002 50 0.002 90 0.002 63 0.002 100 0.002 80 0.002 125 0.002 100 0.002 Description Typical applications Interrupting capacity to IEC 60947/EN 60947 Approvals Technical data Single, double and three pole high performance thermal-magnetic circuit breakers with tease-free, trip-free, snap action mechanism and toggle actuation (S-type TM CBE to EN 60 934; also to EN 60 947). Designed for rail, panel or surface mounting. Available with a choice of characteristic curves and optional auxiliary contacts. Motors, generators, transformers, thyristors and silicon rectifiers. 410-... 530-... Voltage rating AC 240 V; 3 AC 415 V; DC 110 V Current rating range curves 01, 02, 04, 05: 10...125 A (EN 60947) curves B3, C3, 01: 7...100 A (EN 60898) Auxiliary circuit 6 A, AC 240 V or DC 28 V 1 A, DC 110 V Typical life 10,000 operations at 1 x IN 20,000 operations mechanical Ambient temperature -40...+60 °C (-40...+140 °F) Insulation co-ordination rated impulse pollution (IEC 60664 and 60664A) withstand voltage degree 6 kV 3 Dielectric strength (IEC 60664 and 60664A) test voltage operating area AC 3,300 V pole/pole AC 3,300 V main circuit/aux.circuit AC 2,200 V aux. circuit 11-12/13-14 AC 1,000 V Insulation resistance > 100 MÙ (DC 500 V) Degree ef protection operating area IP40 (IEC 60529/DIN 40050) terminal area IP00 Vibration curves 02, 04, 05, B3, C3: 4 g (60-500 Hz), ± 0.30 mm (10-60 Hz) curve 01: 3 g (60-500 Hz), ± 0.23 mm (10-60 Hz) to IEC 60068-2-6, test Fc 10 frequency cycles/axis Shock curves 02, 04, 05, B3, C3: 50 g (11 ms) directions 1, 2, 3, 4, 5 30 g in direction 6 curve 01: 30 g (11 ms) in directions 1, 2, 3, 4, 5 20 g in direction 6 to IEC 60068-27, test Ea Corrosion 96 hours at 5 % salt mist, to IEC 60068-2-11, test Ka Humidity 240 hours at 95 % RH to IEC 60068-2-3, test Ca Mass 410 (1-pole): approx. 290 g 520 (2-pole): approx. 580 g 530 (3-pole): approx. 870 g Authority Voltage ratings Current ratings UL AC 277 V 7...125 A (type 520) UL Canada AC 277 V 7...125 A (type 520) Standard current ratings and typical internal resistance values AC voltage Number Voltage Interrupting Power Interrupting Power of poles rating capacity factor capacity factor IN 12...125 A IN 7 + 10 A 1 AC 240 V 5,000 A cos = 0.7 3,500 A cos = 0.8 2 AC 240 V 8,000 A cos = 0.7 6,000 A cos = 0.7 3 3 AC 415 V 5,000 A cos = 0.7 3,000 A cos = 0.85 DC voltage Number Voltage Interrupting Time Interrupting Time of poles rating capacity constant capacity constant IN 12...125 A IN 7 + 10 A 1 DC 110 V 3,000 A 13 ms 3,000 A L/R = 5 ms 1 DC 110 V 5,000 A 5 ms 2 DC 110 V 5,000 A 13 ms 3,000 A L/R = 5 ms 2 DC 110 V 10,000 A 0 ms

Open the catalog to page 1
High Performance Thermal-Magnetic Circuit Breakers 410/520/530 - 2

High Performance Thermal-Magnetic Circuit Breakers 410/520/530-... 4 - 14 www.e-t-a.com Issue C (161210) 4 14 9 c a b M5 57 10 type 410 type 520 type 530 50 72 94 .551 .354 2.24 .394 a mm in. 1.97 2.84 3.70 61.5 83.5 105.5 b mm in. 2.42 3.29 4.15 70 92 114 c mm in. 2.76 3.62 4.49 surface mounting with mounting brackets -5 Surface mounting -1 rail mounting (DIN EN 50 022-35x7,5) -2 rail mounting on G profile panel mounting (DIN EN 50 035-G32) -4 -3 Ordering information Type No. 410 single pole (ratings > 125 A: suffix 17015 - parallel connection) 520 double pole 530 three pole Terminal...

Open the catalog to page 2
High Performance Thermal-Magnetic Circuit Breakers 410/520/530 - 4

High Performance Thermal-Magnetic Circuit Breakers 410/520/530-... 4 - 16 www.e-t-a.com Issue C (161210) 4 Accessories mounting hole 38 21 max. 4 1.2 24.5 44 53 40 53 62 59 35 22 ø4 38 max. 4 24.5 Splash cover (transparent), with fixing plate and screws (IP54) for type 410 X 211 118 01 Splash cover (transparent), with fixing plate and screws (IP54) for type 520 X 211 119 01 59+0.3 2.09 2.44 25+0.3 .984+.012 2.32+.012 .157 max .157 .965 .965 1.50 .047 .827 2.32 .866 1.38 2.09 max .157 1.2 21 .047 .827 25+0.3 .984+.012 35 ø4 .157 mounting hole 1.38 40+0.3 1.57+.012 1.50 1.57 1.73 protected...

Open the catalog to page 4
