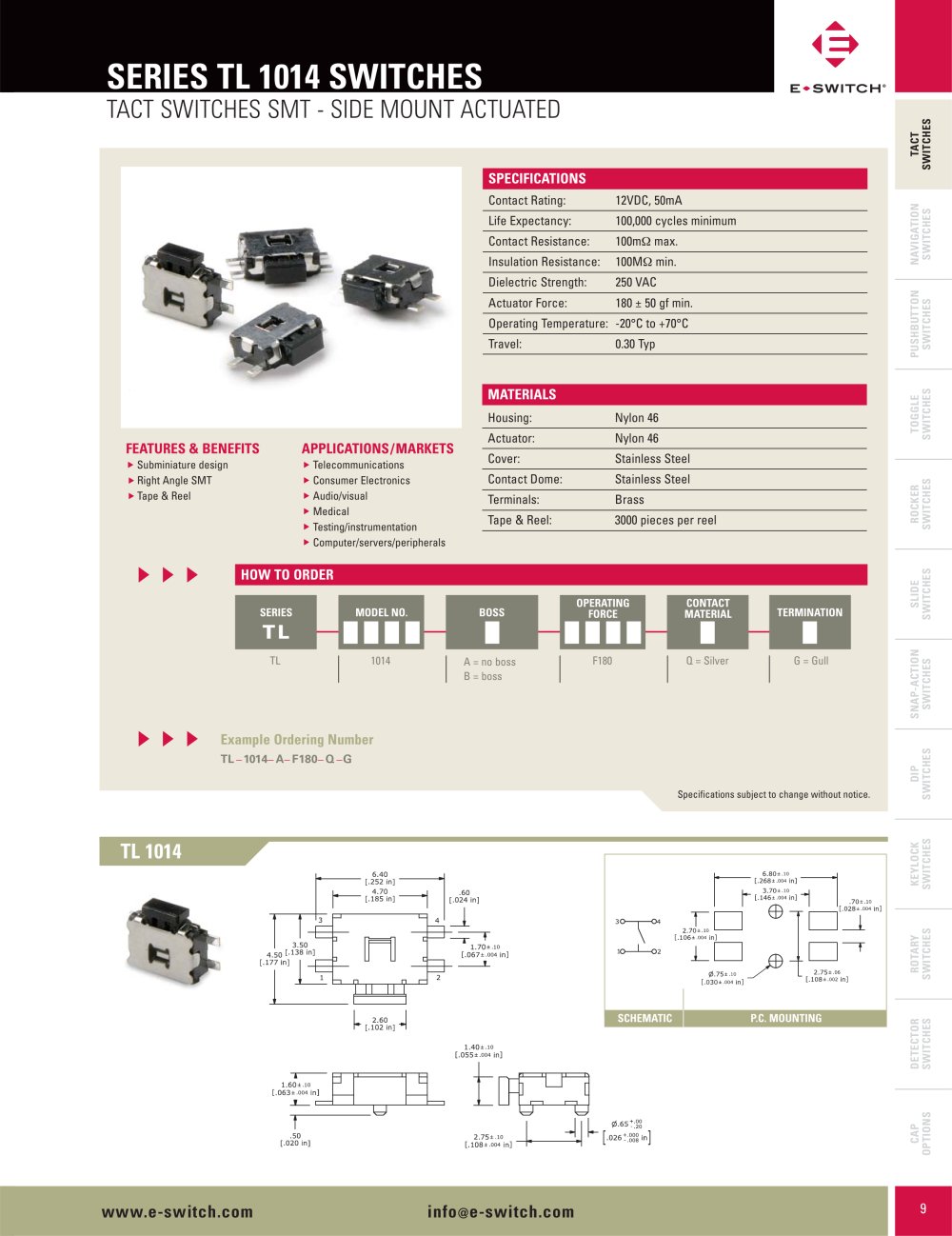

SERIES TL 1014 SWITCHES TACT SWITCHES SMT - SIDE MOUNT ACTUATED
TACTSWITCHESSPECIFICATIONS
Contact Rating: 12VDC, 50mA Life Expectancy: 100,000 cycles minimum Contact Resistance: 100m max. Insulation Resistance:100M min.NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Dielectric Strength: 250 VAC Actuator Force:180 ± 50 gf min. Operating Temperature:-20°C to +70°C Travel:0.30 Typ
MATERIALS
Housing:Nylon 46 Actuator:Nylon 46FEATURES & BENEFITS APPLICATIONS/MARKETS
Subminiature designRight Angle SMT Tape & Reel Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Cover:Stainless Steel Contact Dome: Stainless Steel Terminals:Brass Tape & Reel:3000 pieces per reel▲▲ ▲
