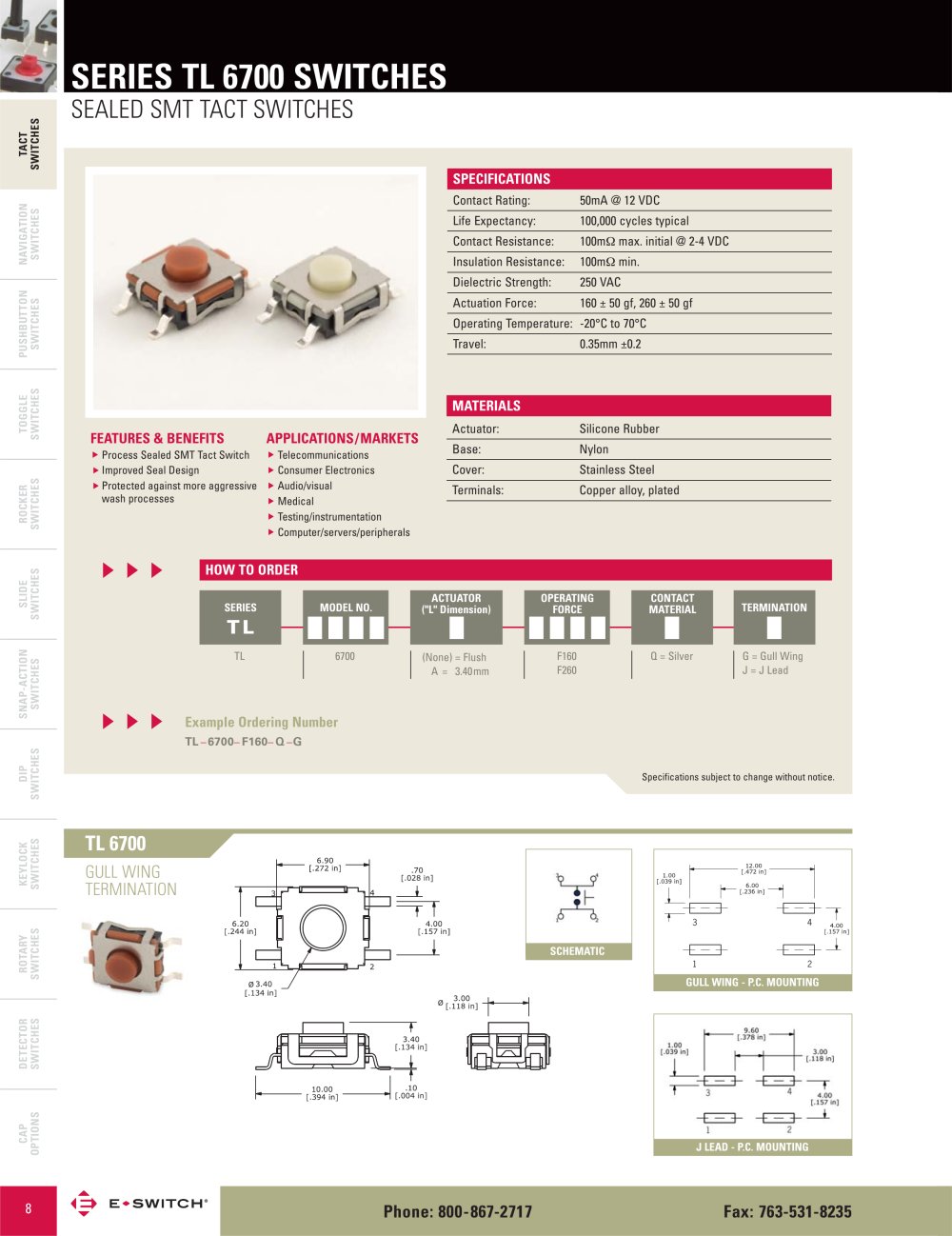

SERIES TL 6700 SWITCHES SEALED SMT TACT SWITCHES
TACTSWITCHESSPECIFICATIONS
Contact Rating: 50mA @ 12 VDC Life Expectancy: 100,000 cycles typical Contact Resistance: 100m max. initial @ 2-4 VDCNAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100m min. Dielectric Strength: 250 VAC Actuation Force: 160 ± 50 gf, 260 ± 50 gf Operating Temperature:-20°C to 70°C Travel:0.35mm ±0.2
MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS
Actuator:Silicone RubberProcess Sealed SMT Tact SwitchImproved Seal DesignProtected against more aggressivewash processes TelecommunicationsConsumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Base:Nylon Cover:Stainless Steel Terminals:Copper alloy, plated
▲▲ ▲
