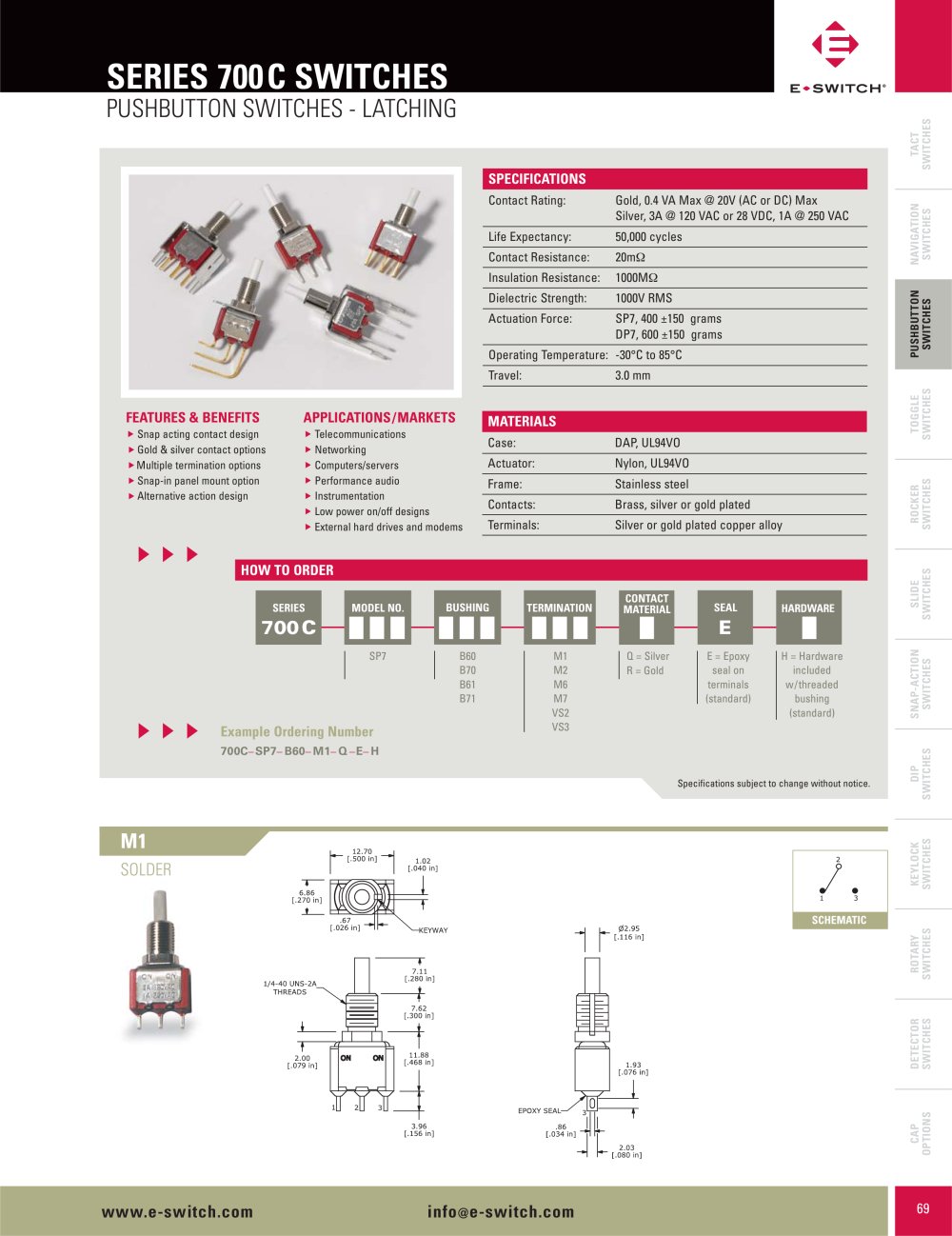

SERIES 700C SWITCHES PUSHBUTTON SWITCHES - LATCHING
TACTSWITCHESNAVIGATIONSWITCHESSPECIFICATIONS
Contact Rating:Gold, 0.4 VA Max @ 20V (AC or DC) Max Silver, 3A @ 120 VAC or 28 VDC, 1A @ 250 VAC Life Expectancy:50,000 cycles Contact Resistance:20m Insulation Resistance:1000M Dielectric Strength:1000V RMSActuation Force:SP7, 400 ±150 grams DP7, 600 ±150 grams Operating Temperature:-30°C to 85°CPUSHBUTTONSWITCHES Travel:3.0 mm
APPLICATIONS/MARKETS MATERIALS
Snap acting contact designGold & silver contact optionsMultiple termination optionsSnap-in panel mount option Alternative action design Telecommunications Networking Computers/servers Performance audio Instrumentation Low power on/off designsExternal hard drives and modems TOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Case:DAP, UL94VO Actuator:Nylon, UL94VO Frame:Stainless steel Contacts:Brass, silver or gold plated Terminals:Silver or gold plated copper alloy▲▲ ▲▲▲ ▲
