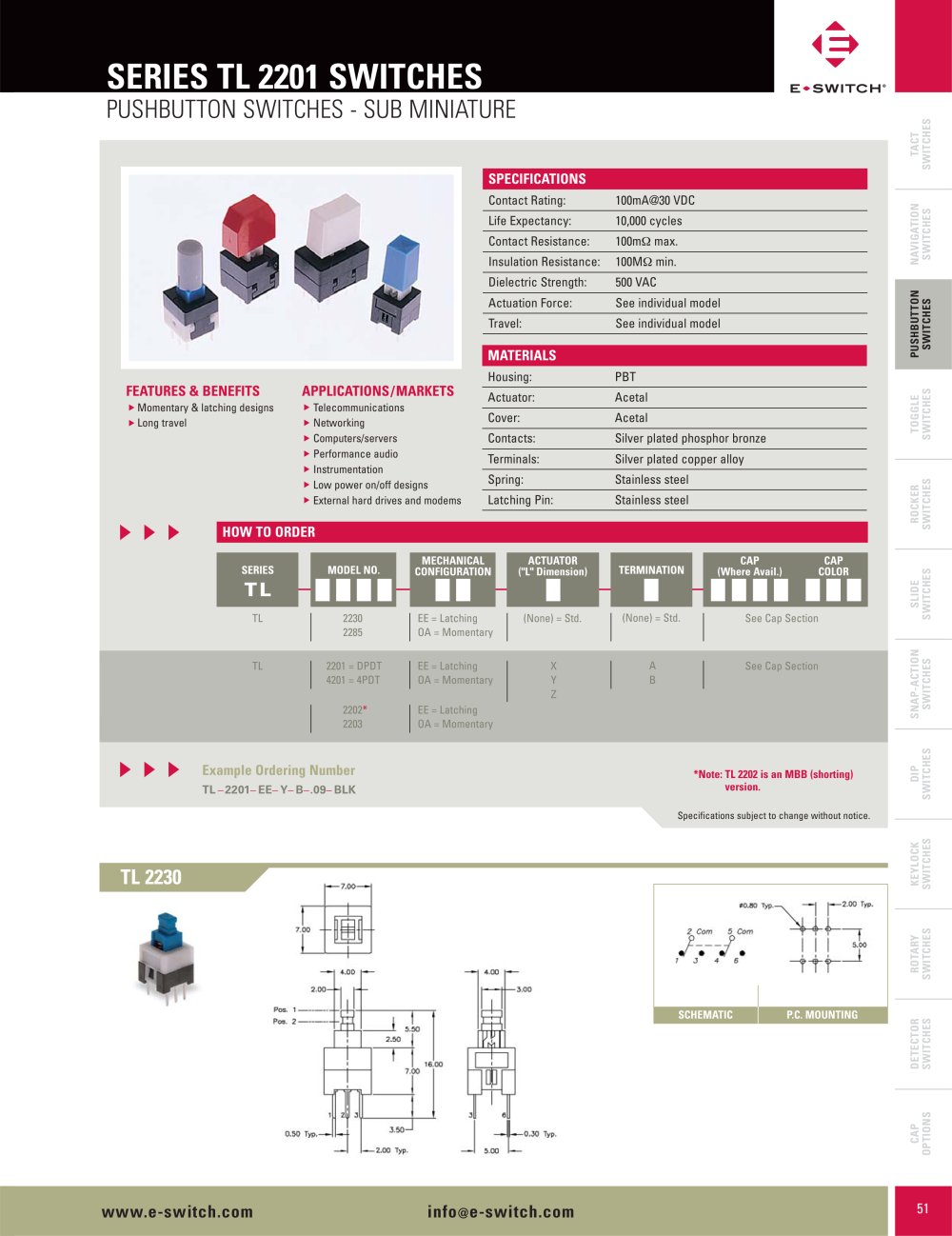

SERIES TL 2201 SWITCHES PUSHBUTTON SWITCHES - SUB MINIATURE

TACTSWITCHESNAVIGATIONSWITCHES

SPECIFICATIONS

Contact Rating:100mA@30 VDC Life Expectancy:10,000 cycles Contact Resistance:100m max. Insulation Resistance:100M min. Dielectric Strength:500 VAC Actuation Force:See individual model Travel:See individual model

MATERIALS

PUSHBUTTONSWITCHES Housing:PBT

FEATURES & BENEFITS APPLICATIONS/MARKETS

Actuator:Acetal
Momentary & latching designsLong travel Telecommunications Networking Computers/servers Performance audio Instrumentation Low power on/off designsExternal hard drives and modems Cover:Acetal Contacts: Silver plated phosphor bronze
TOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Terminals:Silver plated copper alloy Spring: Stainless steel Latching Pin:Stainless steel
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) CAP(Where Avail.)CAPCOLOR SERIESMECHANICALCONFIGURATIONTERMINATION MODEL NO.

TL

22302285EE = LatchingOA = MomentarySee Cap Section (None) = Std.TL (None) = Std. 2201 = DPDT4201 = 4PDTEE = LatchingOA = MomentarySee Cap Section XY ZTLAB2202*2203EE = LatchingOA = Momentary

Example Ordering Number

*Note: TL 2202 is an MBB (shorting)version. TL_2201_EE_Y_B_.09_BLK Specifications subject to change without notice.

TL 2230

SCHEMATICP.C. MOUNTING
