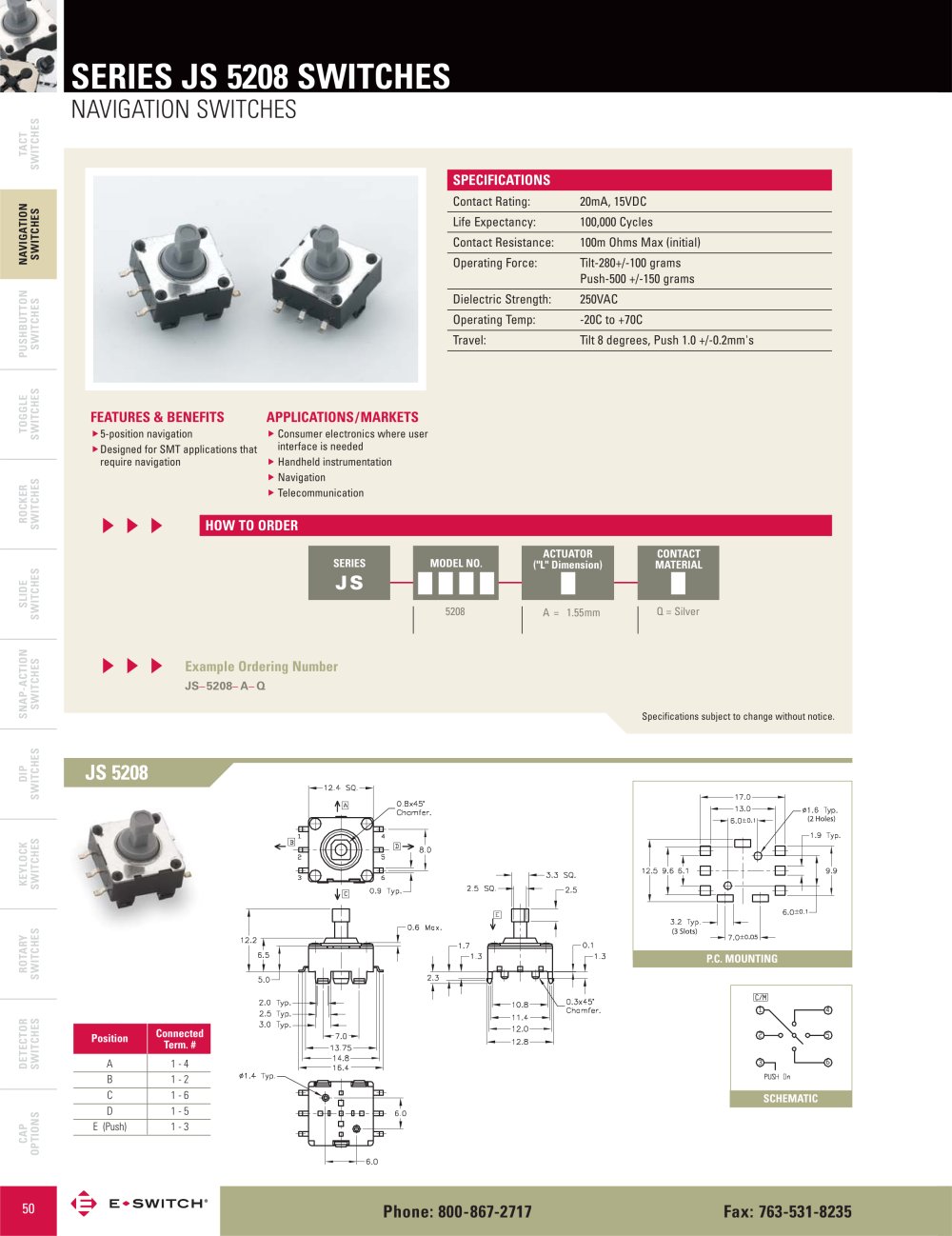

SERIES JS 5208 SWITCHES NAVIGATION SWITCHES

TACTSWITCHES

SPECIFICATIONS Contact Rating:20mA, 15VDC Life Expectancy:100,000 Cycles Contact Resistance:100m Ohms Max (initial)Operating Force:Tilt-280+/-100 grams

NAVIGATIONSWITCHES

Push-500 +/-150 grams Dielectric Strength:250VAC Operating Temp:-20C to +70C Travel:Tilt 8 degrees, Push 1.0 +/-0.2mm's

PUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS

FEATURES & BENEFITS APPLICATIONS/MARKETS

5-position navigationDesigned for SMT applications thatrequire navigation Consumer electronics where user interface is neededHandheld instrumentationNavigationTelecommunication
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) SERIESCONTACTMATERIAL MODEL NO.

JS

5208Q = Silver A=1.55mm

Example Ordering Number

JS_5208_A_Q

Specifications subject to change without notice.

JS 5208

P.C. MOUNTING PositionConnectedTerm. # A1 - 4B1 - 2C1 - 6D1 - 5E (Push)1 - 3 SCHEMATIC
