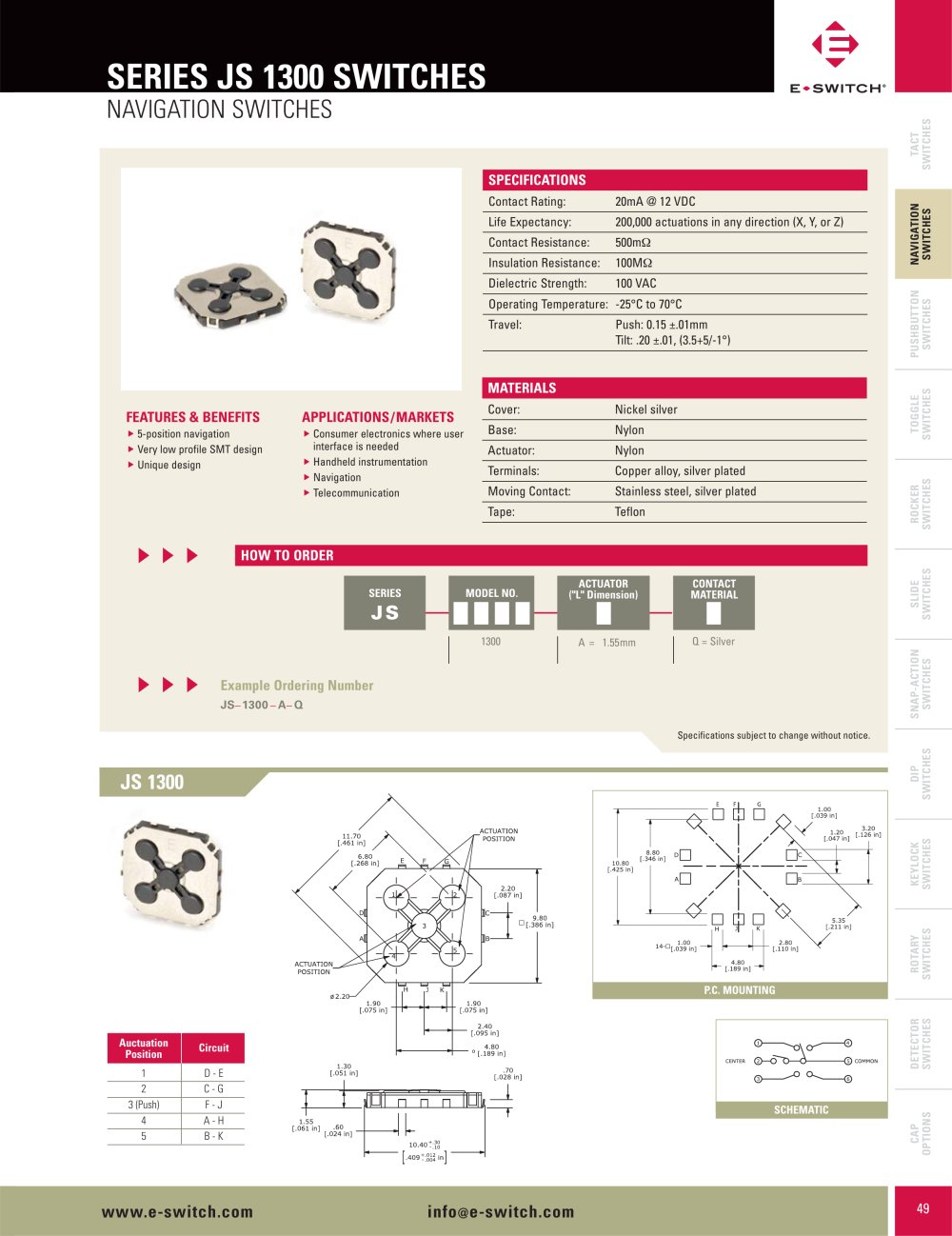

SERIES JS 1300 SWITCHES NAVIGATION SWITCHES
TACTSWITCHESSPECIFICATIONS
Contact Rating:20mA @ 12 VDC Life Expectancy:200,000 actuations in any direction (X, Y, or Z) Contact Resistance:500m Insulation Resistance:100MNAVIGATIONSWITCHES Dielectric Strength:100 VAC Operating Temperature:-25°C to 70°CTravel:Push: 0.15 ±.01mm Tilt: .20 ±.01, (3.5+5/-1°)
PUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS
MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS
Cover:Nickel silver5-position navigationVery low profile SMT design Unique design Consumer electronics where userinterface is neededHandheld instrumentationNavigationTelecommunication Base:Nylon Actuator:Nylon Terminals:Copper alloy, silver plated Moving Contact:Stainless steel, silver plated Tape:Teflon
▲▲ ▲▲▲ ▲
