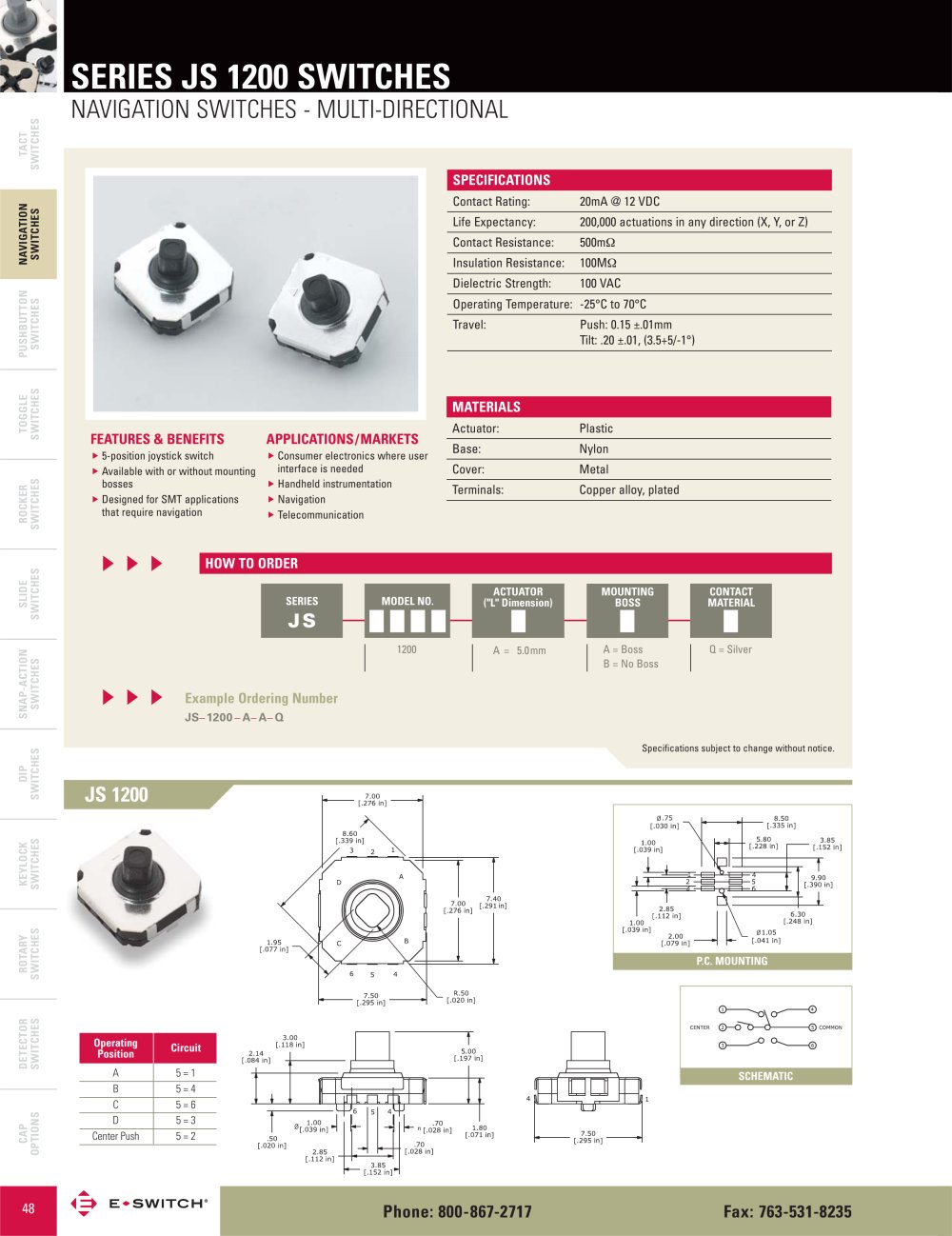

SERIES JS 1200 SWITCHES NAVIGATION SWITCHES - MULTI-DIRECTIONAL

TACTSWITCHES

SPECIFICATIONS Contact Rating:20mA @ 12 VDC Life Expectancy:200,000 actuations in any direction (X, Y, or Z) Contact Resistance:500m

NAVIGATIONSWITCHES

Insulation Resistance:100M Dielectric Strength:100 VAC Operating Temperature:-25°C to 70°CTravel:Push: 0.15 ±.01mm Tilt: .20 ±.01, (3.5+5/-1°)

PUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS

MATERIALS Actuator:Plastic FEATURES & BENEFITS APPLICATIONS/MARKETS

5-position joystick switchAvailable with or without mountingbossesDesigned for SMT applicationsthat require navigation Consumer electronics where user interface is neededHandheld instrumentationNavigationTelecommunication

Base:Nylon Cover:Metal Terminals:Copper alloy, plated

▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) MOUNTINGBOSS SERIESCONTACTMATERIAL MODEL NO.

JS

1200Q = Silver A=5.0mm A = BossB = No Boss

Example Ordering Number

JS_1200_A_A_Q

Specifications subject to change without notice.

JS 1200

P.C. MOUNTING OperatingCircuitPosition A 5 = 1B 5 = 4C 5 = 6D 5 = 3Center Push 5 = 2 SCHEMATIC

48

Phone: 800-867-2717Fax: 763-531-8235
