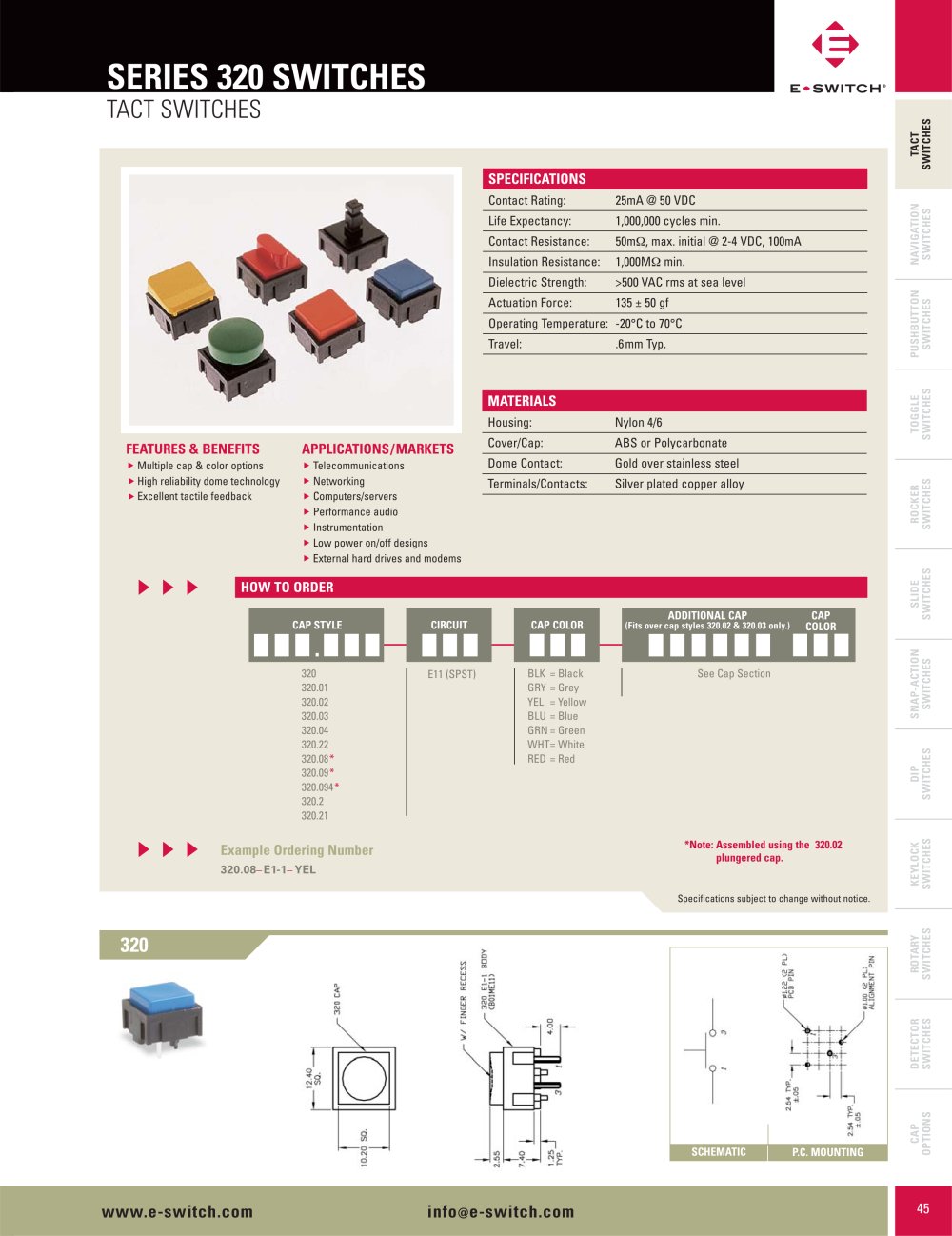

SERIES 320 SWITCHES

TACT SWITCHES

TACTSWITCHES

SPECIFICATIONS

Contact Rating:25mA @ 50 VDC Life Expectancy:1,000,000 cycles min. Contact Resistance:50m , max. initial @ 2-4 VDC, 100mA Insulation Resistance:1,000M min.
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Dielectric Strength:>500 VAC rms at sea level Actuation Force:135 ± 50 gf Operating Temperature:-20°C to 70°C Travel:.6mm Typ.
ADDITIONAL CAP

MATERIALS MATERIALS

Housing:Nylon 4/6

FEATURES & BENEFITS APPLICATIONS/MARKETS

Cover/Cap:ABS or Polycarbonate
Multiple cap & color optionsHigh reliability dome technology Excellent tactile feedback Telecommunications Networking Computers/servers Performance audio Instrumentation Low power on/off designsExternal hard drives and modems Dome Contact:Gold over stainless steel Terminals/Contacts:Silver plated copper alloy
▲▲ ▲▲▲ ▲

HOW TO ORDER

CAPCOLOR CAP STYLE CIRCUIT CAP COLOR (Fits over cap styles 320.02 & 320.03 only.)

.

320320.01 320.02 320.03 320.04 320.22 320.08*320.09*320.094*320.2 320.21 BLK=BlackGRY= Grey YEL=Yellow BLU=Blue GRN=GreenWHT=WhiteRED=RedSee Cap Section E11 (SPST)

Example Ordering Number

*Note: Assembled using the 320.02plungered cap. 320.08_E1-1_YEL Specifications subject to change without notice.
