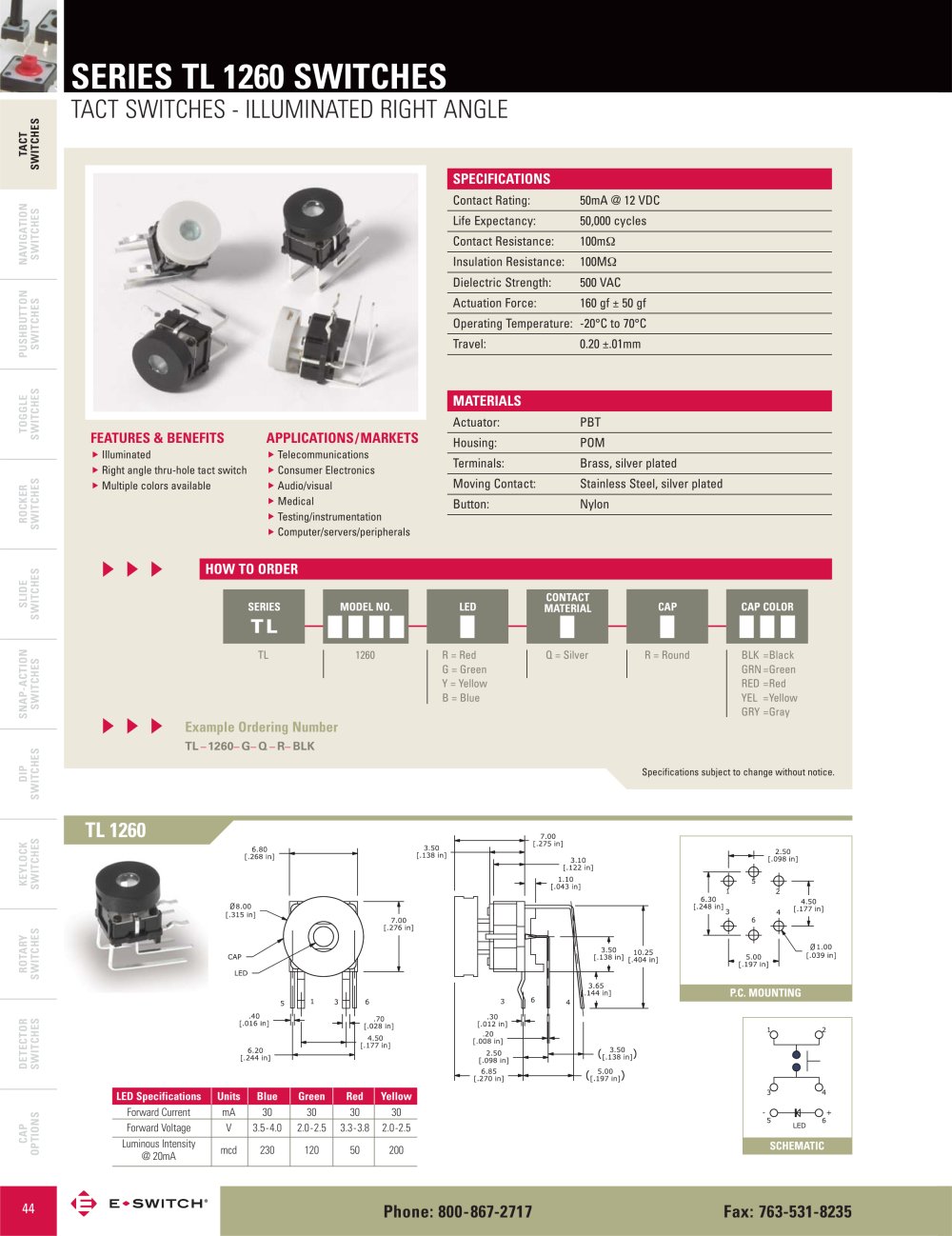

SERIES TL 1260 SWITCHES TACT SWITCHES - ILLUMINATED RIGHT ANGLE
TACTSWITCHESSPECIFICATIONS Contact Rating: 50mA @ 12 VDC Life Expectancy: 50,000 cycles Contact Resistance: 100m
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONSInsulation Resistance: 100M Dielectric Strength: 500 VAC Actuation Force:160 gf ± 50 gf Operating Temperature:-20°C to 70°C Travel:0.20 ±.01mm MATERIALS Actuator:PBT FEATURES & BENEFITS APPLICATIONS/MARKETS Housing:POM
IlluminatedRight angle thru-hole tact switch Multiple colors available Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripheralsTerminals:Brass, silver plated Moving Contact:Stainless Steel, silver plated Button:Nylon
▲▲ ▲HOW TO ORDER
SERIESCONTACTMATERIAL MODEL NO. LED CAPCAP COLORTL
TL 1260Q = Silver R = RedG = Green Y = Yellow B = Blue R = Round BLK=BlackGRN=Green RED=Red YEL=Yellow GRY=Gray▲▲ ▲
