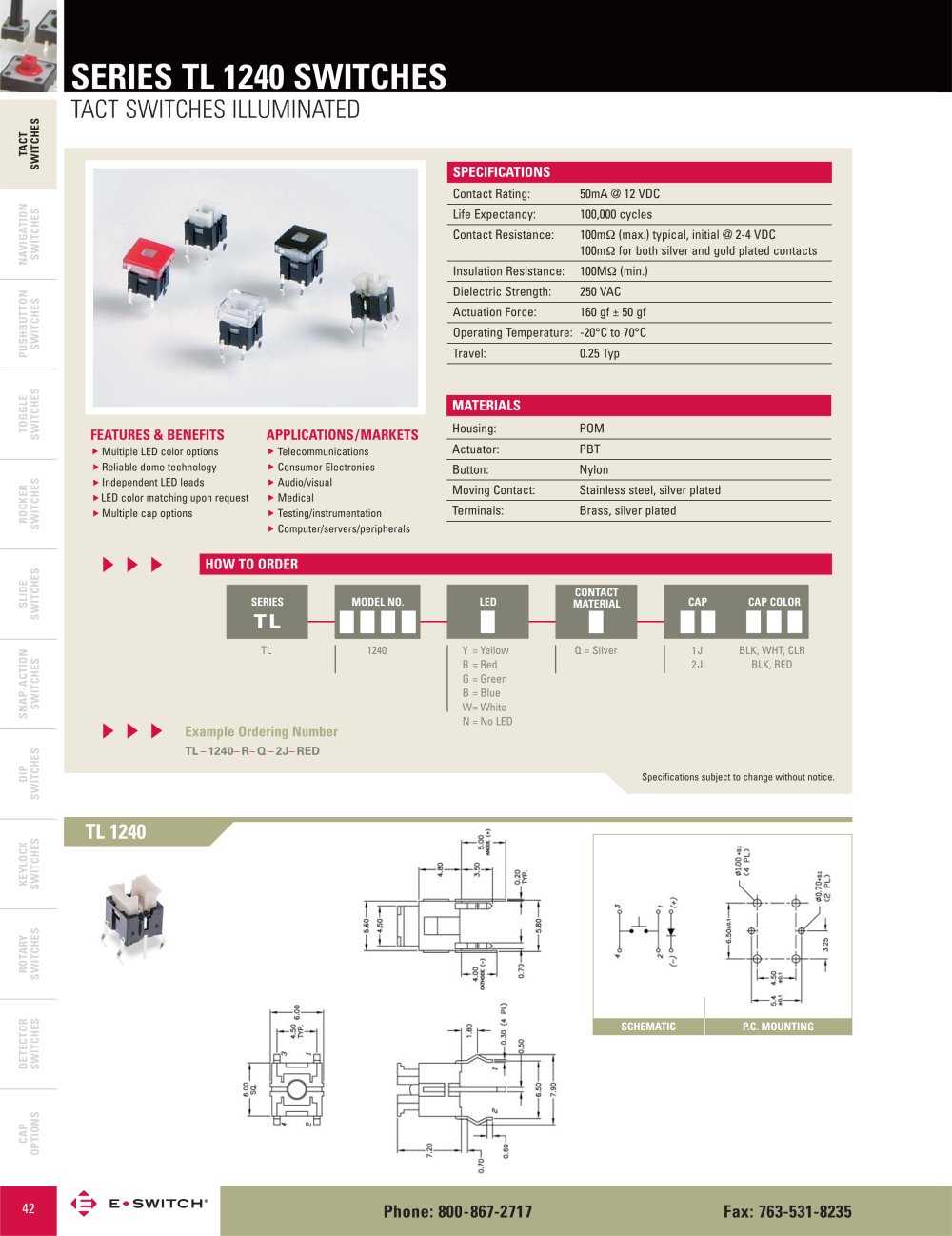

SERIES TL 1240 SWITCHES TACT SWITCHES ILLUMINATED

TACTSWITCHES

SPECIFICATIONS

Contact Rating: 50mA @ 12 VDC Life Expectancy: 100,000 cyclesContact Resistance: 100m (max.) typical, initial @ 2-4 VDC 100m for both silver and gold plated contacts
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance: 100M (min.) Dielectric Strength: 250 VAC Actuation Force:160 gf ± 50 gf Operating Temperature:-20°C to 70°C Travel:0.25 Typ

MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS

Housing:POM
Multiple LED color optionsReliable dome technology Independent LED leadsLED color matching upon requestMultiple cap options Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Actuator:PBT Button:Nylon Moving Contact:Stainless steel, silver plated Terminals:Brass, silver plated
▲▲ ▲

HOW TO ORDER

SERIESCONTACTMATERIAL MODEL NO. LED CAPCAP COLOR

TL

TL 1240Q = Silver Y=YellowR=Red G=Green B=Blue W=White N=No LED 1JBLK, WHT, CLR2JBLK, RED ▲▲ ▲

Example Ordering Number

TL_1240_R_Q_2J_RED Specifications subject to change without notice.

TL 1240

SCHEMATICP.C. MOUNTING
