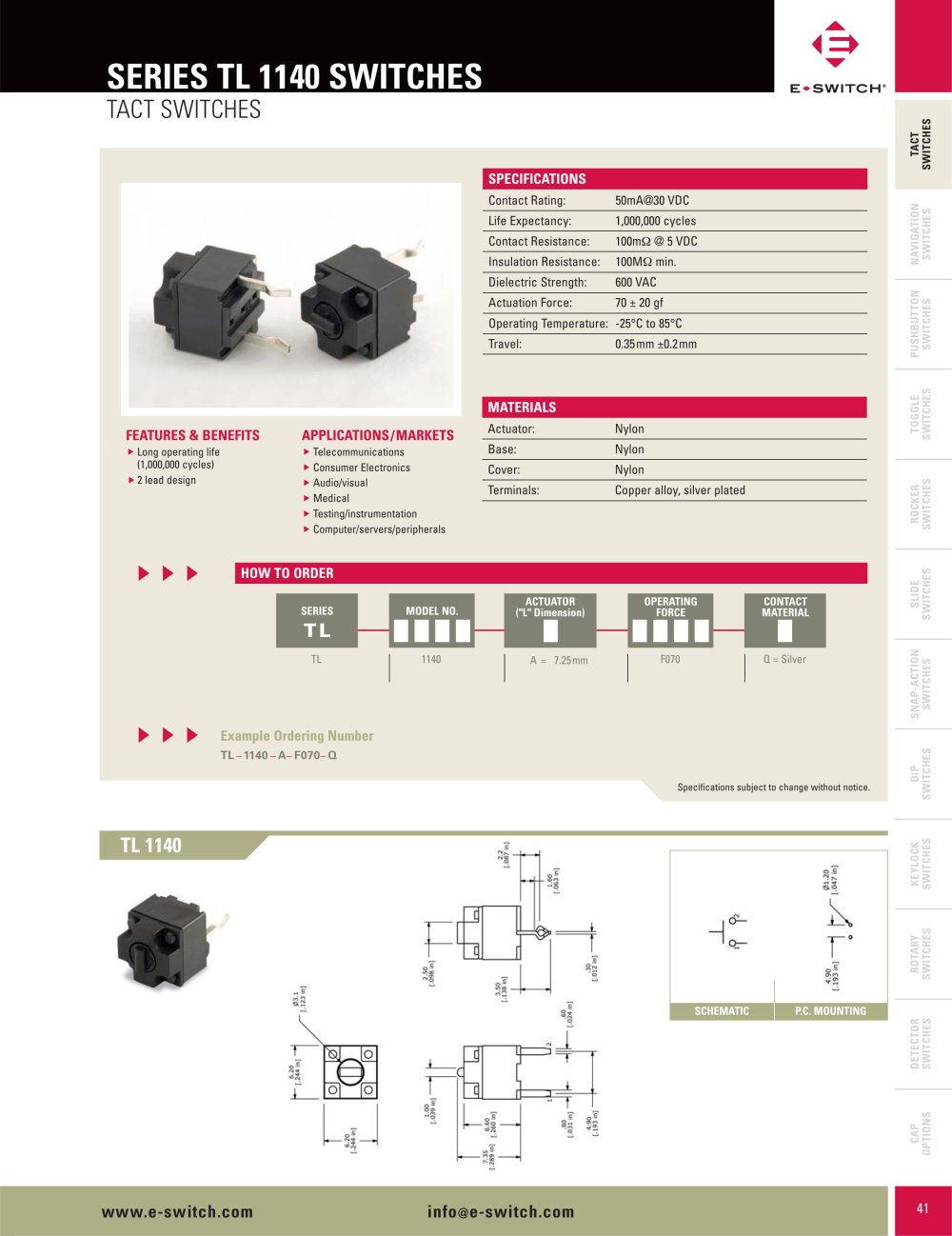

SERIES TL 1140 SWITCHES TACT SWITCHES
TACTSWITCHESSPECIFICATIONS
Contact Rating:50mA@30 VDC Life Expectancy:1,000,000 cycles Contact Resistance:100m @ 5 VDC Insulation Resistance:100M min.NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Dielectric Strength:600 VAC Actuation Force:70 ± 20 gf Operating Temperature:-25°C to 85°C Travel:0.35mm ±0.2mm
MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS
Actuator:NylonLong operating life (1,000,000 cycles)2 lead design Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Base:Nylon Cover:Nylon Terminals:Copper alloy, silver plated
▲▲ ▲▲▲ ▲
