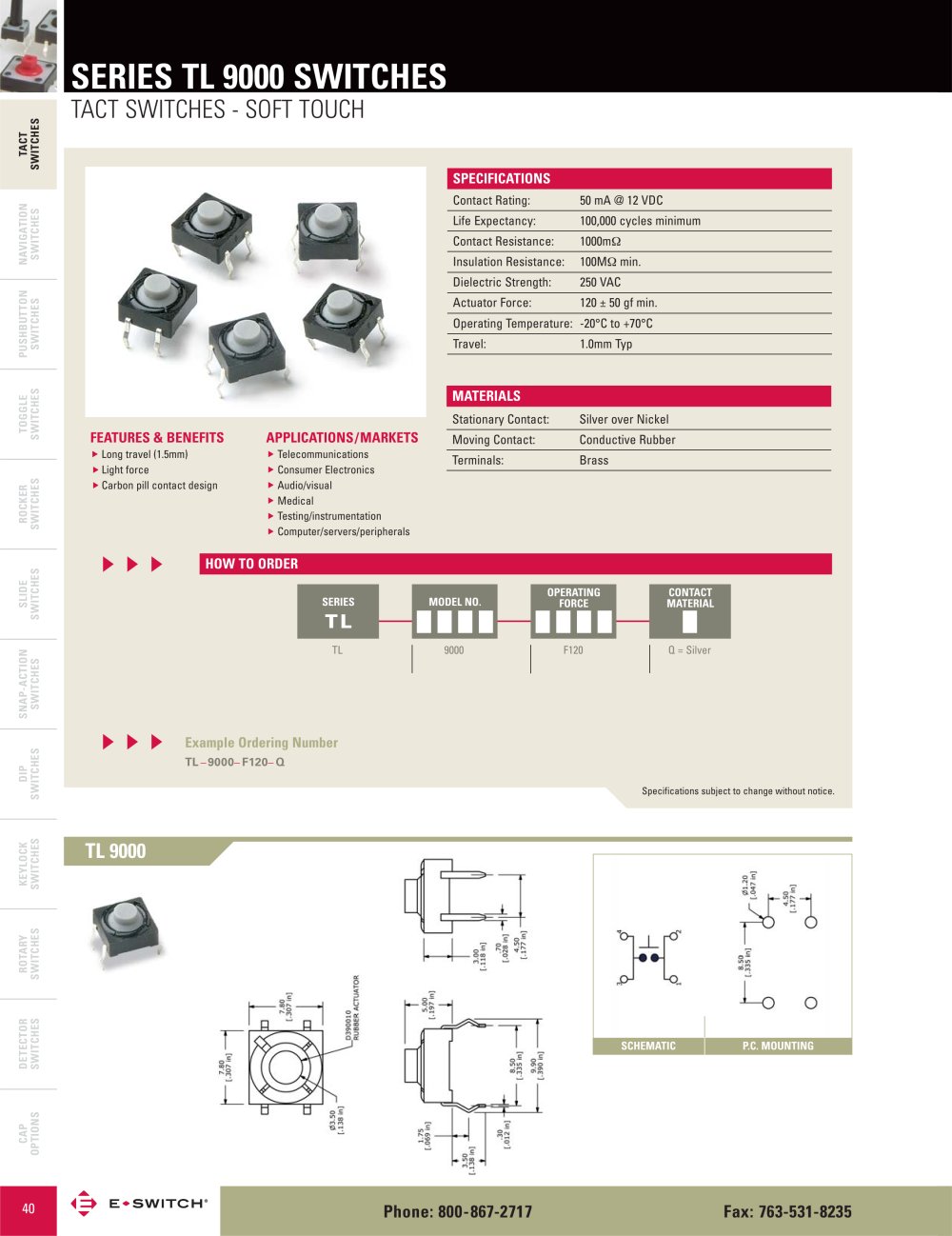

SERIES TL 9000 SWITCHES TACT SWITCHES - SOFT TOUCH
TACTSWITCHESSPECIFICATIONS
Contact Rating: 50 mA @ 12 VDC Life Expectancy: 100,000 cycles minimum Contact Resistance: 1000mNAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100M min. Dielectric Strength: 250 VAC Actuator Force:120 ± 50 gf min. Operating Temperature:-20°C to +70°C Travel:1.0mm Typ
MATERIALS
Stationary Contact:Silver over NickelFEATURES & BENEFITS APPLICATIONS/MARKETS
Moving Contact: Conductive RubberLong travel (1.5mm)Light force Carbon pill contact design Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Terminals:Brass
▲▲ ▲
