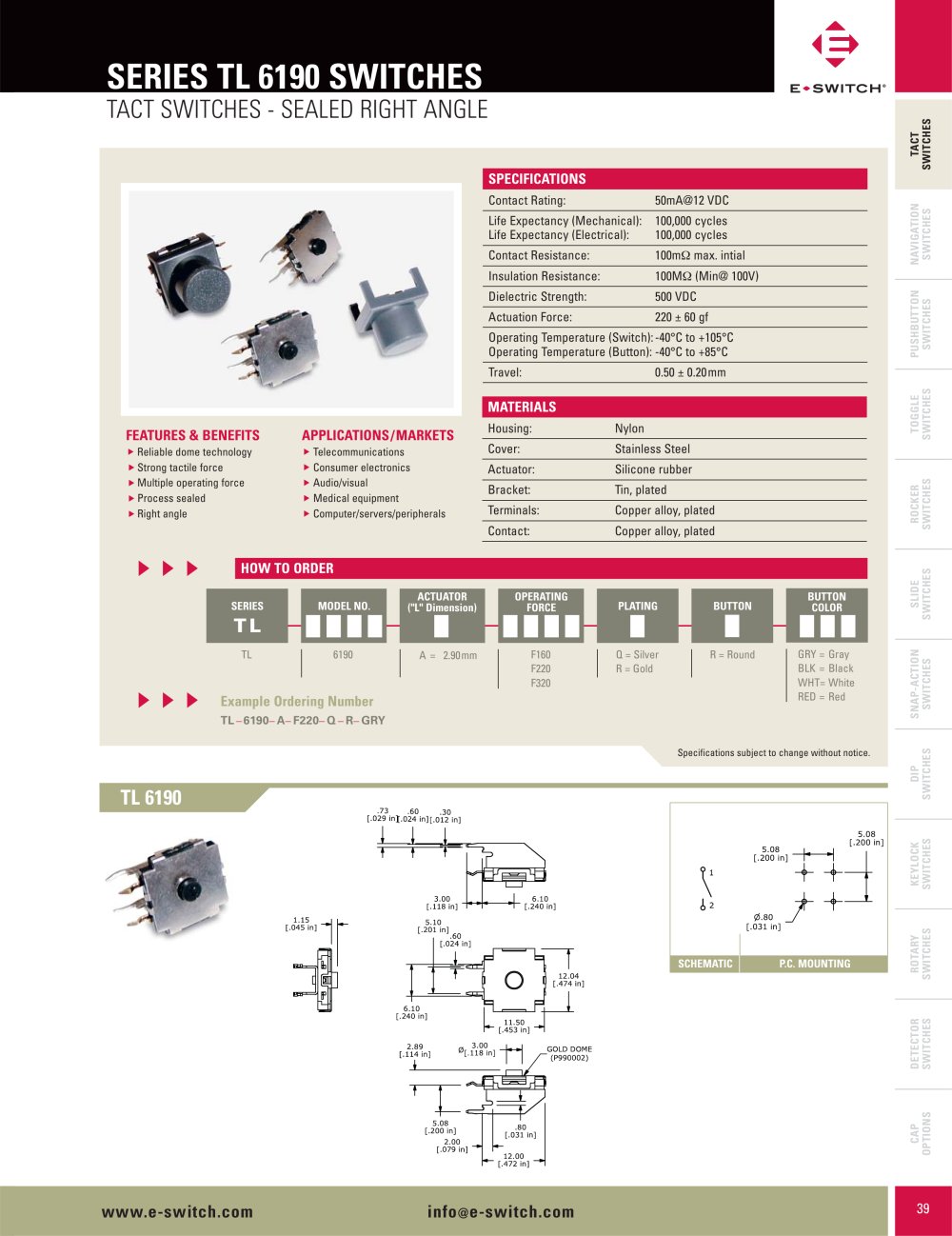

SERIES TL 6190 SWITCHES TACT SWITCHES - SEALED RIGHT ANGLE

TACTSWITCHES

SPECIFICATIONS

Contact Rating:50mA@12 VDCLife Expectancy (Mechanical):100,000 cycles Life Expectancy (Electrical):100,000 cycles Contact Resistance:100m max. intial
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100M (Min@ 100V) Dielectric Strength:500 VDC Actuation Force:220 ± 60 gfOperating Temperature (Switch):-40°C to +105°C Operating Temperature (Button):-40°C to +85°C Travel:0.50 ± 0.20mm

MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS

Housing:Nylon
Reliable dome technologyStrong tactile force Multiple operating force Process sealed Right angle Telecommunications Consumer electronics Audio/visual Medical equipment Computer/servers/peripherals Cover:Stainless Steel Actuator:Silicone rubber Bracket:Tin, plated Terminals:Copper alloy, plated Contact:Copper alloy, plated
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) BUTTONCOLOR SERIESOPERATINGFORCEPLATING MODEL NO. BUTTON

TL

TL 6190F160F220 F320Q = SilverR = Gold A=2.90mm R = Round GRY=GrayBLK=BlackWHT=White RED=Red

Example Ordering Number

TL_6190_A_F220_Q_R_GRY Specifications subject to change without notice.

TL 6190

SCHEMATICP.C. MOUNTING
