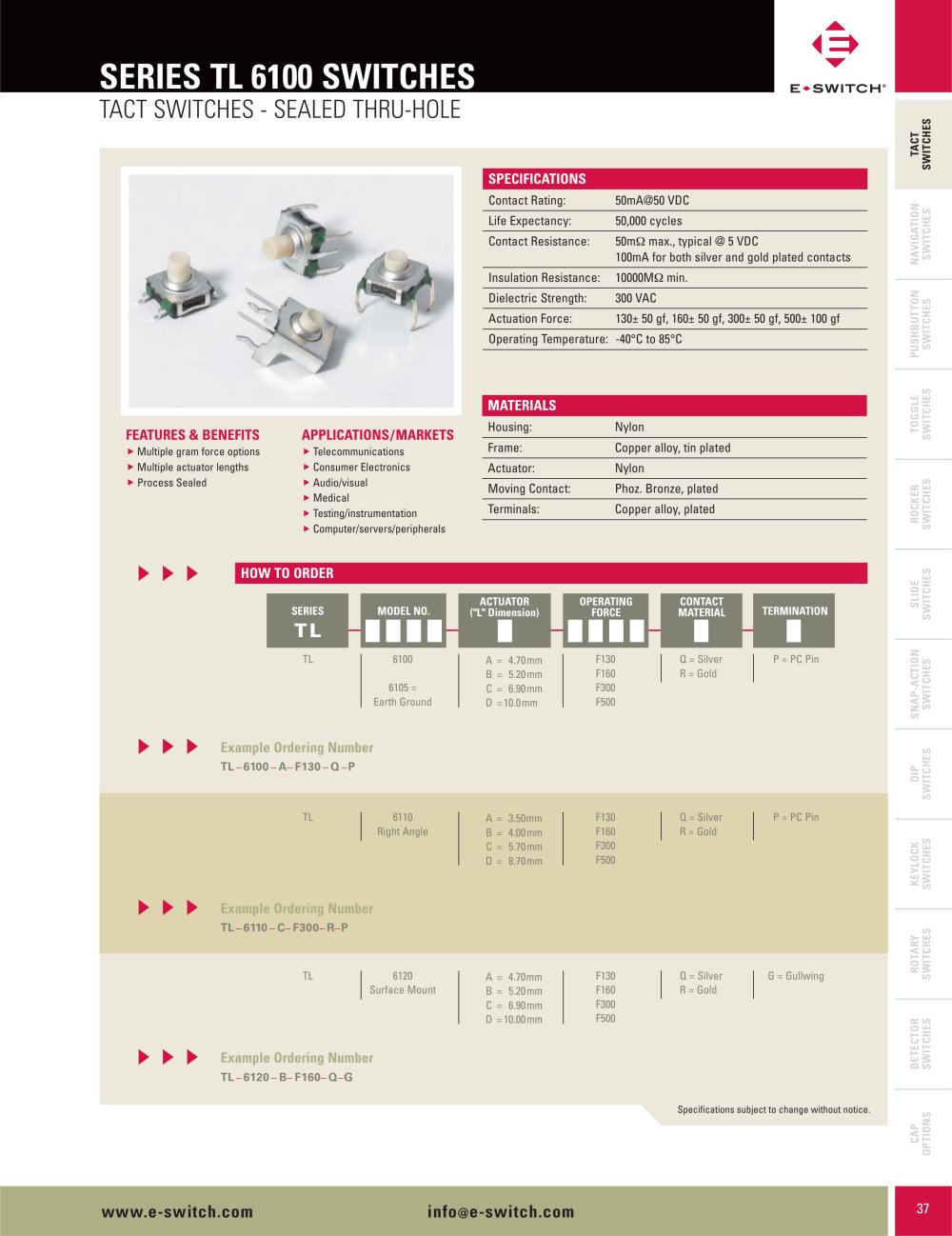

SERIES TL 6100 SWITCHES

TACT SWITCHES - SEALED THRU-HOLE

TACTSWITCHES

SPECIFICATIONS

Contact Rating:50mA@50 VDC Life Expectancy:50,000 cyclesContact Resistance:50m max., typical @ 5 VDC 100mA for both silver and gold plated contacts
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:10000M min. Dielectric Strength:300 VAC Actuation Force:130± 50 gf, 160± 50 gf, 300± 50 gf, 500± 100 gf Operating Temperature:-40°C to 85°C

MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS

Housing:Nylon
Multiple gram force optionsMultiple actuator lengths Process Sealed Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Frame:Copper alloy, tin plated Actuator:Nylon Moving Contact:Phoz. Bronze, plated Terminals:Copper alloy, plated
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) SERIESOPERATINGFORCECONTACTMATERIAL MODEL NO. TERMINATION

TL

TL 6110Right AngleF130F160 F300 F500Q = SilverR = GoldP = PC Pin 61006105 =Earth GroundF130F160 F300 F500Q = SilverR = GoldP = PC Pin A=4.70mmB=5.20mmC=6.90mmD=10.0mm

Example Ordering Number

TL_6100_A_F130_Q_P A=3.50mmB=4.00mmC=5.70mmD=8.70mmTL ▲▲ ▲

Example Ordering Number

TL_6110_C_F300_R_P 6120Surface MountF130F160 F300 F500Q = SilverR = GoldG = Gullwing A=4.70mmB=5.20mmC=6.90mmD=10.00mmTL ▲▲ ▲

Example Ordering Number

TL_6120_B_F160_Q_G Specifications subject to change without notice.
