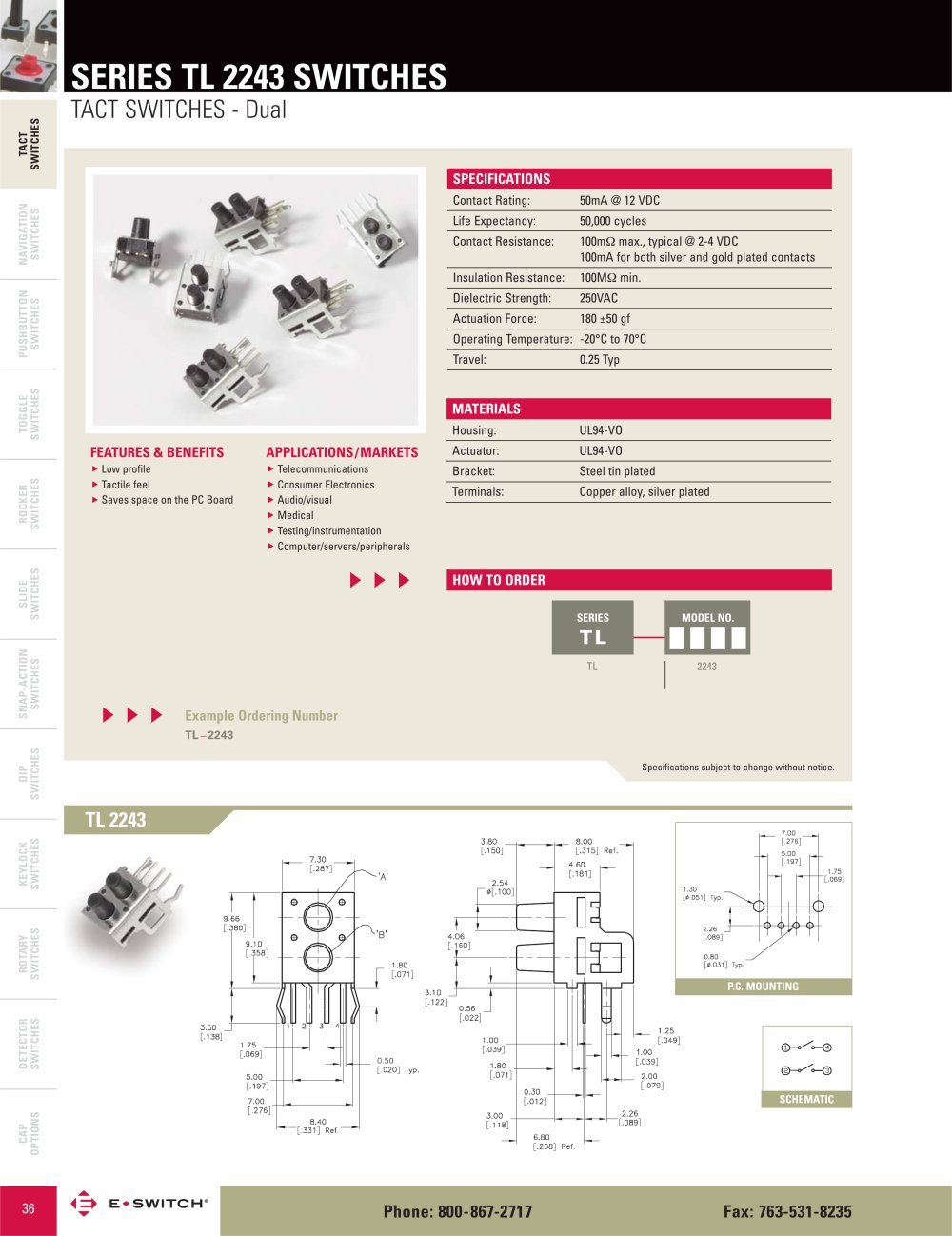

SERIES TL 2243 SWITCHES TACT SWITCHES - Dual
TACTSWITCHESSPECIFICATIONS
Contact Rating: 50mA @ 12 VDC Life Expectancy:50,000 cyclesContact Resistance:100m max., typical @ 2-4 VDCNAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS 100mA for both silver and gold plated contacts Insulation Resistance:100M min. Dielectric Strength:250VAC Actuation Force:180 ±50 gf Operating Temperature:-20°C to 70°C Travel:0.25 Typ
MATERIALS
Housing:UL94-VOFEATURES & BENEFITS APPLICATIONS/MARKETS
Actuator:UL94-VOLow profileTactile feel Saves space on the PC Board Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Bracket:Steel tin plated Terminals:Copper alloy, silver plated
▲▲ ▲
