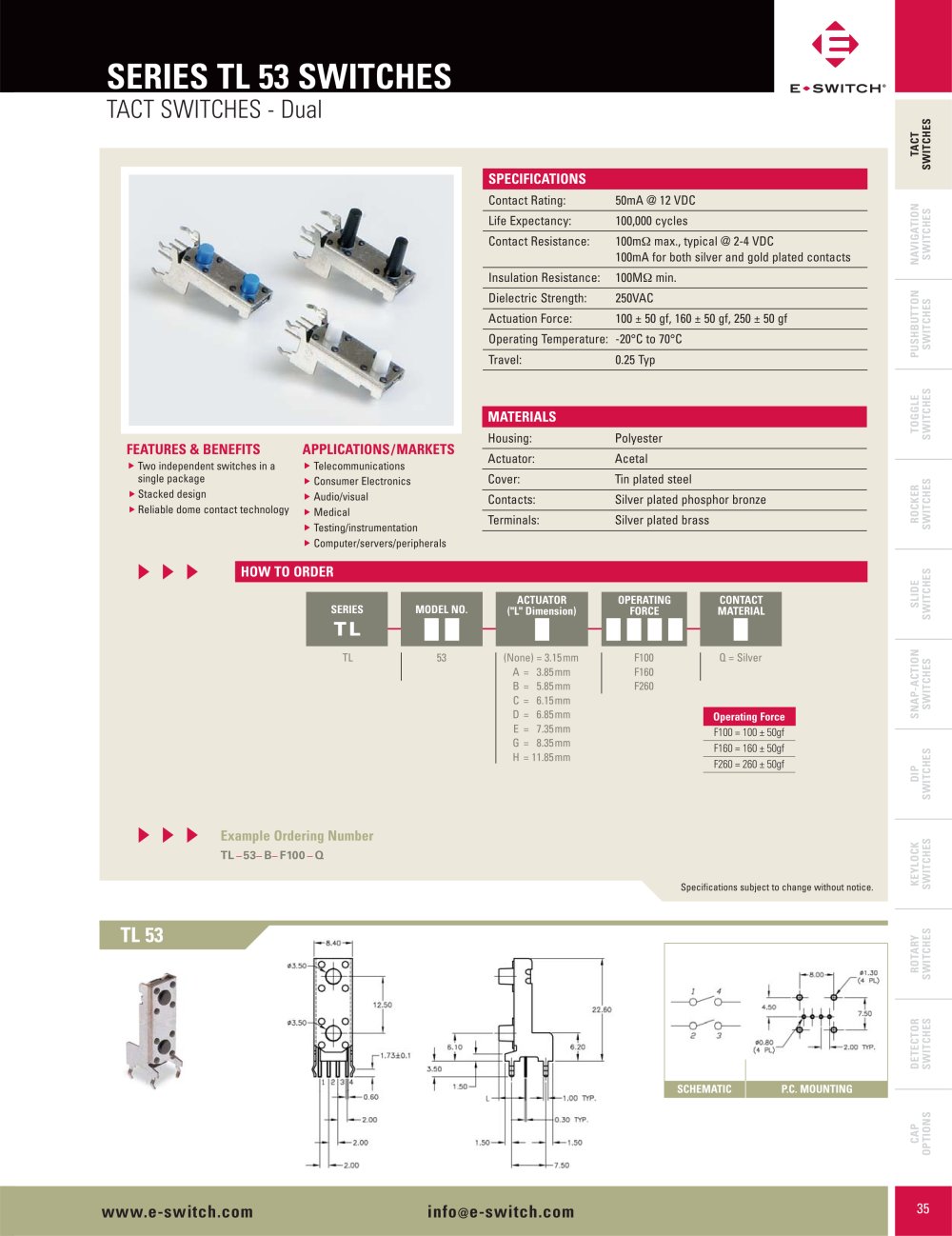

SERIES TL 53 SWITCHES TACT SWITCHES - Dual

TACTSWITCHES

SPECIFICATIONS

Contact Rating: 50mA @ 12 VDC Life Expectancy:100,000 cyclesContact Resistance:100m max., typical @ 2-4 VDC 100mA for both silver and gold plated contacts
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100M min. Dielectric Strength:250VAC Actuation Force:100 ± 50 gf, 160 ± 50 gf, 250 ± 50 gf Operating Temperature:-20°C to 70°C Travel:0.25 Typ

MATERIALS

Housing:Polyester

FEATURES & BENEFITS APPLICATIONS/MARKETS

Two independent switches in asingle packageStacked design Reliable dome contact technology Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Actuator:Acetal Cover:Tin plated steel Contacts: Silver plated phosphor bronze Terminals:Silver plated brass
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) SERIESOPERATINGFORCECONTACTMATERIAL MODEL NO.

TL

TL 53F100F160F260Q = Silver (None) = 3.15mmA=3.85mm B=5.85mmC=6.15mmD=6.85mmE=7.35mmG=8.35mm H=11.85mm Operating Force F100 = 100 ± 50gfF160 = 160 ± 50gf F260 = 260 ± 50gf

Example Ordering Number

TL_53_B_F100_Q Specifications subject to change without notice.

TL 53

SCHEMATICP.C. MOUNTING
