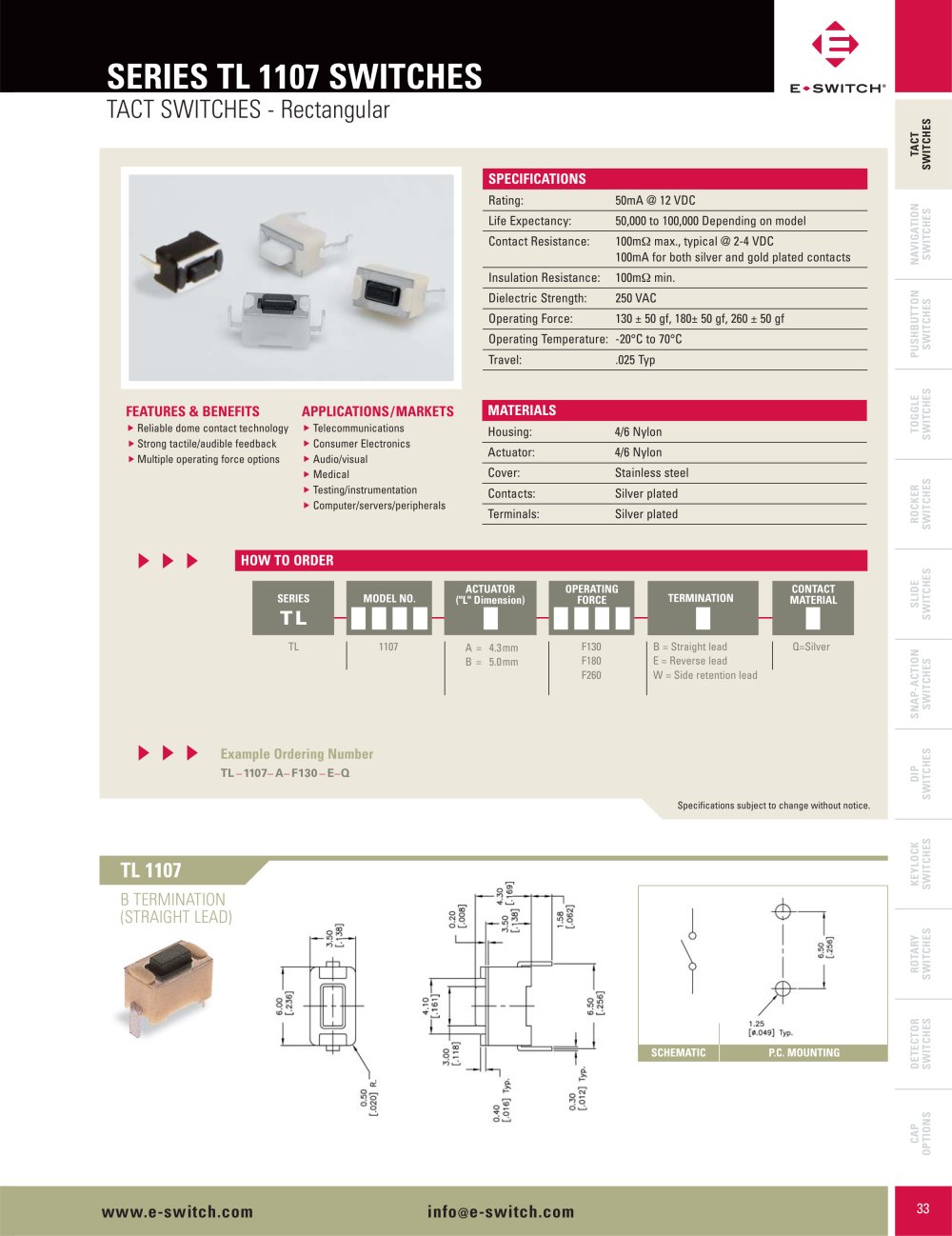

SERIES TL 1107 SWITCHES TACT SWITCHES - Rectangular

TACTSWITCHES

SPECIFICATIONS

Rating: 50mA @ 12 VDC Life Expectancy:50,000 to 100,000 Depending on modelContact Resistance:100m max., typical @ 2-4 VDC 100mA for both silver and gold plated contacts
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100m min. Dielectric Strength:250 VAC Operating Force:130 ± 50 gf, 180± 50 gf, 260 ± 50 gf Operating Temperature:-20°C to 70°C Travel:.025 Typ

FEATURES & BENEFITS APPLICATIONS/MARKETS MATERIALS

Reliable dome contact technologyStrong tactile/audible feedback Multiple operating force options Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Housing:4/6 Nylon Actuator:4/6 Nylon Cover:Stainless steel Contacts: Silver plated Terminals:Silver plated
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) TERMINATION CONTACTMATERIAL SERIESOPERATINGFORCE MODEL NO. TERMINATION

TL

TL 1107F130F180F260B = Straight leadE = Reverse leadW = Side retention leadQ=Silver A=4.3mmB=5.0mm

Example Ordering Number

TL_1107_A_F130_E_Q Specifications subject to change without notice.

TL 1107

B TERMINATION (STRAIGHT LEAD)

SCHEMATICP.C. MOUNTING
