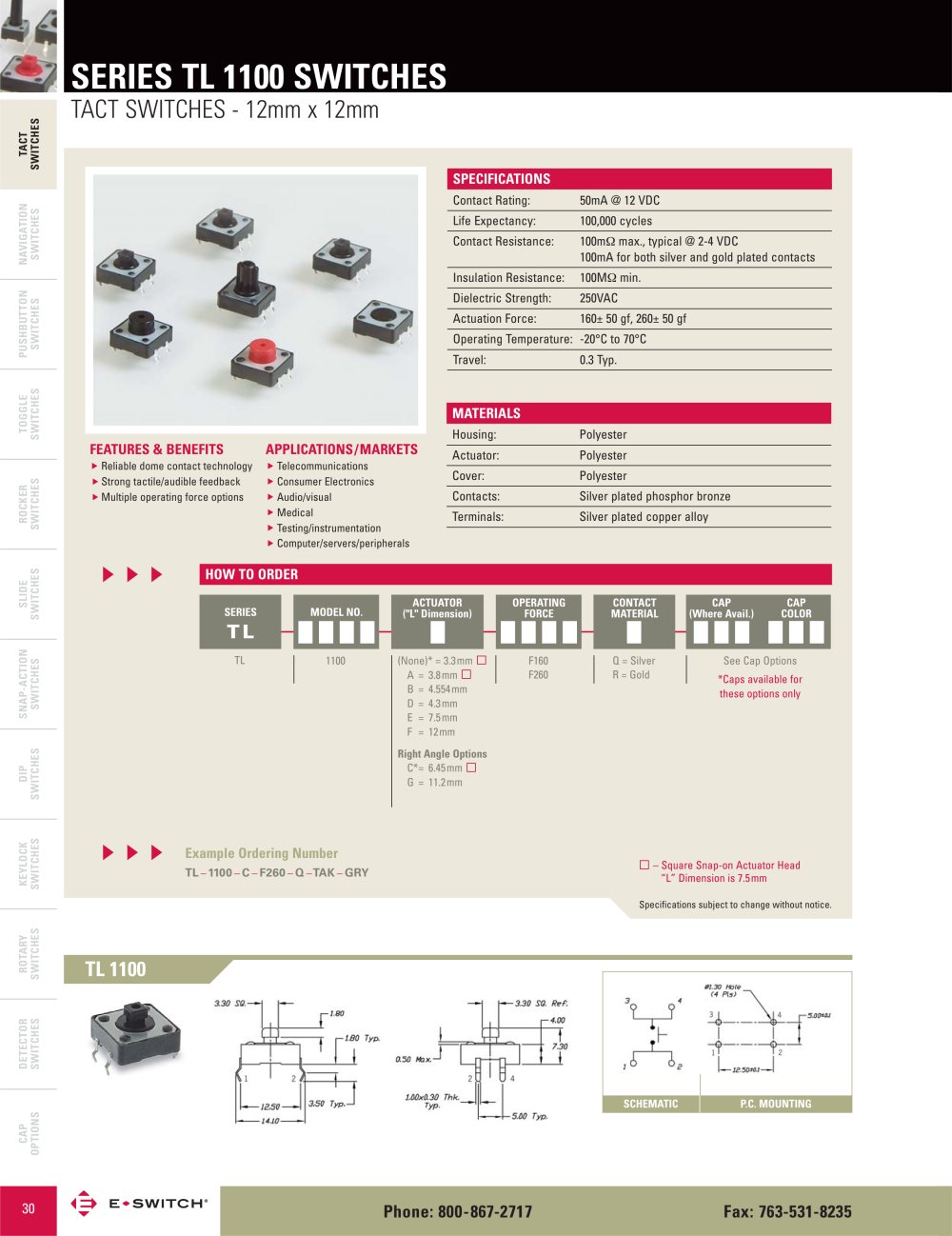

SERIES TL 1100 SWITCHES TACT SWITCHES - 12mm x 12mm

TACTSWITCHES

SPECIFICATIONS

Contact Rating:50mA @ 12 VDC Life Expectancy:100,000 cyclesContact Resistance:100m max., typical @ 2-4 VDC
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS 100mA for both silver and gold plated contacts Insulation Resistance:100M min. Dielectric Strength:250VAC Actuation Force:160± 50 gf, 260± 50 gf Operating Temperature:-20°C to 70°C Travel:0.3 Typ.

MATERIALS

Housing:Polyester

FEATURES & BENEFITS APPLICATIONS/MARKETS

Actuator:Polyester
Reliable dome contact technologyStrong tactile/audible feedback Multiple operating force options Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Cover:Polyester Contacts:Silver plated phosphor bronze Terminals:Silver plated copper alloy
▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) CAP(Where Avail.)CAPCOLOR SERIESOPERATINGFORCECONTACTMATERIAL MODEL NO.

TL

Right Angle Options TL – Square Snap-on Actuator Head“L” Dimension is 7.5mm 1100F160F260Q = SilverR = GoldSee Cap Options*Caps available forthese options only (None)* = 3.3mm A=3.8mm B=4.554mm D=4.3mm E=7.5mm F=12mm C*=6.45mm G=11.2mm ▲▲ â–²

Example Ordering Number

TL_1100_C_F260_Q_TAK_GRY Specifications subject to change without notice.

TL 1100

SCHEMATICP.C. MOUNTING
