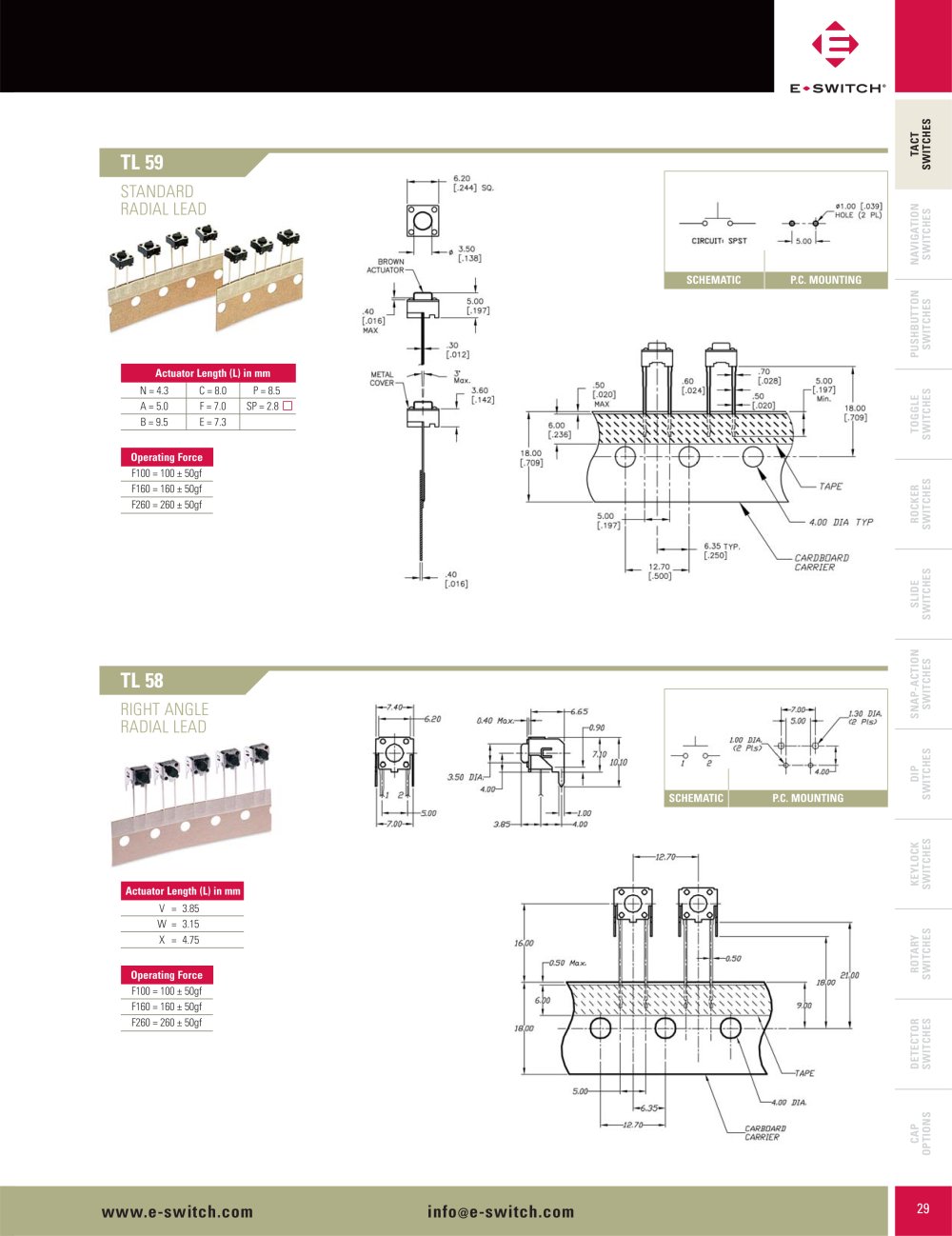

TL 59

TACTSWITCHES

STANDARDRADIAL LEAD

NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS SCHEMATICP.C. MOUNTING Actuator Length (L) in mm N = 4.3C = 8.0P = 8.5A = 5.0F = 7.0SP = 2.8 B = 9.5E = 7.3 Operating Force F100 = 100 ± 50gfF160 = 160 ± 50gfF260 = 260 ± 50gf

TL 58

RIGHT ANGLERADIAL LEAD

SCHEMATICP.C. MOUNTING Actuator Length (L) in mm V=3.85W=3.15X=4.75 Operating Force F100 = 100 ± 50gf F160 = 160 ± 50gf F260 = 260 ± 50gf
