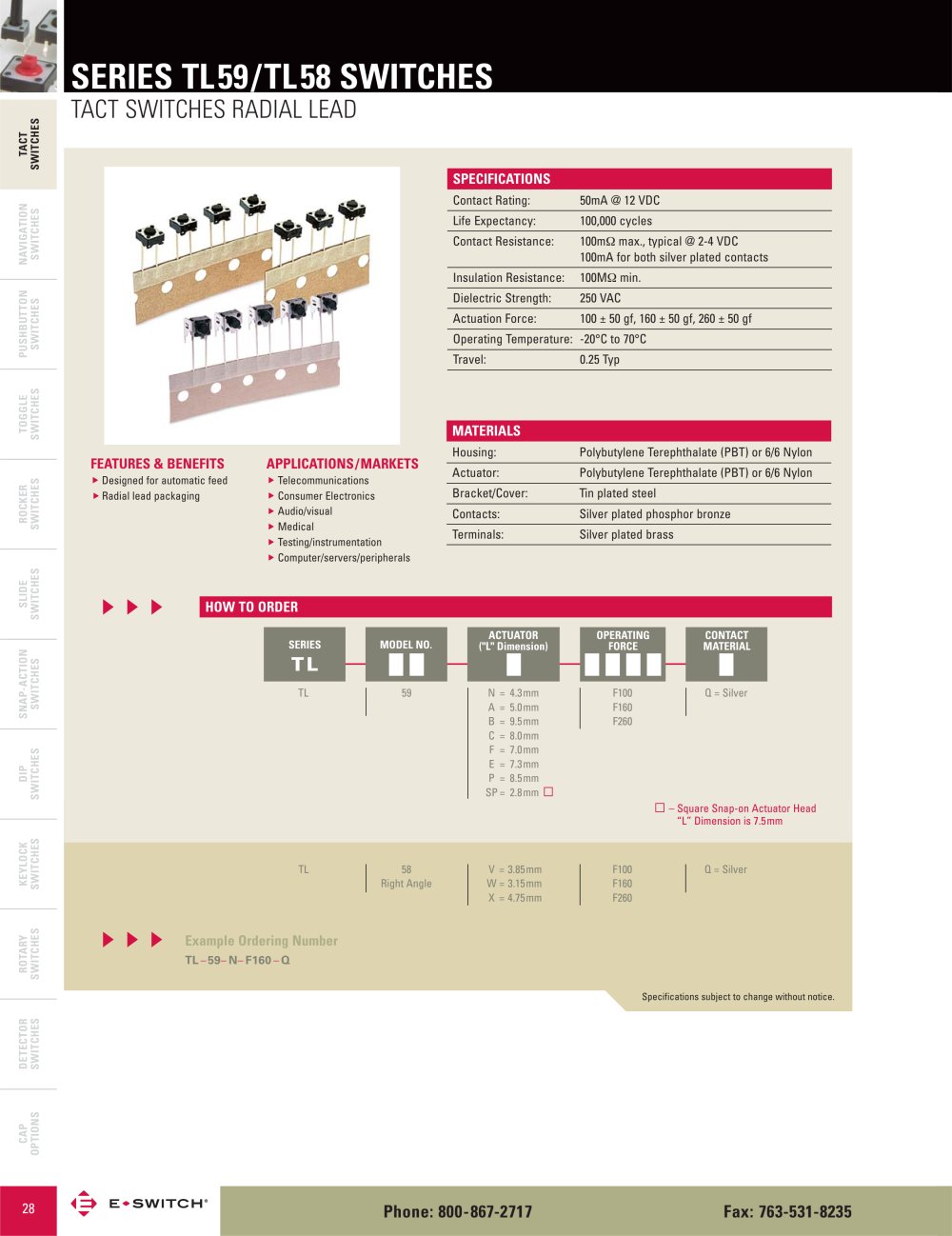

SERIES TL59/TL58 SWITCHES

TACT SWITCHES RADIAL LEAD

TACTSWITCHES

SPECIFICATIONS

Contact Rating: 50mA @ 12 VDC Life Expectancy:100,000 cyclesContact Resistance:100m max., typical @ 2-4 VDC
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS 100mA for both silver plated contacts Insulation Resistance:100M min. Dielectric Strength:250 VAC Actuation Force:100 ± 50 gf, 160 ± 50 gf, 260 ± 50 gf Operating Temperature:-20°C to 70°C Travel:0.25 Typ

MATERIALS

Housing:Polybutylene Terephthalate (PBT) or 6/6 Nylon

FEATURES & BENEFITS APPLICATIONS/MARKETS

Designed for automatic feed Radial lead packaging Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Actuator:Polybutylene Terephthalate (PBT) or 6/6 Nylon Bracket/Cover:Tin plated steel Contacts: Silver plated phosphor bronze Terminals:Silver plated brass
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) SERIESOPERATINGFORCECONTACTMATERIAL MODEL NO.

TL

59F100F160 F260Q = Silver N=4.3mmA=5.0mm B=9.5mmC=8.0mmF=7.0mmE=7.3mmP=8.5mmSP=2.8mm – Square Snap-on Actuator Head“L” Dimension is 7.5mm 58Right AngleF100F160 F260Q = Silver V=3.85mmW=3.15mmX=4.75mm TL TL

Example Ordering Number

TL_59_N_F160_Q Specifications subject to change without notice.

28
