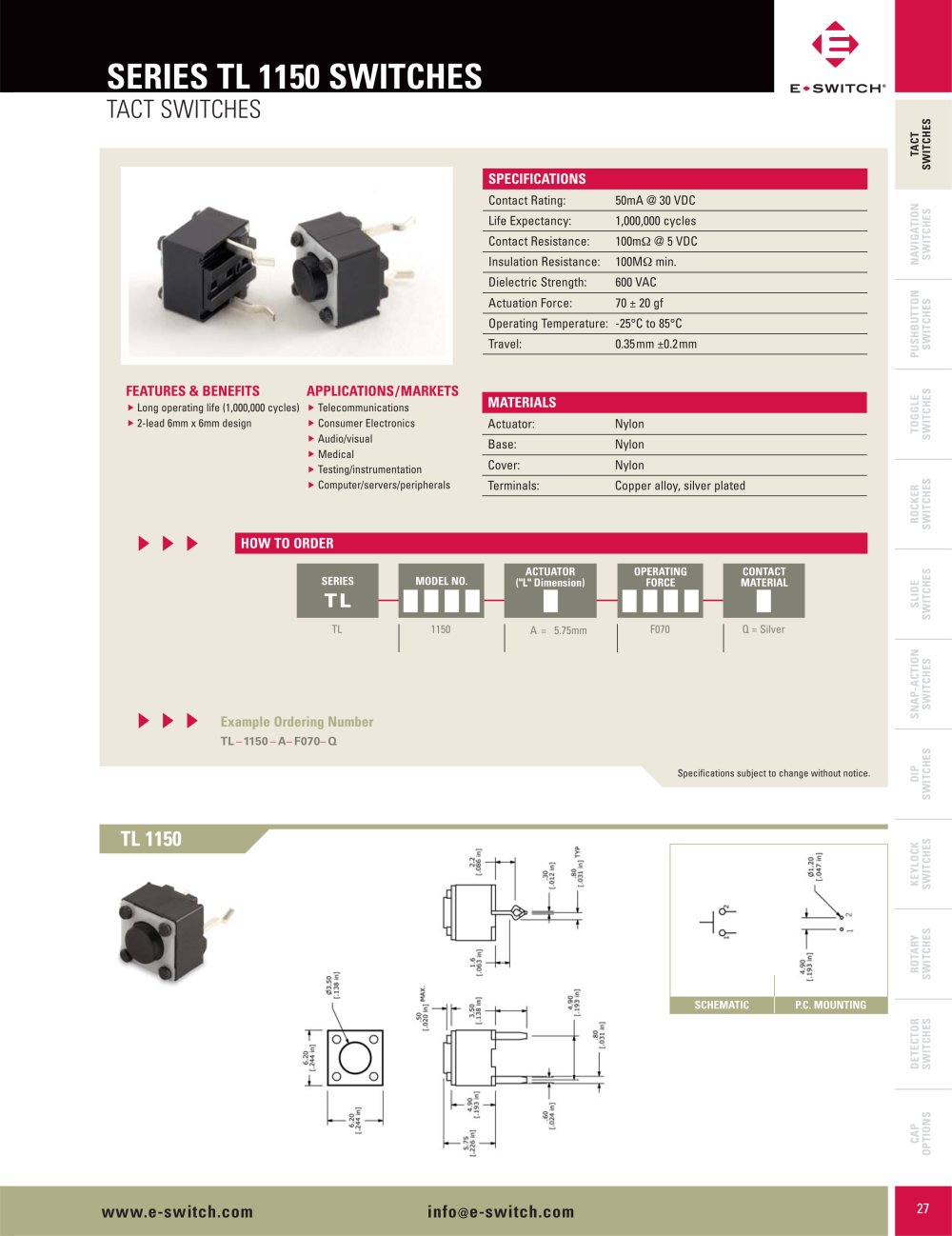

SERIES TL 1150 SWITCHES TACT SWITCHES
TACTSWITCHESSPECIFICATIONS
Contact Rating:50mA @ 30 VDC Life Expectancy:1,000,000 cycles Contact Resistance:100m @ 5 VDC Insulation Resistance:100M min.NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Dielectric Strength:600 VAC Actuation Force:70 ± 20 gf Operating Temperature:-25°C to 85°C Travel:0.35mm ±0.2mm
FEATURES & BENEFITS APPLICATIONS/MARKETS
Long operating life (1,000,000 cycles)2-lead 6mm x 6mm design Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripheralsMATERIALS
Actuator:Nylon Base:Nylon Cover:Nylon Terminals:Copper alloy, silver plated▲▲ ▲▲▲ ▲
